Fail-Safe Function: Notes

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

When the fail-safe function operate, it controls power steering solenoid valve by the engine speed as shown in the figure and maintains the steering force.

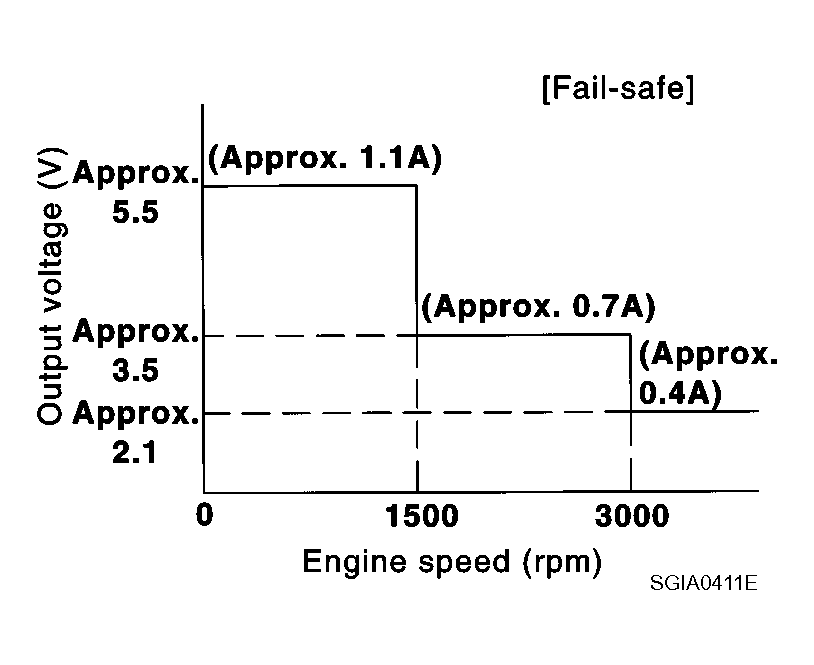

Fig 1: Fail-Safe Function Graph - Output Voltage To Engine Speed
G04181652Courtesy of NISSAN MOTOR CO., U.S.A.
