Terminals and Reference Value for Intelligent Key Unit/with Intelligent Key System
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
INTELLIGENT KEY UNIT TERMINALS AND REFERENCE VALUE (WITH INTELLIGENT KEY SYSTEM)
| Terminal No. | Wire color | Signal designation | Measuring condition | Voltage (V) (Approx.) | |
|---|---|---|---|---|---|
| Ignition knob position | Operation or conditions | ||||
| 1 | L/Y | Steering lock unit power supply | LOCK | - | 5 |
| 2 | L | CAN-H | - | - | - |
| 3 | P | CAN-L | - | - | - |
| 6 | Y/G | Ignition power supply (ON) | ON | Ignition knob ON or START position | Battery voltage |
| 7 | B/P | Key switch | LOCK | Insert mechanical key into ignition key cylinder. | Battery voltage |
| Remove mechanical key from ignition key cylinder. | 0 | ||||
| 11 | Y | Power source (Fuse) | - | - | Battery voltage |
| 12 | B | Ground | - | - | 0 |
| 27 | OR | Ignition knob switch | - | Press ignition knob. Battery voltage Return ignition knob to LOCK position. | 0 |
| 31 | G/R | Steering lock unit ground | - | - | 0 |

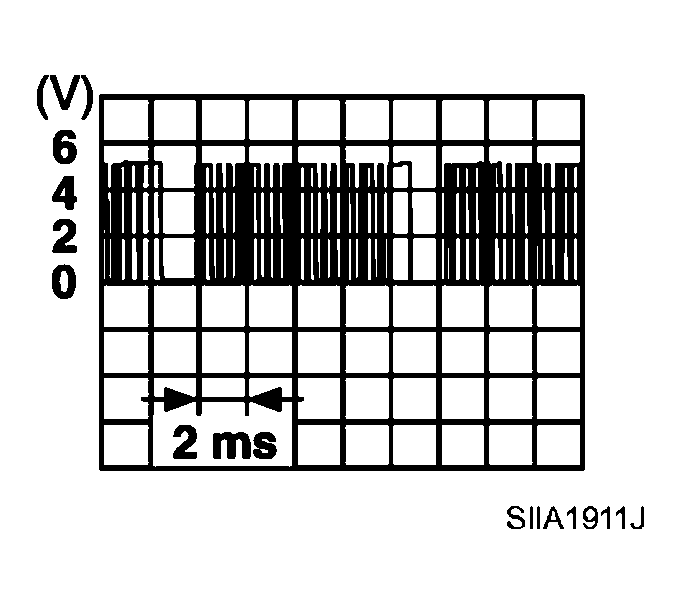

| 32 | L/OR | Steering lock unit communication signal | LOCK | Press ignition knob with Intelligent Key inside vehicle. | |
| Other than the above | 5 | ||||
