Terminals and Reference Value for Steering Lock Unit/with Intelligent Key System
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
STEERING LOCK UNIT TERMINALS AND REFERENCE VALUE (WITH INTELLIGENT KEY SYSTEM)
| Terminal No. | Wire color | Signal Designation | Measuring condition | Voltage (V) (Approx.) | |
|---|---|---|---|---|---|
| Ignition knob position | Operation or conditions | ||||
| 1 | Y | Power source (Fuse) | - | - | Battery voltage |
| 2 | L/Y | Steering lock unit power supply | LOCK | - | 5 |

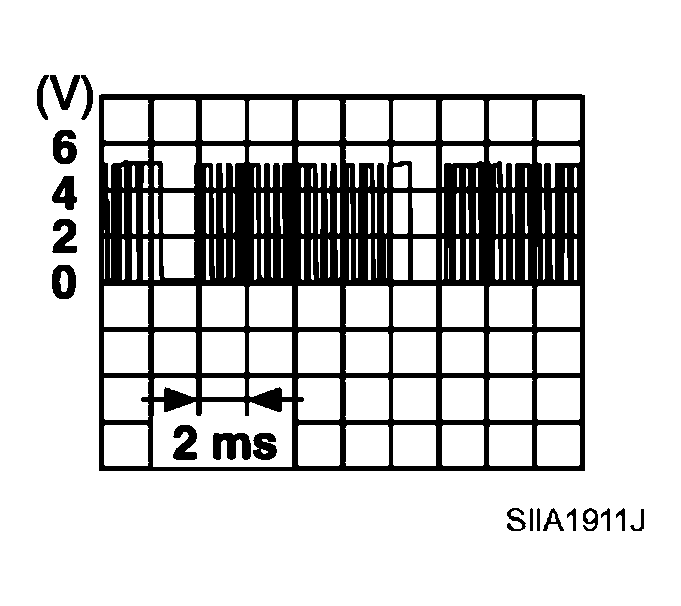

| 3 | L/OR | Steering lock unit communication signal | LOCK | Press ignition knob with Intelligent Key inside vehicle. | |
| Other than the above | 5 | ||||
| 4 | G/R | Steering lock unit ground | - | - | 0 |
