Basic Operation

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II CONVERTER and CONSULT-II to data link connector.

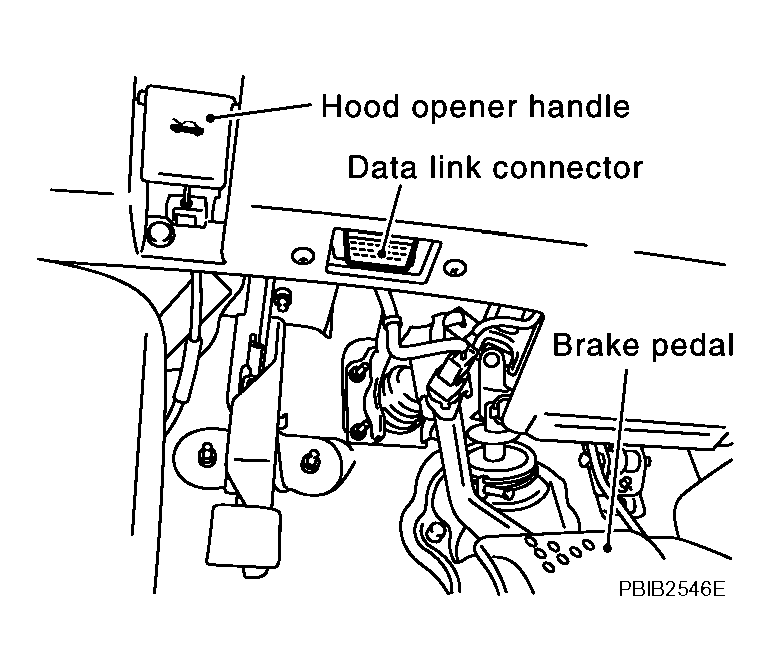

    Fig 1: Identifying Data Link Connector
    G04122396Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Use mechanical key to turn ignition switch to ON.
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Consult-II Display Screen
    G04151184Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "INTELLIGENT KEY" on "SELECT SYSTEM" screen. If "INTELLIGENT KEY" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".
    Fig 3: Consult-II SELECT SYSTEM Display Screen
    G04083859Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Select diagnosis mode. "WORK SUPPORT""SELF-DIAG RESULTS""CAN DIAG SUPPORT MNTR""DATA MONITOR""ACTIVE TEST" and "ECU PART NUMBER" are available.
    Fig 4: Consult-II SELECT DIAG MODE Display Screen
    G04083861Courtesy of NISSAN MOTOR CO., U.S.A.
