Check Intelligent Key Warning Buzzer (ENGINE ROOM)

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK INTELLIGENT KEY WARNING BUZZER (ENGINE ROOM) POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect Intelligent Key warning buzzer (engine room) connector.
    3. Check voltage between Intelligent Key warning buzzer (engine room) harness connector E38 terminal 1 and ground.

      1 (L/W) - Ground : Battery voltage

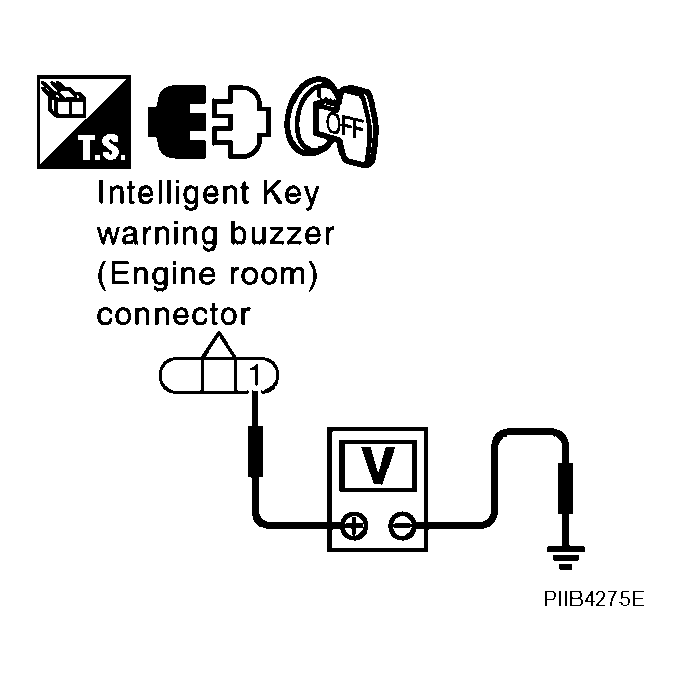

      Fig 1: Identifying Voltage Between Intelligent Key Warning Buzzer Harness Connector E38 Terminal 1 And Ground
      G04122445Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 2.
    • NG: Repair or replace Intelligent Key warning buzzer (engine room) power supply circuit.
  2. CHECK INTELLIGENT KEY WARNING BUZZER (ENGINE ROOM) CIRCUIT
    1. Disconnect Intelligent Key unit connector.
    2. Check continuity between Intelligent Key unit harness connector M75 terminal 4 and Intelligent Key warning buzzer (engine room) harness connector E38 terminal 3.

      4 (GY) - 3 (GY) : Continuity should exist.

    3. Check continuity between Intelligent Key warning buzzer (engine room) harness connector E38 terminal 3 and ground.

      3 (GY) - Ground : Continuity should not exist.

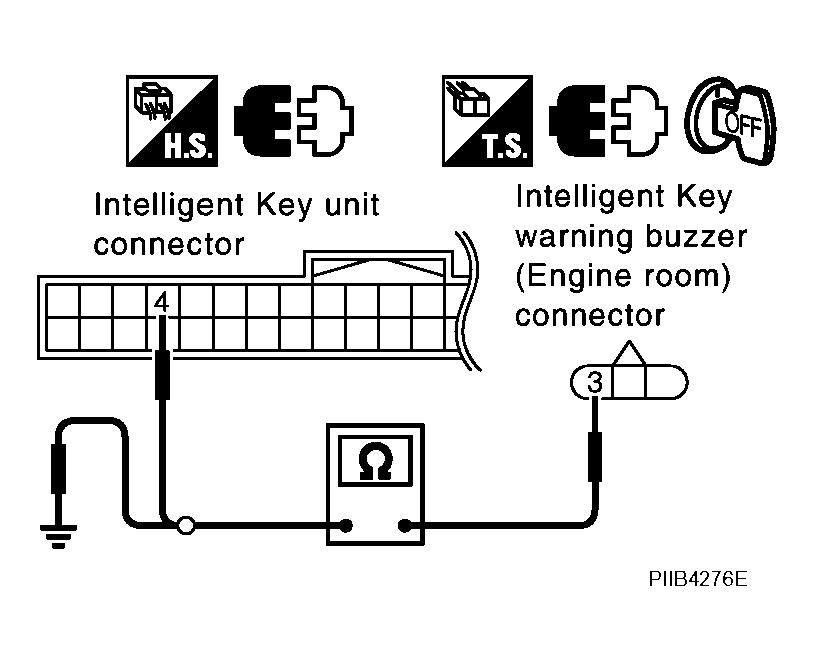

      Fig 2: Identifying Continuity Between Intelligent Key Warning Buzzer Harness Connector E38 Terminal 3 And Ground
      G04122446Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 3.
    • NG: Repair or replace harness between Intelligent Key warning buzzer (engine room) and Intelligent Key unit.
  3. CHECK INTELLIGENT KEY WARNING BUZZER (ENGINE ROOM) OPERATION

    Connect battery power supply to Intelligent Key warning buzzer (engine room) harness connector E38 terminals 1 and 3, and check the operation.

    1 (BAT+)-3 (BAT-) :the buzzer sounds

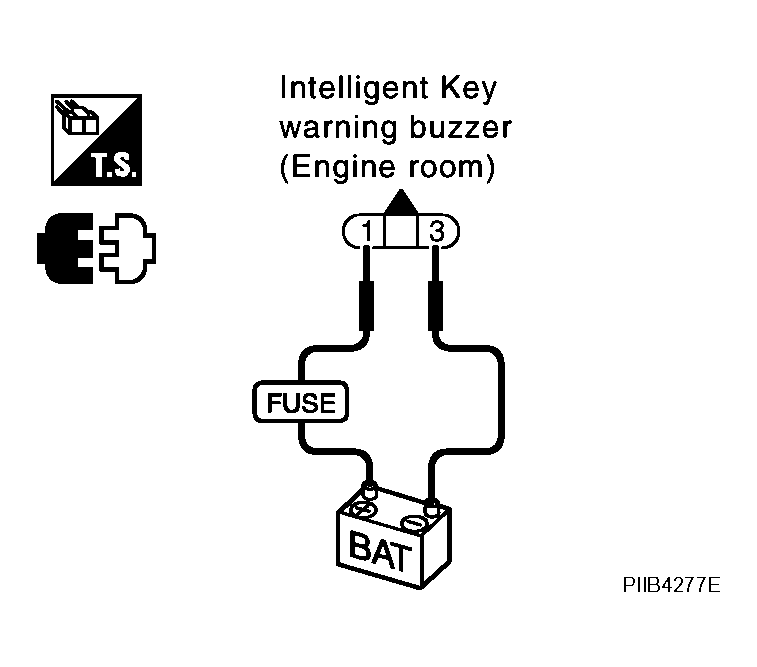

    Fig 3: Connecting Battery Power Supply To Intelligent Key Warning Buzzer Connector E38 Terminals 1 And 3
    G04122447Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: Intelligent Key warning buzzer (engine room) is OK.
    • NG: Replace Intelligent Key warning buzzer (engine room).
