Check Outside Key Antenna

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL
    1. Turn ignition switch OFF.
    2. Check signal between Intelligent Key unit connector and ground with oscilloscope.
    TERMINALS SIGNALS REFERENCE

    Connector Item Terminal (wire color) Condition Signal (Reference value)
    (+) (-)
    M75 Rear bumper 17 (W/L) Ground Request switch is pushed
    G04077024
    Driver side 19 (P)
    Passenger side 37 (LG)

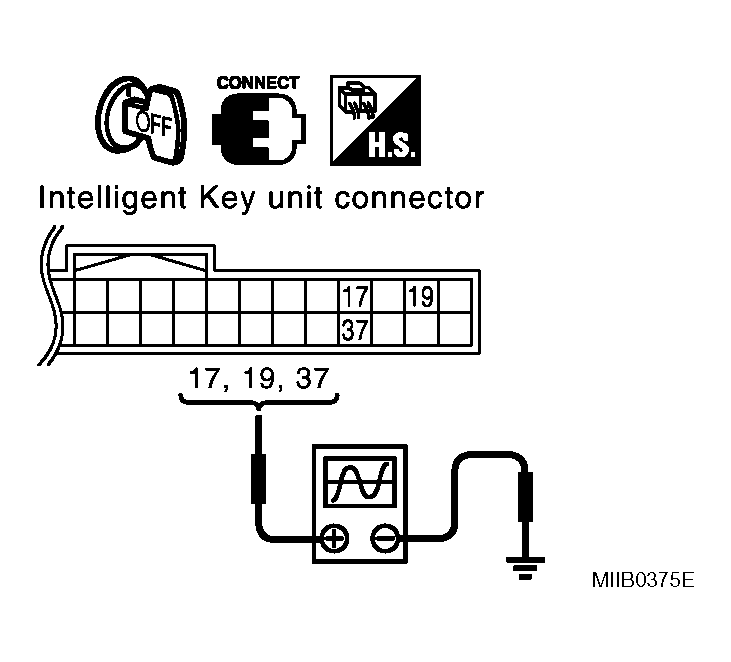

    Fig 1: Identifying Signal Between Intelligent Key Unit Connector And Ground
    G04122449Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: Outside key antenna is OK.
    • NG: GO TO 2.
  2. CHECK OUTSIDE KEY ANTENNA CIRCUIT
    1. Disconnect Intelligent Key unit connector and outside key antenna connector.
    2. Check continuity between each outside key antenna harness connector D13 (driver side), D41 (passenger side), B131 (rear bumper) terminals 1, 2 and Intelligent Key unit harness connector M75 terminals 17, 18, 19, 20, 37, and 38.
      TERMINALS CONTINUITY REFERENCE

      Item Connector Terminal (Wire color) Connector Terminal (Wire color) Continuity
      Rear bumper B131 1 (W) M75 17 (W/L) Yes
      2 (B) 18 (W/R)
      Driver side D13 1 (P) 19 (P)
      2 (PU) 20 (PU)
      Passenger side D41 1 (LG) 37 (LG)
      2 (B/Y) 38 (BR/W)

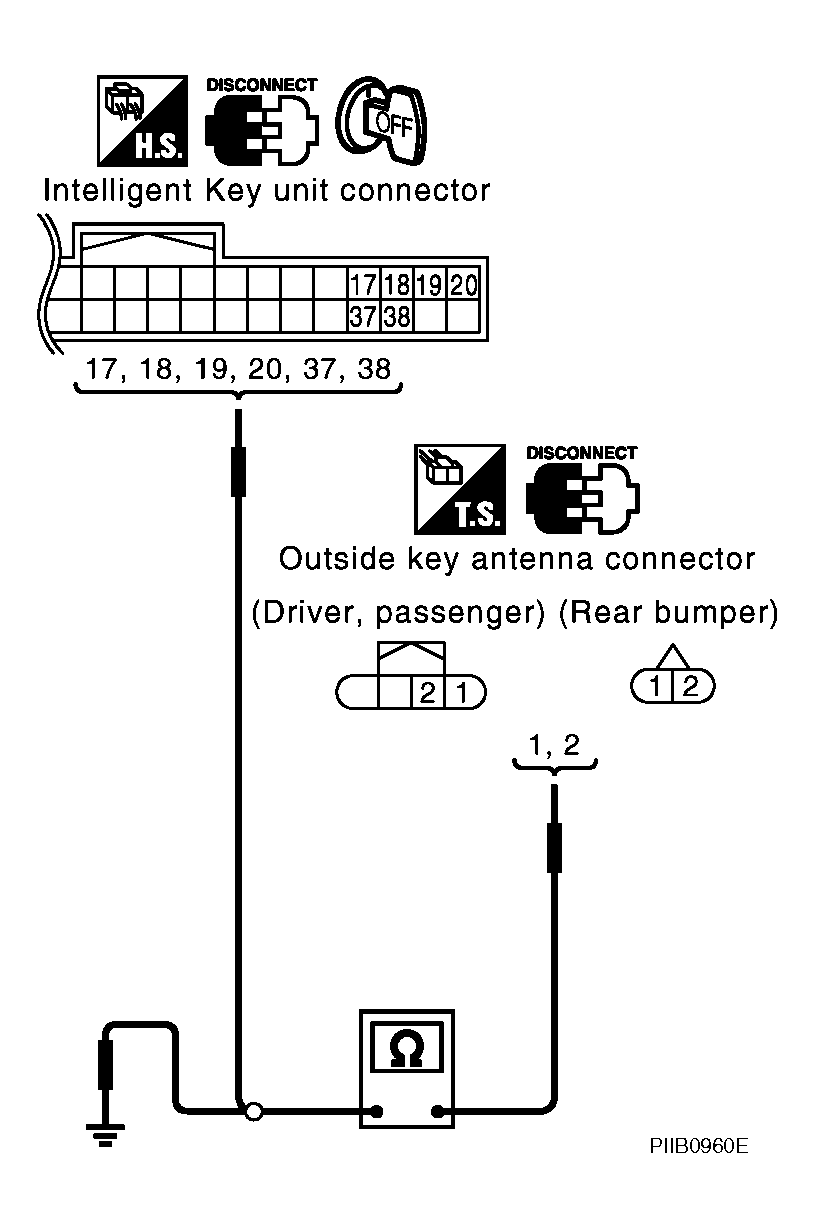

      Fig 2: Identifying Continuity Between Each Outside Key Antenna Harness Connector Terminals 1, 2 And Ground
      G04122450Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check continuity between each outside key antenna harness connector terminals 1, 2 and ground.
      TERMINALS CONTINUITY REFERENCE

      Item Connector Terminal Continuity
      Rear bumper B131 1 (W) Ground No
      2 (B)
      Driver side D13 1 (P)
      2 (PU)
      Passenger side D41 1 (LG)
      2 (B/Y)

      OK or NG

      • OK: GO TO 3.
      • NG: Replace harness between outside key antenna and Intelligent Key unit.
  3. CHECK OUTSIDE KEY ANTENNA POWER SUPPLY
    1. Replace outside key antenna. (New antenna or other antenna)
    2. Connect Intelligent Key unit connector and outside key antenna connector.
    3. Check signal between Intelligent Key unit connector and ground with oscilloscope.
      TERMINALS SIGNALS REFERENCE

      Connector Item Terminal (wire color) Condition Signal (Reference value)
      (+) (-)
      M75 Rear bumper 17 (W/L) Ground Request switch is pushed
      G04077024
      Driver side 19 (P)
      Passenger side 37 (LG)
      Fig 3: Identifying Signal Between Intelligent Key Unit Connector And Ground
      G04122452Courtesy of NISSAN MOTOR CO., U.S.A.

      OK or NG

      • OK: Replace outside key antenna.
      • NG: Replace Intelligent Key unit.
