Check Park Position Switch

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK PARK POSITION SWITCH INPUT SIGNAL
    1. Turn ignition switch OFF.
    2. Check voltage between Intelligent Key unit harness connector and ground.
    TERMINALS VOLTAGE REFERENCE

    Connector Terminal (Wire color) Condition Voltage (V) (Approx.)
    (+) (-)
    M75 39 (BR) Ground Selector lever is in "P" position 0
    Other than above 5
    Fig 1: Identifying Voltage Between Intelligent Key Unit Harness Connector And Ground
    G04122469Courtesy of NISSAN MOTOR CO., U.S.A.
    1. OK or NG
    2. OK: Park position switch circuit is OK.
    3. NG: GO TO 2.
  2. CHECK PARK POSITION SWITCH
    1. Disconnect A/T device (park position switch) connector.
    2. Check continuity between A/T device (park position switch) terminals 1 and 3.
    TERMINALS CONTINUITY REFERENCE

    Connector Terminal Condition Continuity
    M47 3 1 Selector lever is in "P" position Yes
    Other than above No

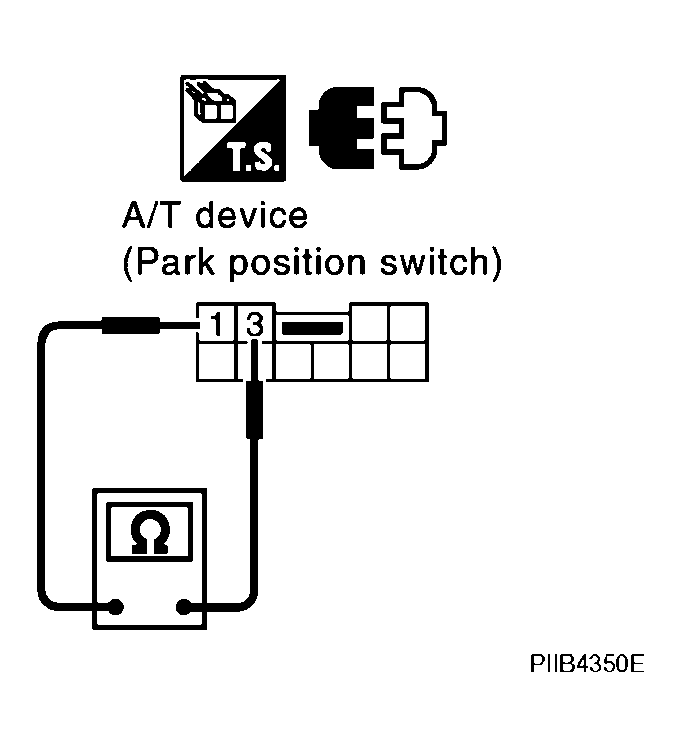

    Fig 2: Identifying Continuity Between A/T Device (Park Position Switch) Terminals 1 And 3
    G04122470Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

  3. CHECK PARK POSITION SWITCH GROUND CIRCUIT

    Check continuity between A/T device (park position switch) harness connector M47 terminal 1 and ground.

    1 (B) - Ground : Continuity should exist.

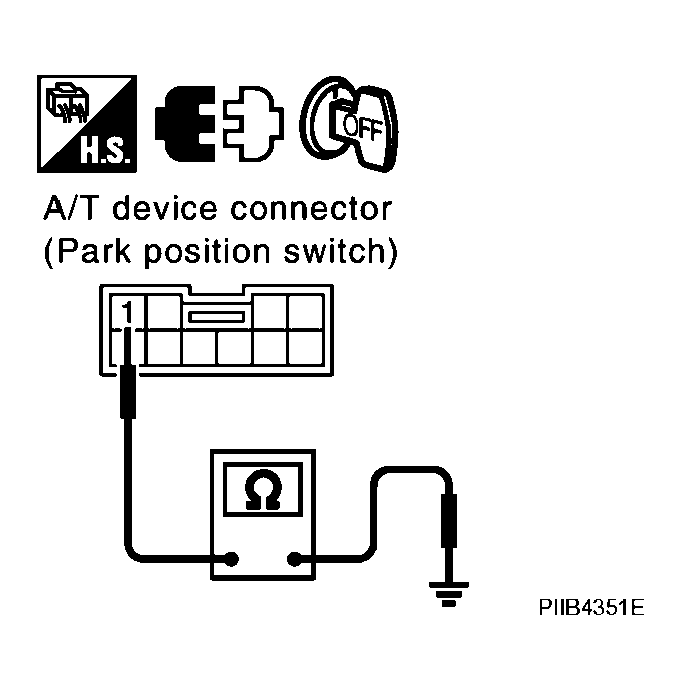

    Fig 3: Identifying Continuity Between A/T Device (Park Position Switch) Harness Connector M47 Terminal 1 And Ground
    G04122471Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 4.
    • NG: Repair or replace harness.
  4. CHECK PARK POSITION SWITCH CIRCUIT
    1. Disconnect Intelligent Key unit connector.
    2. Check continuity between Intelligent Key unit harness connector M75 terminal 39 and A/T device (park position switch) harness connector M47 terminal 3.

      39 (BR) - 3 (PU/R) : Continuity should exist.

    3. Check continuity between Intelligent Key unit harness connector M75 terminals 39 and ground.

    39 (BR) - Ground : Continuity should not exist.

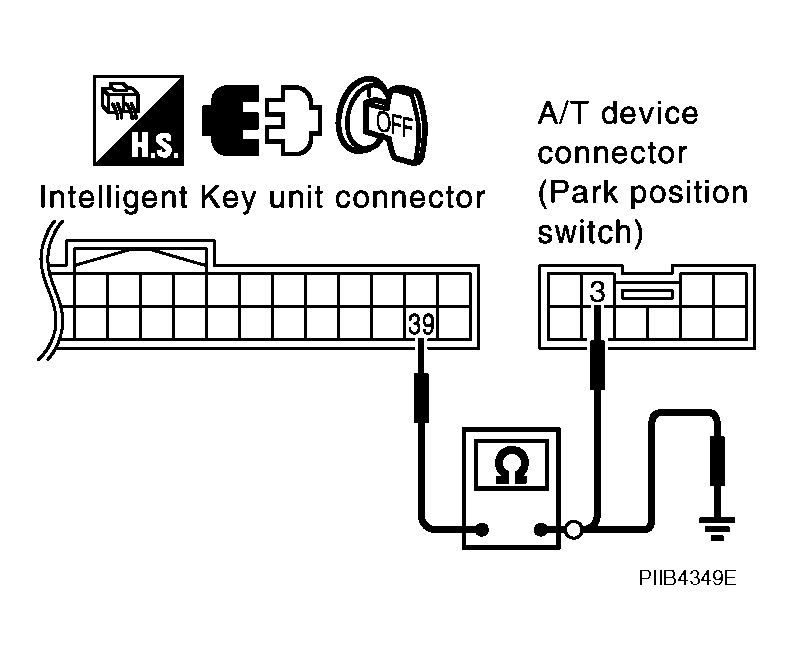

    Fig 4: Identifying Continuity Between Intelligent Key Unit Harness Connector M75 Terminals 39 And Ground
    G04122472Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 5.
    • NG: Repair or replace harness.
  5. CHECK INTELLIGENT KEY OUTPUT SIGNAL
    1. Connect Intelligent Key unit connector and A/T device (park position switch) connector.
    2. Check voltage between Intelligent Key unit connector and ground.
    TERMINALS VOLTAGE REFERENCE

    Connector Terminal (Wire color) Condition Voltage (V) (Approx.)
    (+) (-)
    M75 39 (BR) Ground Selector lever is in "P" position 0
    Other than above 5

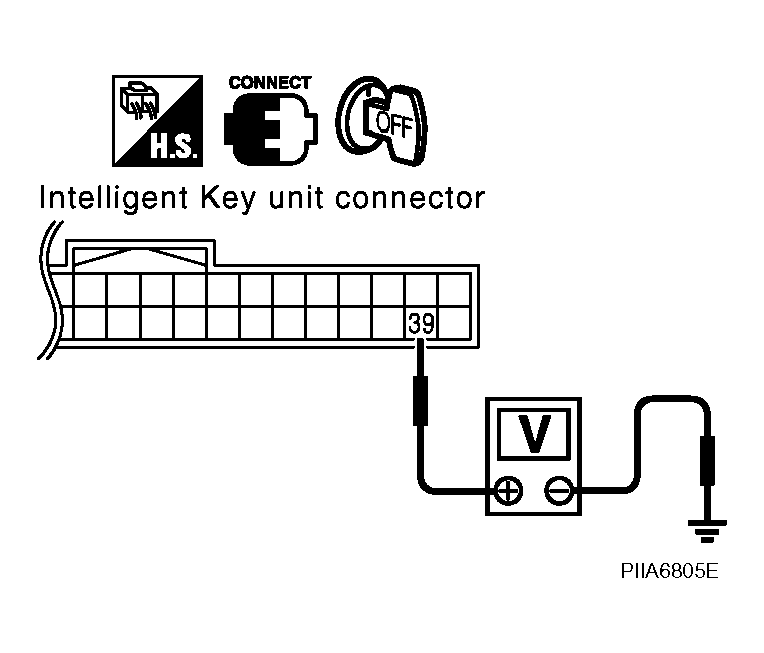

    Fig 5: Identifying Voltage Between Intelligent Key Unit Connector And Ground
    G04122473Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: Check condition of harness and connector.
    • NG: Replace Intelligent Key unit.
