Removal and Installation of Intelligent Key Unit: Removal

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ECM.
  2. Disconnect Intelligent Key unit connector, remove screw and Intelligent Key unit.

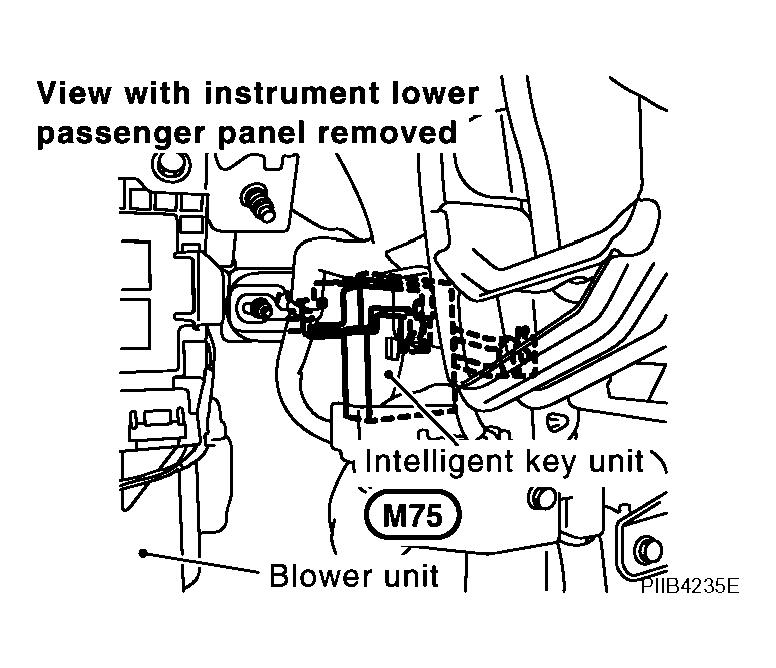

    Fig 1: Identifying Intelligent Key Unit
    G04122492Courtesy of NISSAN MOTOR CO., U.S.A.
