Terminals and Reference Value for Steering Lock Unit
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
STEERING LOCK UNIT TERMINALS AND REFERENCE VALUE
| Terminal | Wire Color | Signal Designation | Condition | Voltage (V) Approx. | |
|---|---|---|---|---|---|
| Ignition Switch Position | Operation or Conditions | ||||
| 1 | Y | Battery power supply | LOCK | - | Battery voltage |
| 2 | L/Y | Steering lock unit power supply | LOCK | - | 5 |

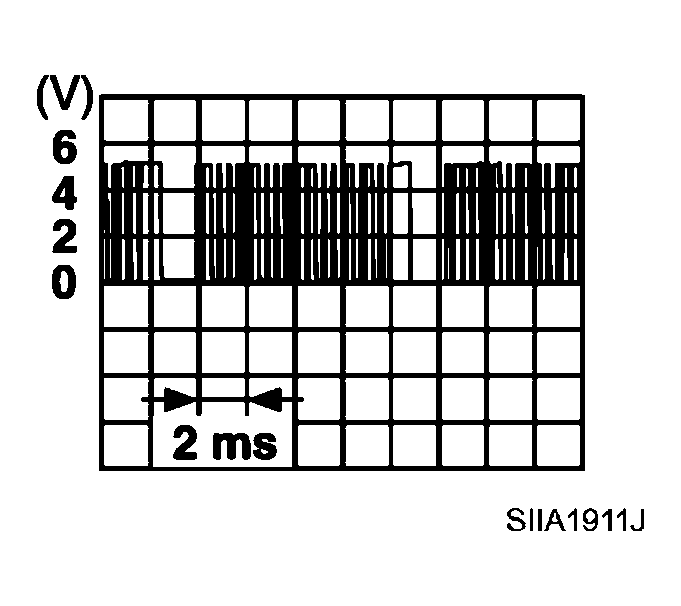

| 3 | L/OR | Steering lock unit communication signal | LOCK | When Intelligent Key is inside vehicle, press ignition knob switch. | |
| Other than the above | 5 | ||||
| 4 | G/R | Steering lock unit ground | - | - | 0 |
