Work Flow

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

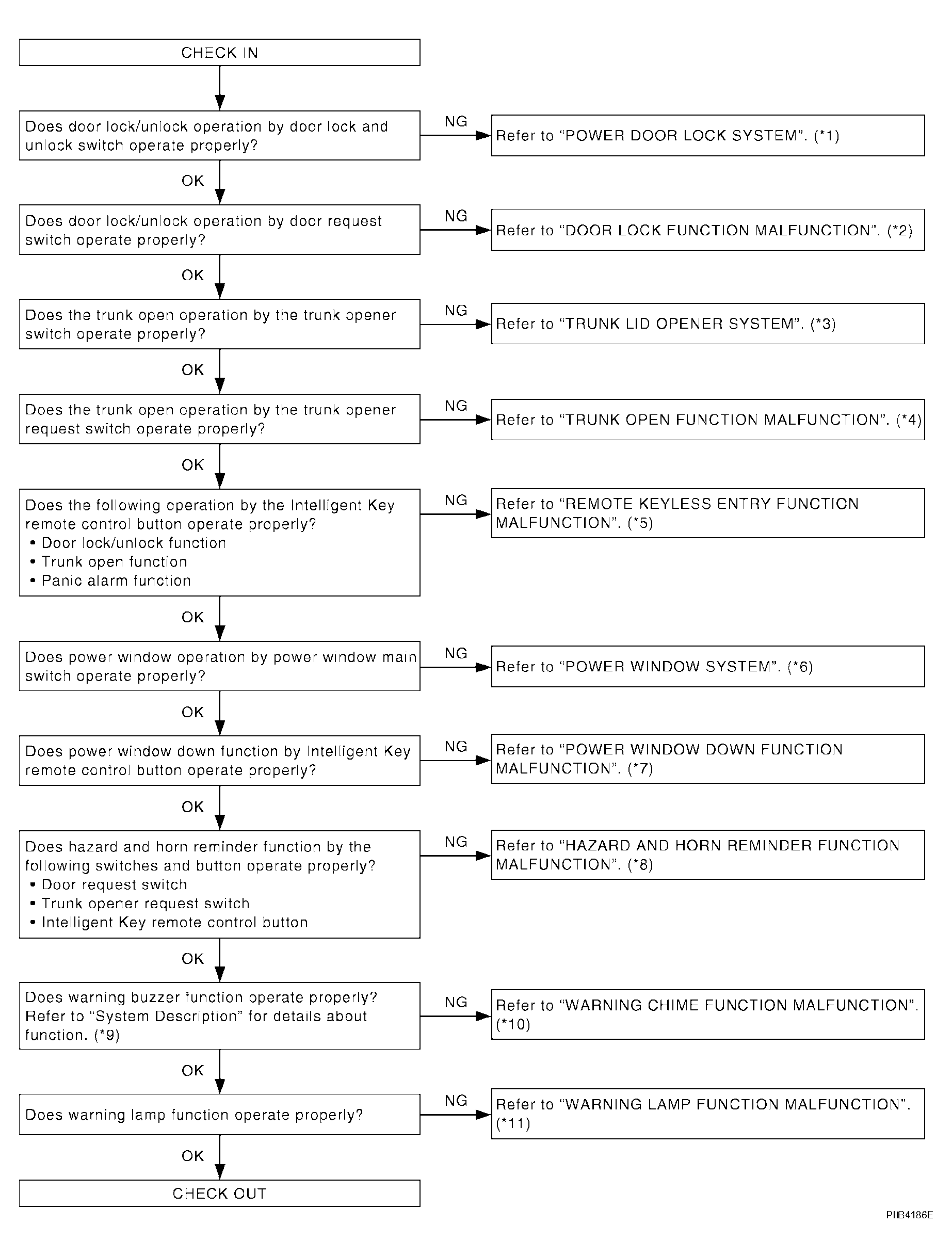

Fig 1: Trouble Diagnosis Work Flow Chart
G04122395Courtesy of NISSAN MOTOR CO., U.S.A.
TROUBLE DIAGNOSIS WORK FLOW CHART REFERENCES

*1. POWER DOOR LOCK SYSTEM
*2. DOOR LOCK/UNLOCK FUNCTION MALFUNCTION
*3. TRUNK LID OPENER
*4. TRUNK OPEN FUNCTION MALFUNCTION
*5. REMOTE KEYLESS ENTRY FUNCTION
*6. POWER WINDOW SYSTEM
*7. POWER WINDOW DOWN FUNCTION MALFUNCTION
*8. TRUNK OPEN FUNCTION MALFUNCTION
*9. WARNING CHIME FUNCTION
*10. POWER WINDOW DOWN FUNCTION MALFUNCTION
*11. CHECK CAN COMMUNICATION SYSTEM.
