Check Security Indicator Lamp

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

SECURITY INDICATOR LAMP ACTIVE TEST
With CONSULT-II

Check ("THEFT IND") in "ACTIVE TEST" mode with CONSULT-II.

Perform operation shown on display indicator lamp should illuminate.

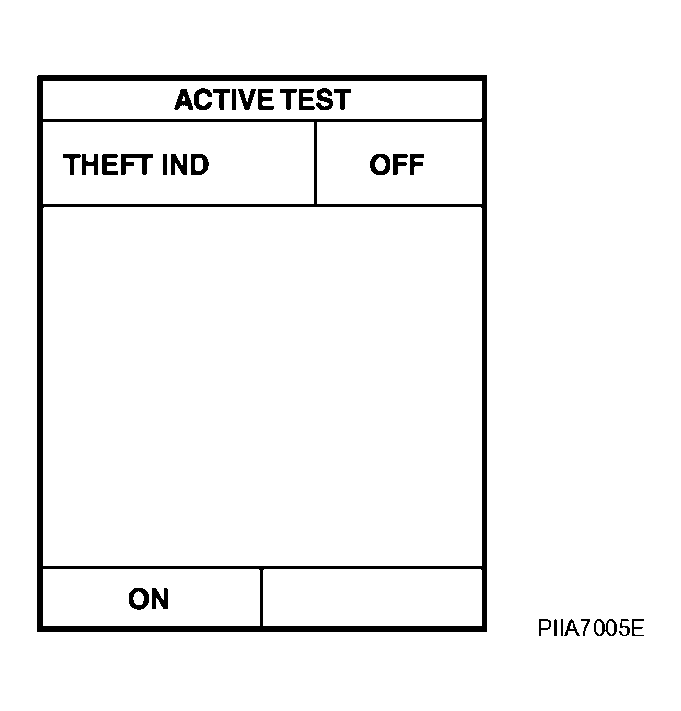

Fig 1: Display CONSULT-II - Active Test Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK: Security indicator lamp is OK.
- NG: GO TO 2.
CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect security indicator lamp connector.
3. Check voltage between security indicator lamp connector M34 terminal 1 and ground.
  1 (R/W) - Ground : Battery voltage

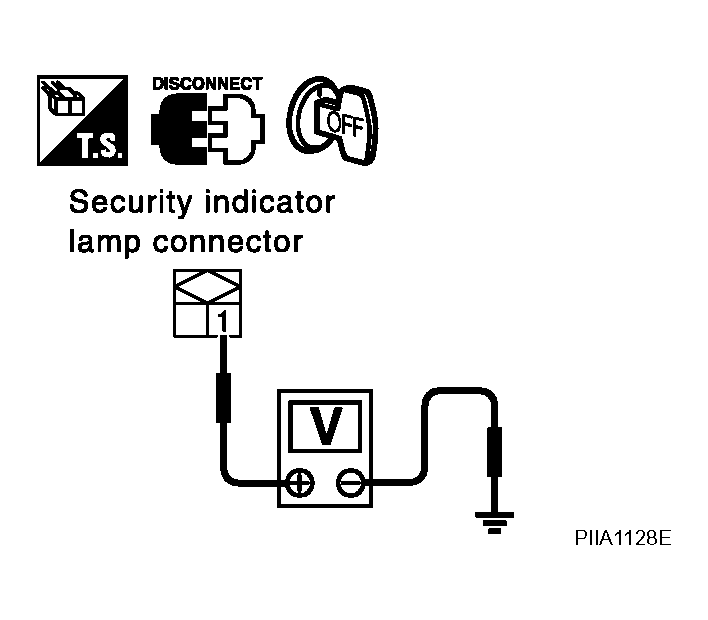

  Fig 2: Identifying Voltage Between Security Indicator Lamp Connector M34 Terminal 1 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
OK: Check the following.
- Harness for open or short between BCM and security indicator lamp
- Security indicator lamp condition
NG: Check the following.
- 10A fuse [No.19, located in fuse block (J/B)]
- Harness for open or short between security indicator lamp and fuse
