System Description: Tachometer
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
The tachometer indicates engine speed in revolutions per minute (rpm).

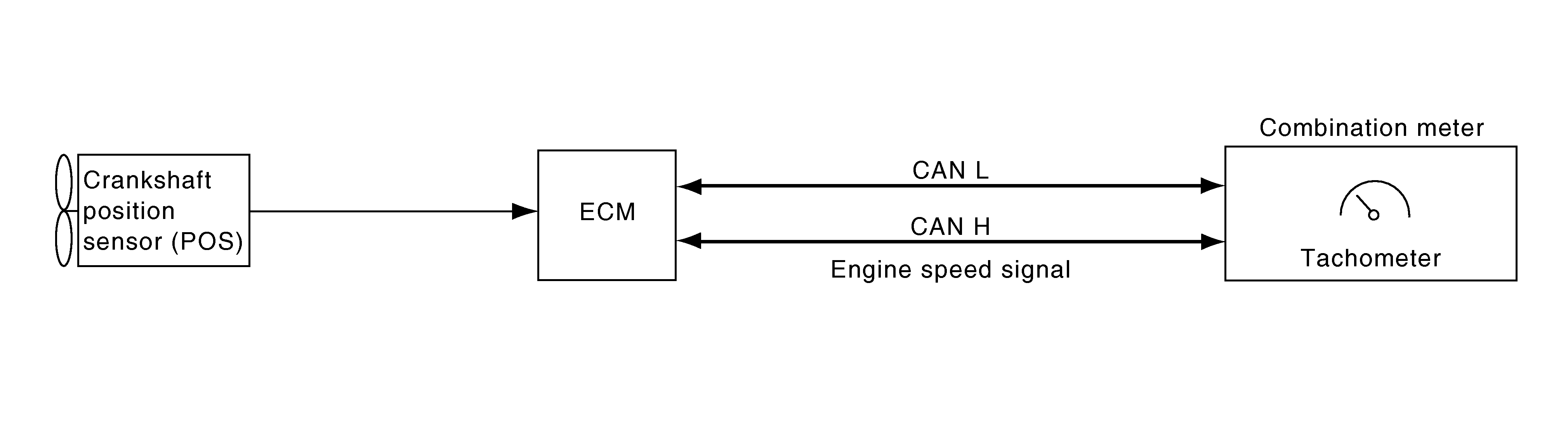

- ECM provides engine speed signal to combination meter with CAN communication.
- Combination meter indicates the engine speed according to engine speed signal.
