COMBINATION METER TERMINALS AND REFERENCE VALUE
| Terminal No. | Wire color | Item | Condition | Reference valuIgnition | |
|---|---|---|---|---|---|
| switch | Operation or condition | ||||
| 1 | B | Ground | ON | - | Approx. 0 V |
| 4 | L | CAN H | - | - | - |
| 5 | P | CAN L | - | - | - |
| 7 | W/B | Fuel level sensor signal | - | - | Refer to "FUEL LEVEL SENSOR UNIT ". |

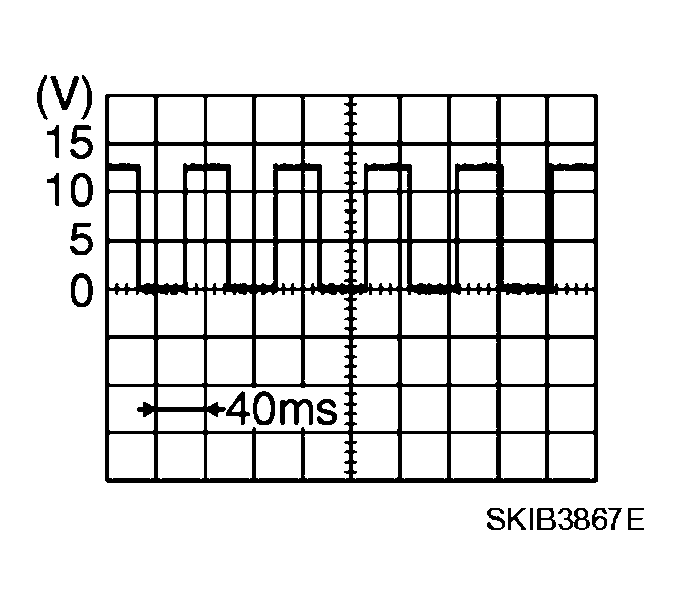

| 13 | W/G | Vehicle speed signal (8-pulse) | ON | Speedometer operated [When vehicle speed is approx. 40 km/h (25 MPH)] |
NOTE:
Maximum voltage may be 5 V due to specifications (connected units).
|
| 14 | W/G | Vehicle speed signal (2-pulse) | ON | Speedometer operated [When vehicle speed is approx. 40 km/h (25 MPH)] |
NOTE:
Maximum voltage may be 5 V due to specifications (connected units).
|
| 18 | LG | ACC power supply | ACC | - | Battery voltage |
| 21 | R/W | Battery power supply | OFF | - | Battery voltage |
| 22 | G/Y | Ignition power supply | ON | - | Battery voltage |
| 23 | |||||
| 24 | B | Ground | ON | - | Approx. 0 V |
| 25 | |||||
