A/T Model

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center console. Refer to REMOVAL AND INSTALLATION .
  2. Disconnect harness connector.
  3. Remove installation bolts. Remove yaw rate/side G sensor.

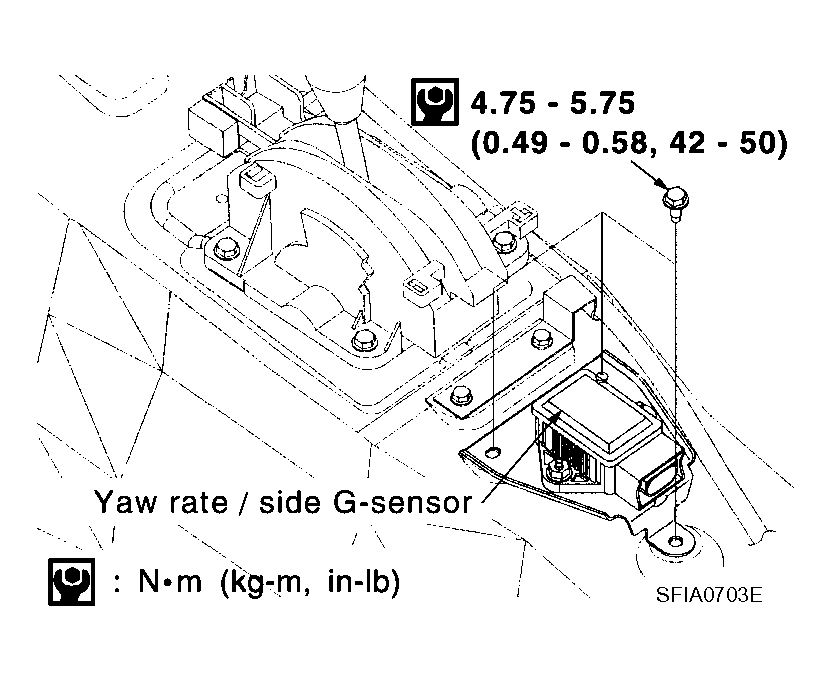

    Fig 1: Yaw Rate/Side G Sensor With Torque Specifications (A/T Model)
    G04122058Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Do not drop or strike yaw rate/side G sensor, because it has little endurance to impact.
    • Do not use power tool etc., because yaw rate/side G sensor is sensitive for the impact.
