Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument side panel (RH). Refer to REMOVAL AND INSTALLATION .
  2. Remove instrument lower cover. Refer to REMOVAL AND INSTALLATION .
  3. Remove VDC/TCS/ABS control unit.

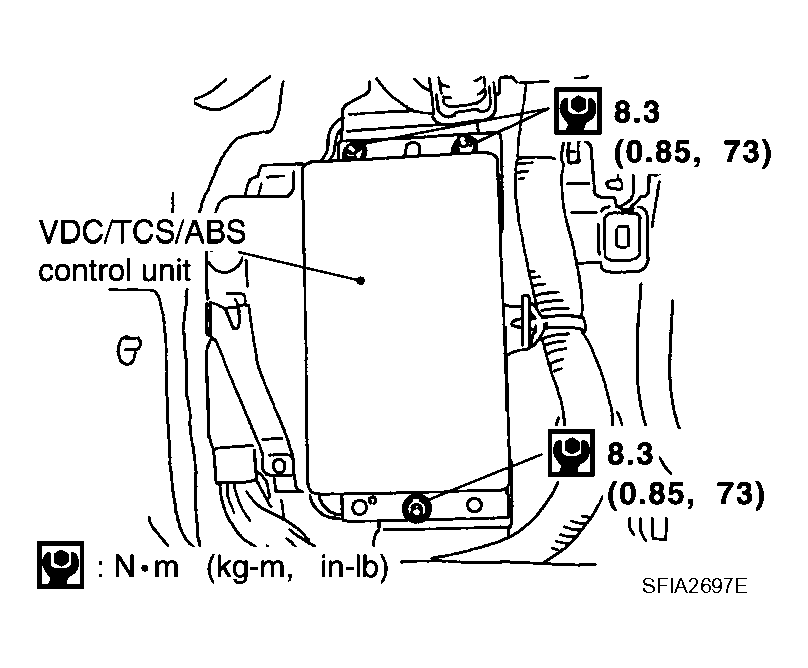

    Fig 1: VDC/TCS/ABS Control Unit With Torque Specifications
    G04122055Courtesy of NISSAN MOTOR CO., U.S.A.
