Terminals and Reference Values for BCM

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
TERMINALS AND REFERENCE VALUES CHART

Terminal No. Wire color Signal name Measuring condition Reference value
Ignition switch Operation or condition
2 W/L Combination switch input 5 ON Lighting, turn, wiper switch (Wiper intermittent dial position 4) OFF Approx. 0 V
Any of the conditions below
  • Lighting switch 1ST
  • Lighting switch HIGH beam (Operates only HIGH beam switch)
  • Turn signal switch to right

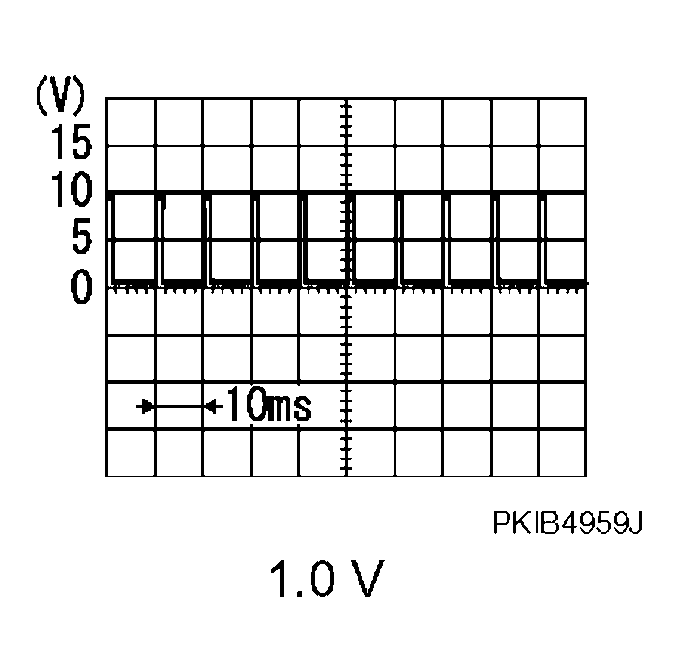

G04084530Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 1.0 V
Lighting switch 2ND

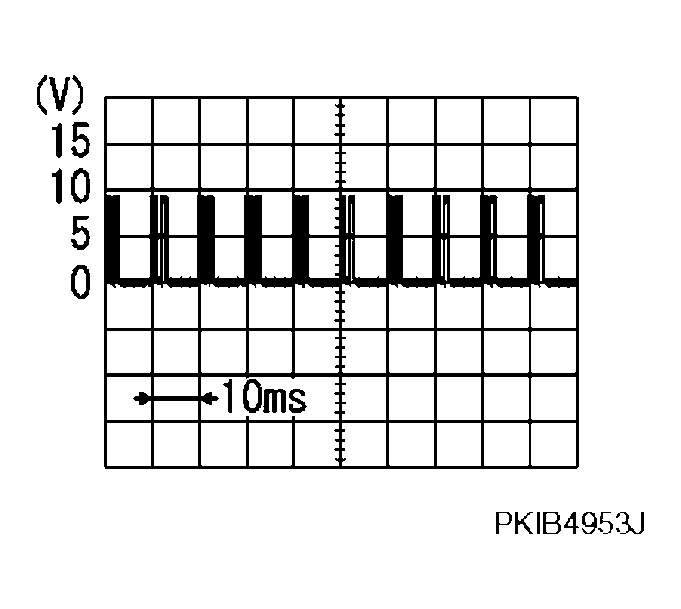

G04123729Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 2.0 V
3 G Combination switch input 4 ON Lighting, turn, wiper switch (Wiper intermittent dial position 4) OFF Approx. 0 V
Front fog lamp switch (Operates only front fog lamp switch)

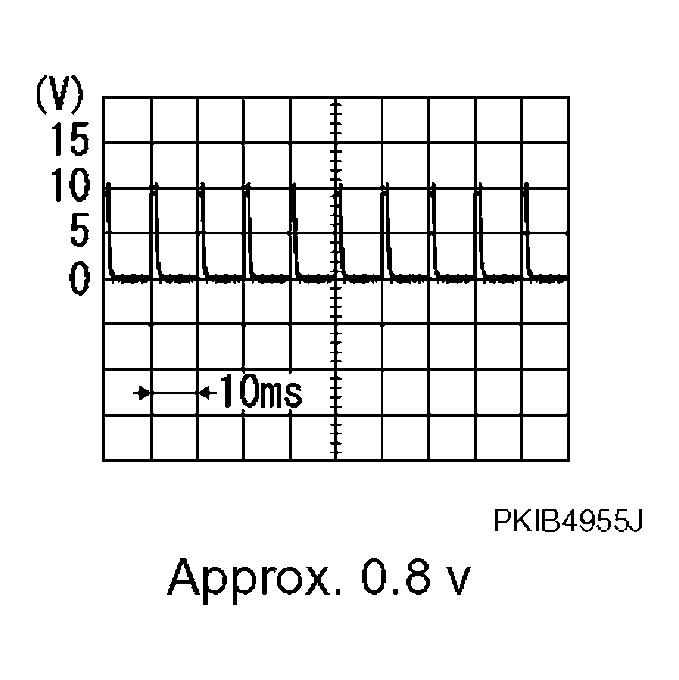

G04084256Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 0.8 V
Any of the conditions below
  • Lighting switch AUTO
  • Lighting switch 2ND
  • Lighting switch PASSING (Operates only PASSING switch)
  • Turn signal switch to left
G04084530Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 1.0 V
4 G/R Combination switch input 3 ON Lighting, turn, wiper switch (Wiper intermittent dial position 4) OFF Approx. 0 V
Any of the conditions below
  • Front wiper switch MIST
  • Front wiper switch INT
  • Front wiper switch LO
G04084530Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 1.0 V
5 W/G Combination switch input 2 ON Lighting, turn, wiper switch OFF (Wiper intermittent dial position 4) Approx. 0 V
Any of the conditions below
  • Front washer switch (Wiper intermittent dial position 4)
  • Wiper intermittent dial position 1
  • Wiper intermittent dial position 5
  • Wiper intermittent dial position 6
G04084530Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 1.0 V
6 W/R Combination switch input 1 ON Lighting, turn, wiper switch OFF (Wiper intermittent dial position 4) Approx. 0 V
Any of the conditions below
  • Front wiper switch HI (Wiper intermittent dial position 4)
  • Wiper intermittent dial position 3
G04084530Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 1.0 V
Any of the conditions below
  • Wiper intermittent dial position 1
  • Wiper intermittent dial position 2

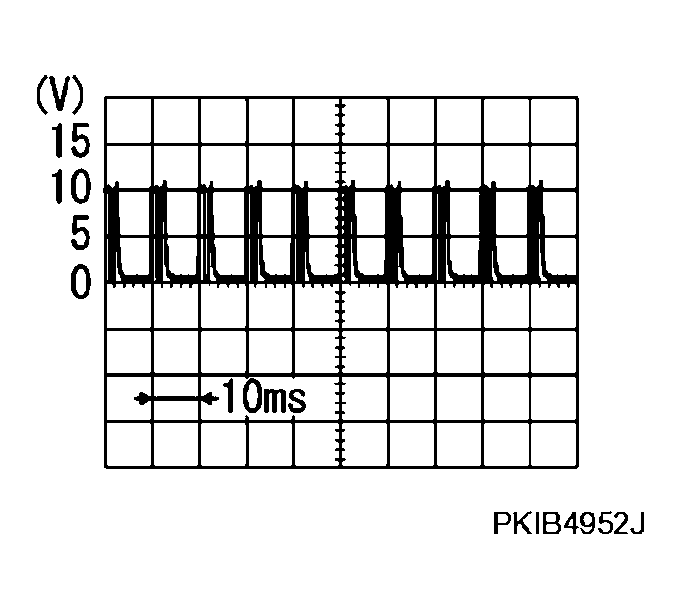

G04123735Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 1.7 V
Any of the conditions below
  • Wiper intermittent dial position 6
  • Wiper intermittent dial position 7
G04084256Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 0.8 V
11 LG Ignition switch (ACC) ACC - Battery voltage
32 GY Combination switch output 5 ON Lighting, turn, wiper switch OFF (Wiper intermittent dial position 4)
G04078527Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 7.2 V
Any of the conditions below
  • Front fog lamp switch (Operates only front fog lamp switch)
  • Wiper intermittent dial position 1
  • Wiper intermittent dial position 2
  • Wiper intermittent dial position 6
  • Wiper intermittent dial position 7

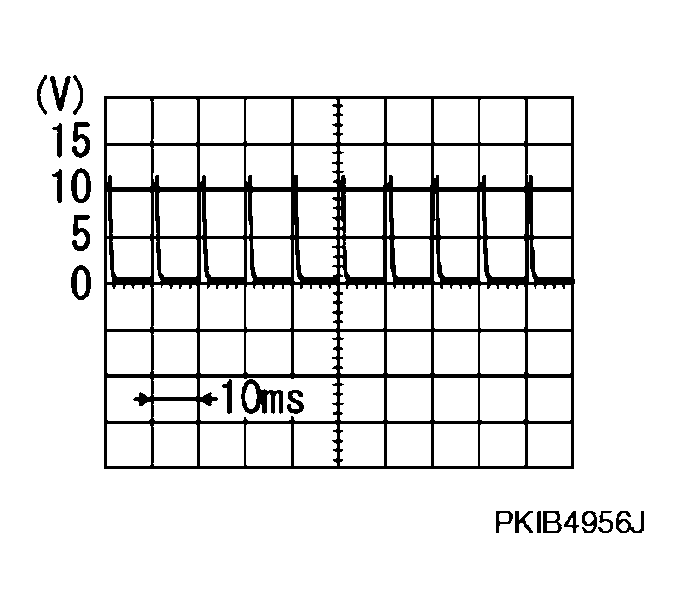

G04123738Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 1.0 V
33 L Combination switch output 4 ON Lighting, turn, wiper switch OFF (Wiper intermittent dial position 4)
G04078527Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 7.2 V
Any of the conditions below
  • Lighting switch AUTO (Wiper intermittent dial position 4)
  • Lighting switch 1ST (The same result with lighting switch 2ND) (Wiper intermittent dial position 4)
  • Wiper intermittent dial position 1
  • Wiper intermittent dial position 5
  • Wiper intermittent dial position 6
G04084542Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 1.2 V
34 PU Combination switch output 3 ON Lighting, turn, wiper switch OFF (Wiper intermittent dial position 4)
G04078527Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 7.2 V
Any of the conditions below
  • Lighting switch 2ND
  • Lighting switch HI beam (Operates only HI beam switch)
  • Wiper intermittent dial position 1
  • Wiper intermittent dial position 2
  • Wiper intermittent dial position 3
G04084542Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 1.2 V
35 Y/R Combination switch output 2 ON Lighting, turn, wiper switch (Wiper intermittent dial position 4) OFF
G04078527Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 7.2 V
Any of the conditions below
  • Lighting switch 2ND
  • Lighting switch PASSING (Operates only PASSING switch)
  • Front wiper switch INT
  • Front wiper switch HI
G04084542Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 1.2 V
36 Y Combination switch output 1 ON Lighting, turn, wiper switch (Wiper intermittent dial position 4) OFF
G04078527Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 7.2 V
Any of the conditions below
  • Turn signal switch to right
  • Turn signal switch to left
  • Front wiper switch MIST
  • Front wiper switch LO
  • Front washer switch

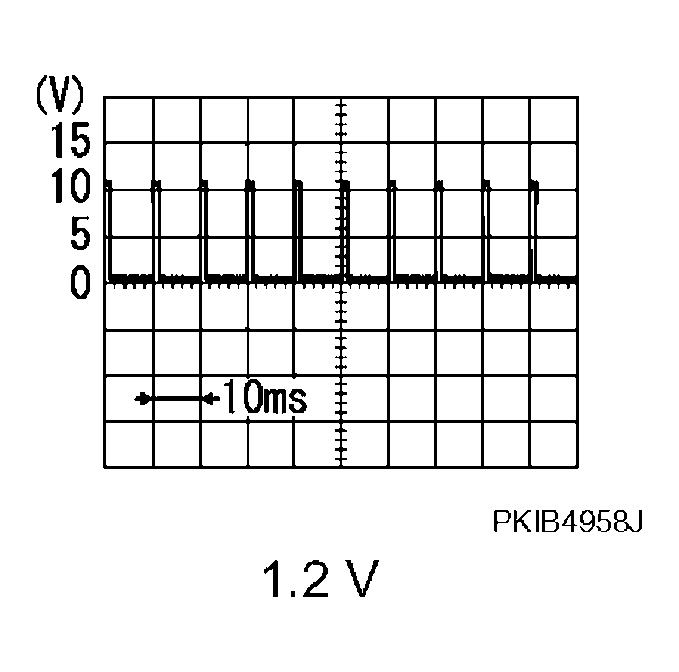

G04084542Courtesy of NISSAN MOTOR CO., U.S.A.

Approx. 1.2 V
38 W/L Ignition switch (ON) ON - Battery voltage
39 L CAN - H - - -
40 P CAN - L - - -
42 GY Battery power supply OFF - Battery voltage
52 B Ground ON - Approx. 0 V
55 W/R Battery power supply OFF - Battery voltage
