Adjustment Using An Adjustment Screen (Light/Dark Borderline)

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

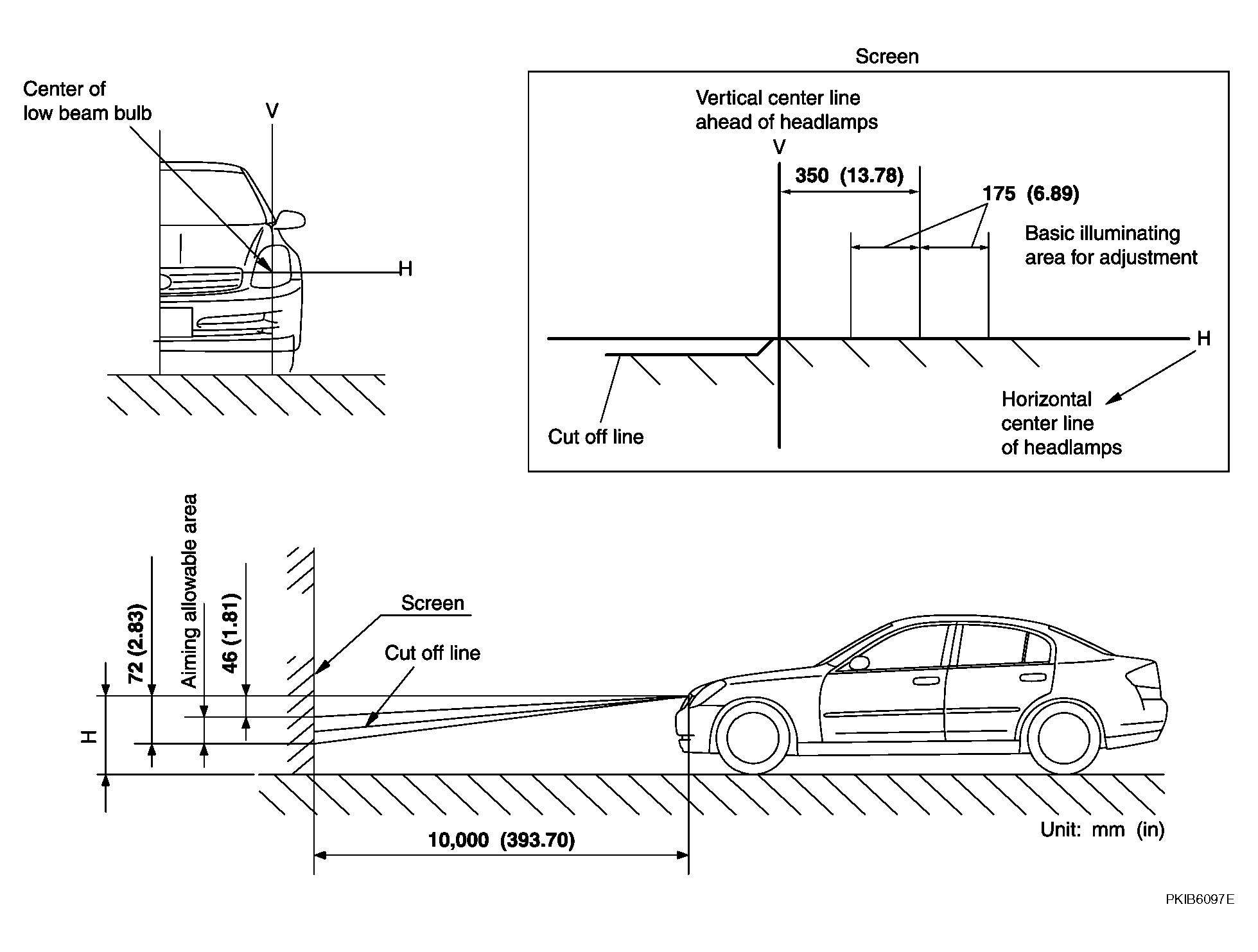

Fig 1: Adjusting Headlamp Aim - Using Adjustment Screen (Light/Dark Borderline)

Courtesy of NISSAN MOTOR CO., U.S.A.

If vehicle front body has been repaired and/or headlamp assembly has been replaced, check aiming. Use aiming chart shown in the figure.

Basic illumination area for adjustment should be within the range shown on the aiming chart. Adjust headlamp accordingly.
