System Description: Operation

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

After starting engine with lighting switch in the OFF or 1ST position, headlamp high beam automatically turns on. Lighting switch operations other than above are same as conventional light systems.

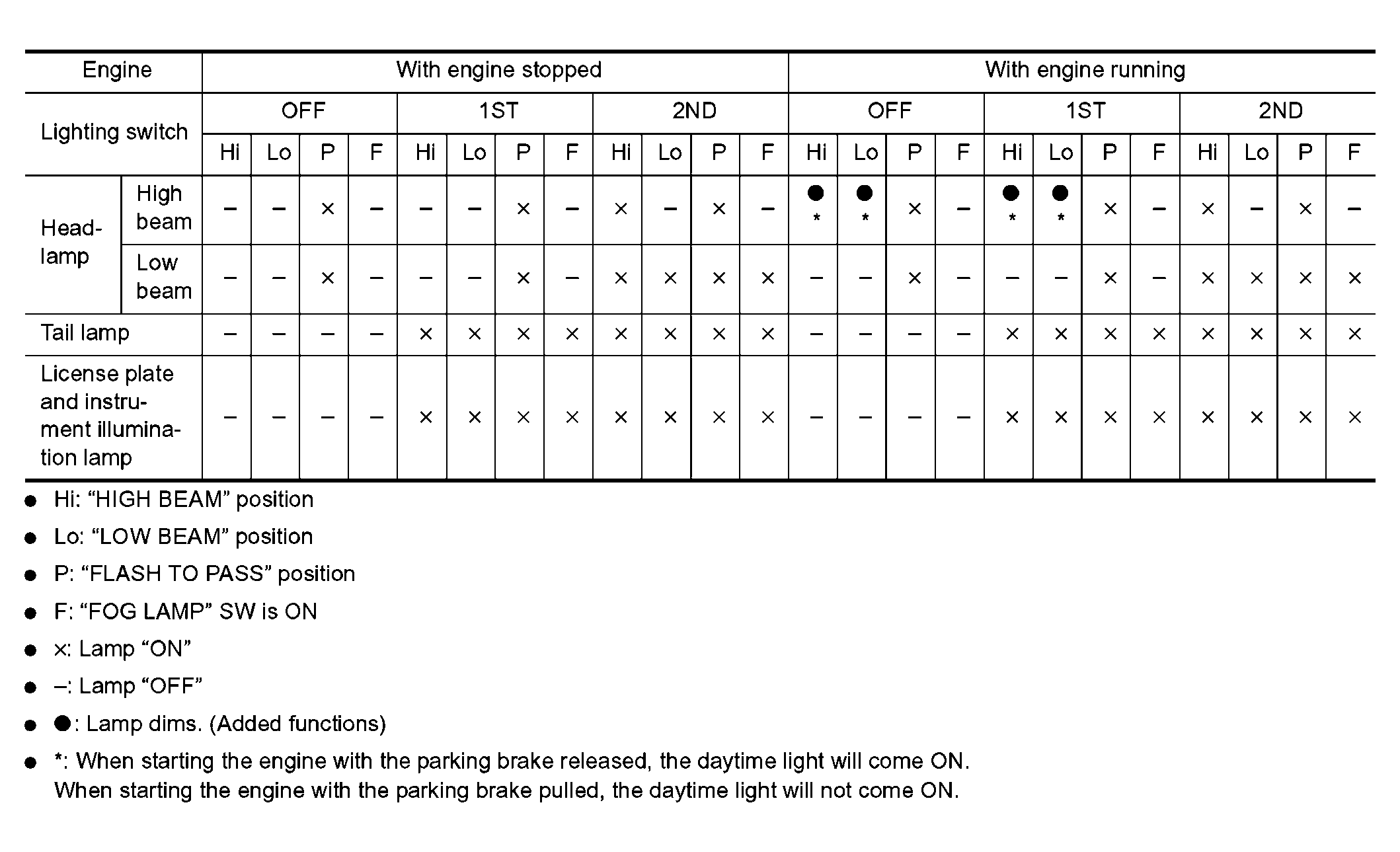

Fig 1: Lighting Switch In Off Or 1St Position Chart
G04123578Courtesy of NISSAN MOTOR CO., U.S.A.
