Disassembly and Assembly: Components

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

For GI, go to GENERAL INFORMATION -- SEDAN .

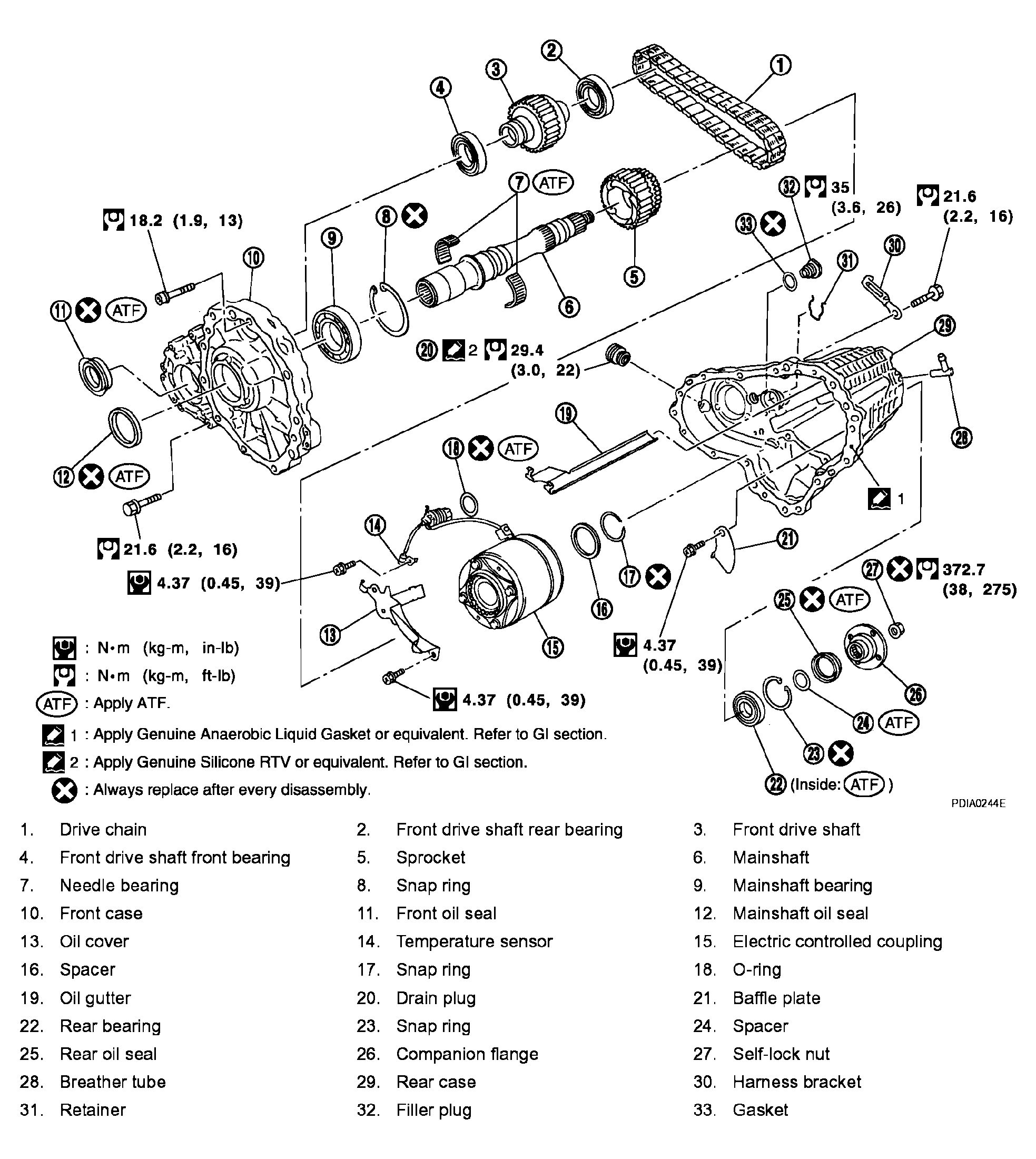

Fig 1: Transfer Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
