COMMERCIAL SERVICE TOOLS DESCRIPTION
| (Kent-Moore No.) Tool name |
Description | |
|---|---|---|

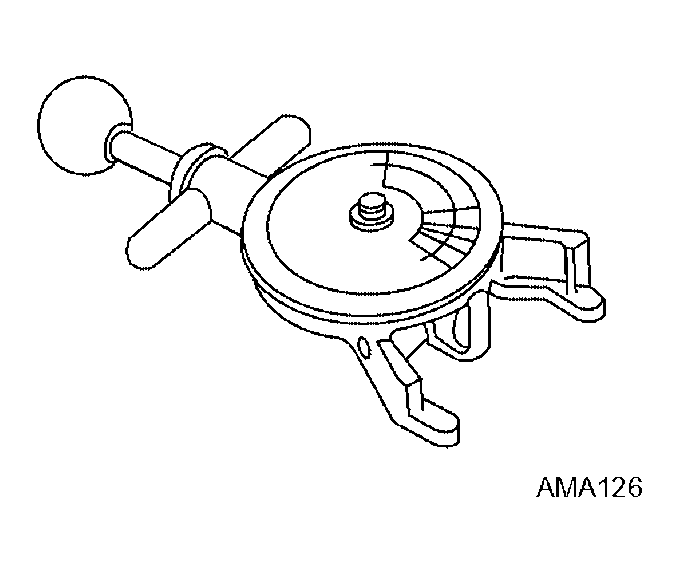

| (BT-3373-F) Belt tension gauge |
Checking drive belt tension | |

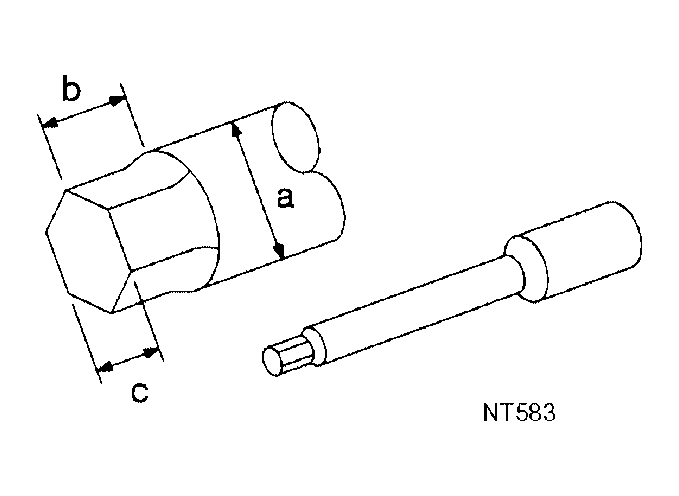

| (J-24239-01) Cylinder head bolt wrench |
Loosening and tightening cylinder head bolt a: 13 (0.51) dia. b: 12 (0.47) c: 10 (0.39) Unit: mm (in) |
|
| Power tool | Loosening bolts and nuts | |

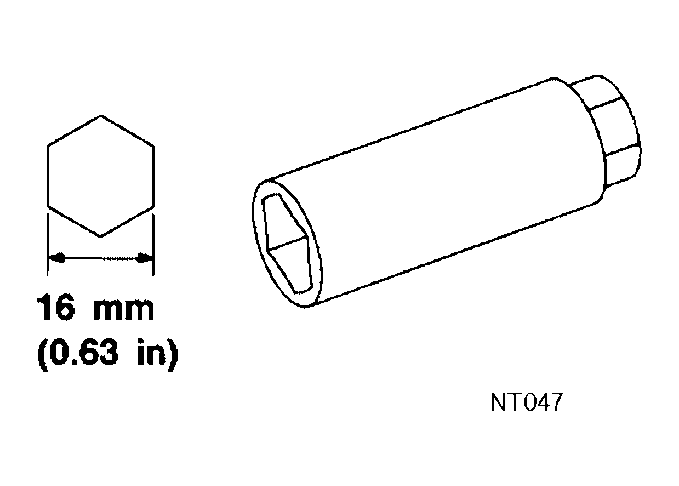

| Spark plug wrench | Removing and installing spark plug | |

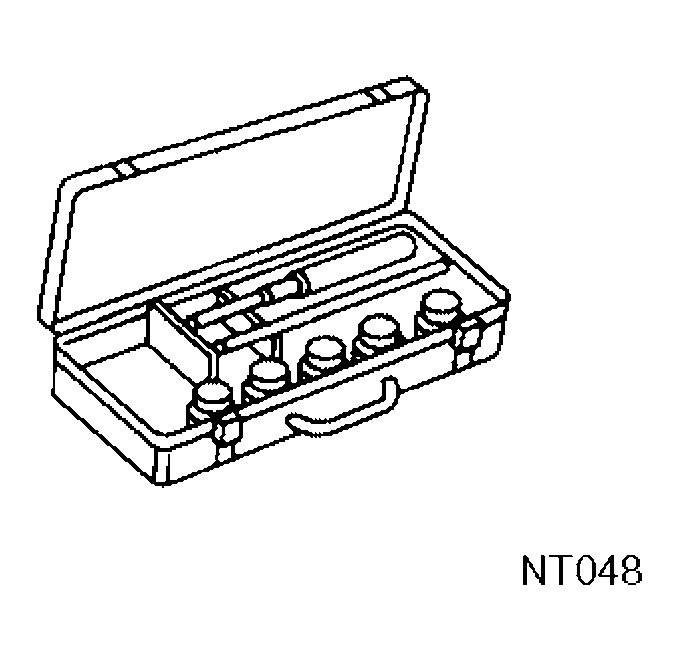

| Valve seat cutter set | Finishing valve seat dimensions | |

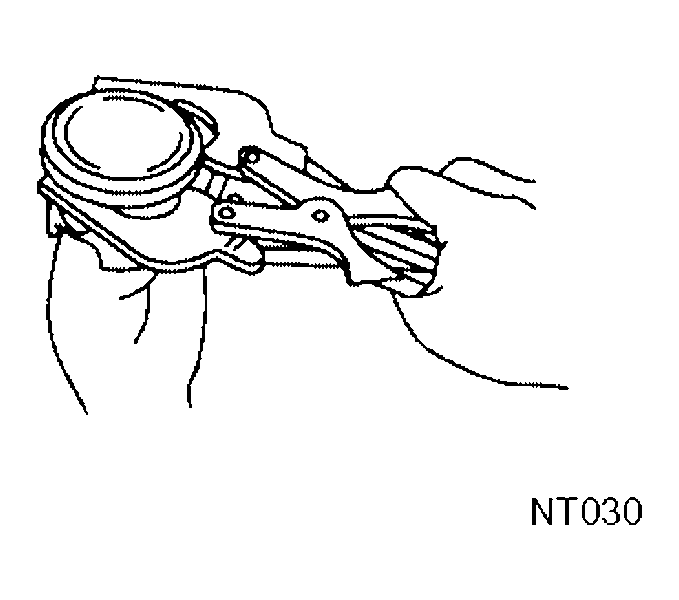

| Piston ring expander | Removing and installing piston ring | |

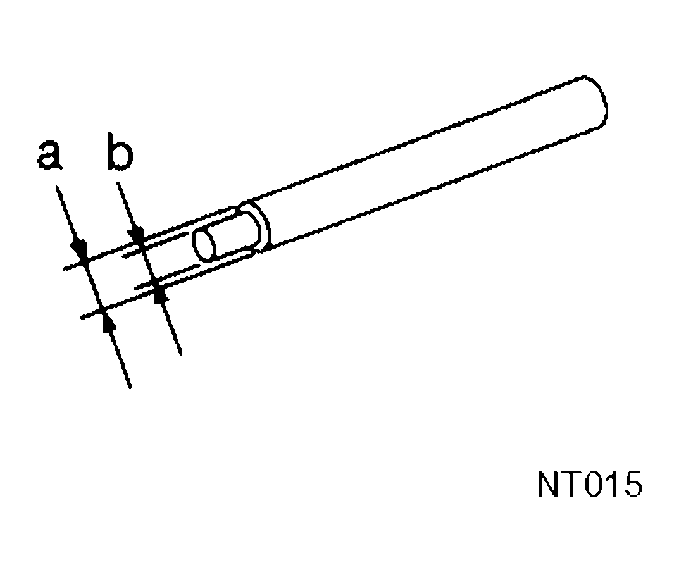

| Valve guide drift | Removing and installing valve guide Intake & Exhaust: a = 9.5 (0.374) dia. b = 5.5 (0.217) Unit: mm (in) |
|
| Valve guide reamer | Reaming valve guide 1 or hole for oversize valve guide 2 Intake & Exhaust: d1 = 6.0 (0.236) dia. d2 = 10.175 - 10.196 (0.4006 - 0.4014) Unit: mm (in) |
|

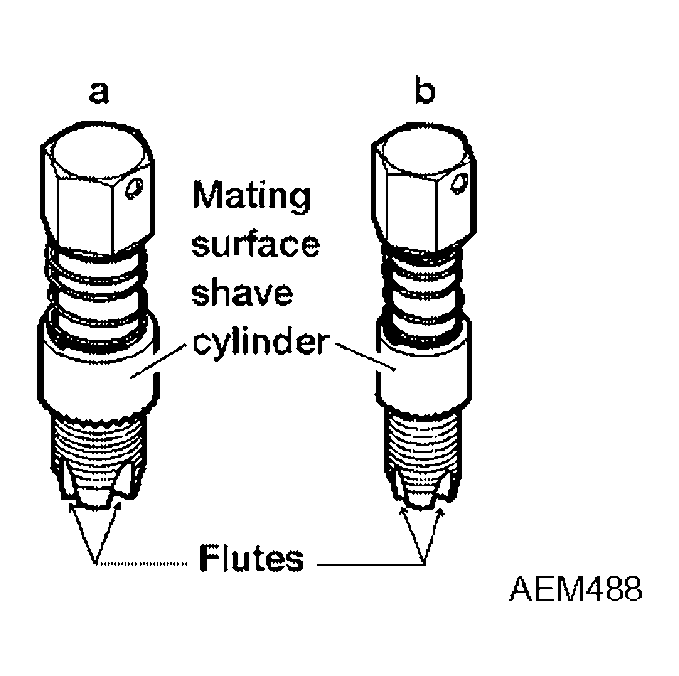

| (J-43897-18) (J-43897-12) Oxygen sensor thread cleaner |
Reconditioning the exhaust system threads before installing a new heated oxygen sensor (Use with anti-seize lubricant shown below.) a = (J-43897-18) 18 mm (0.71 in) for zirconia heated oxygen sensor b = (J-43897-12) 12 mm (0.47 in) for Titania heated oxygen sensor |
|
| Anti-seize lubricant (Permatex 133AR or equivalent meeting MIL specification MIL-A-907) | Lubricating heated oxygen sensor thread cleaning tool when reconditioning exhaust system threads |
