Commercial Service Tools
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
COMMERCIAL SERVICE TOOLS
| Tool name | Description | |
|---|---|---|

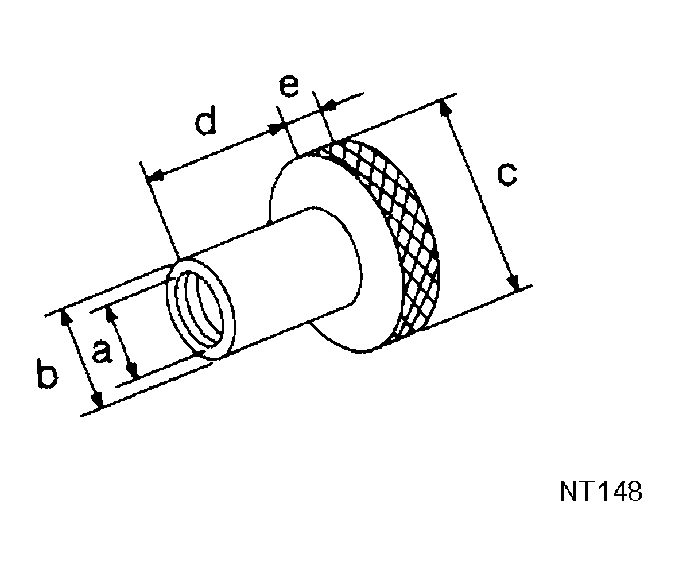

| Attachment wheel alignment | Measure wheel alignment a: Screw M24 x 1.5 pitch b: 35 mm (1.38 in) dia. c: 65 mm (2.56 in) dia. d: 56 mm (2.20 in) e: 12 mm (0.47 in) |
|
|

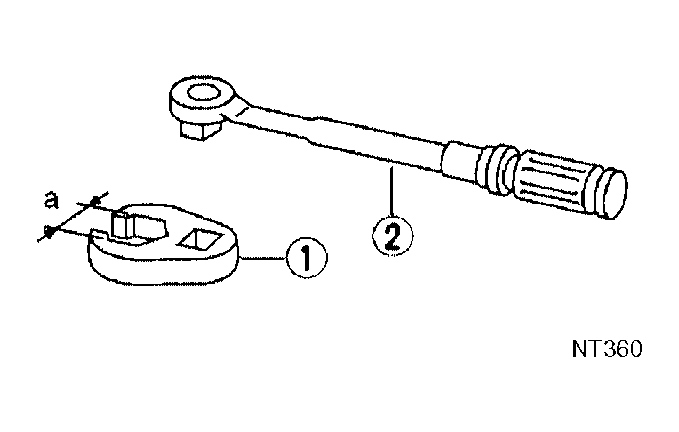

Removing and installing each brake piping a: 10 mm (0.39 in) |
|

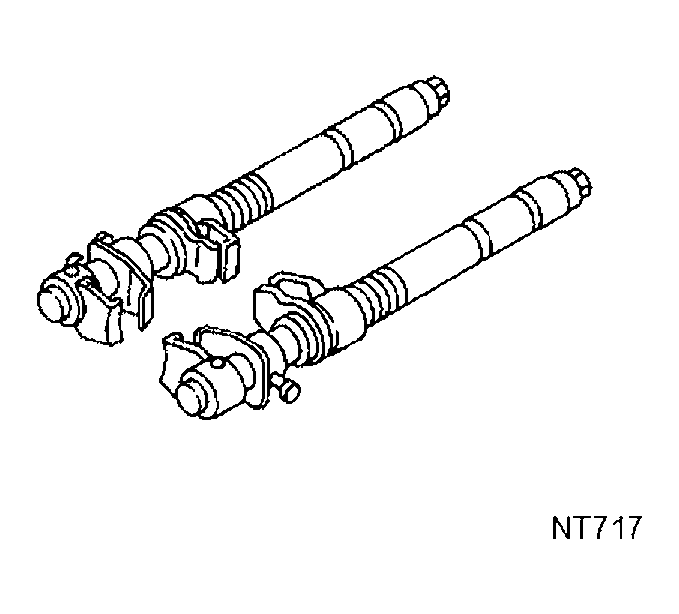

| Spring compressor | Removing and installing coil spring | |

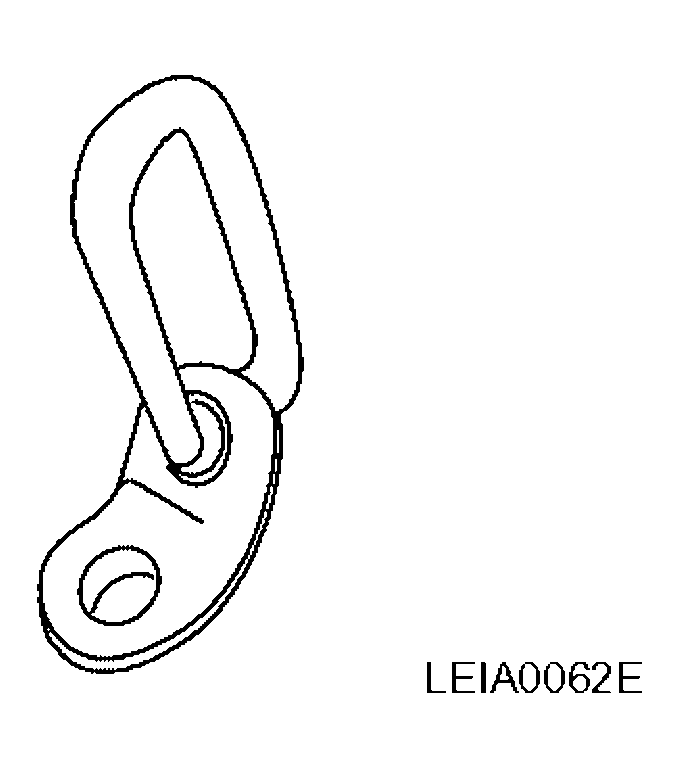

| Engine lifting bracket | Removing and installing suspension member with 5A/T | |
| Power tool | Loosening bolts and nuts |
