Special Service Tools
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
SPECIAL SERVICE TOOLS DESCRIPTION
| Tool number (Kent-Moore No.) Tool name |
Description | |
|---|---|---|

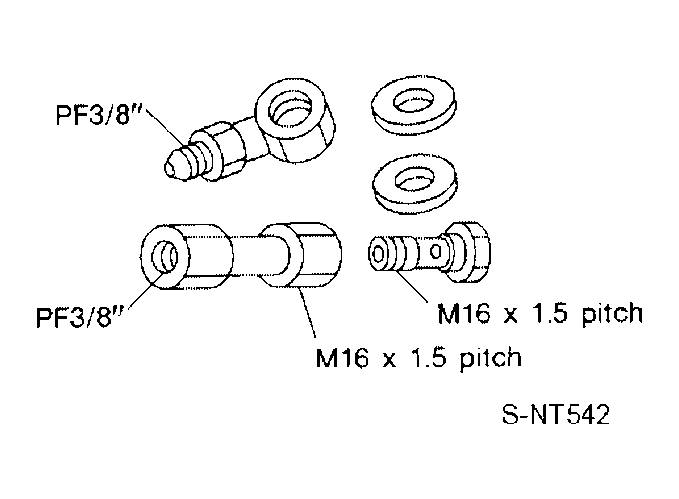

| KV48102500 (J-33914) Pressure gauge adapter |
Measuring oil pressure | |

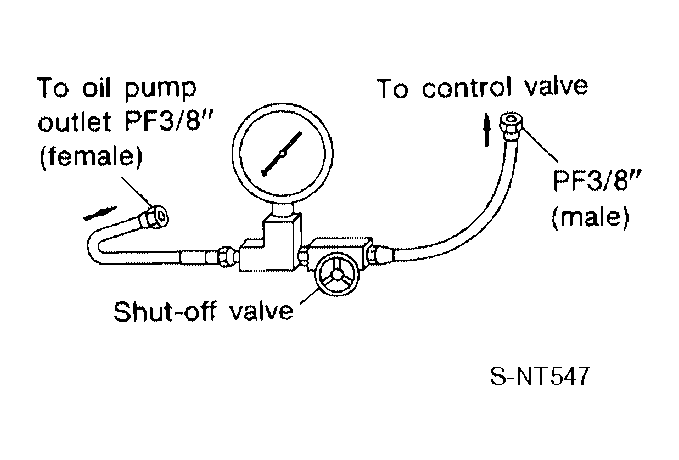

| KV48103500 (J-26357 and J-26357-10) Pressure gauge |
Measuring oil pressure | |
| HT72520000 (J-25730-A) Ball joint remover |
Removing ball joint | |

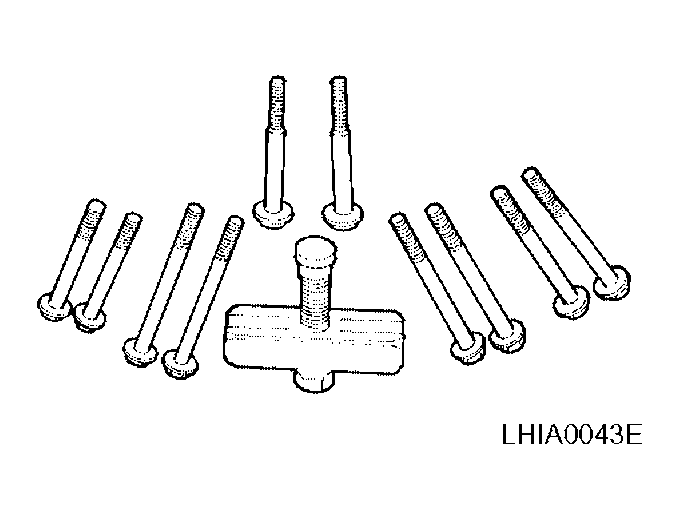

| KV481J0010 (J-1859-A) Steering wheel puller |
Removing steering wheel | |

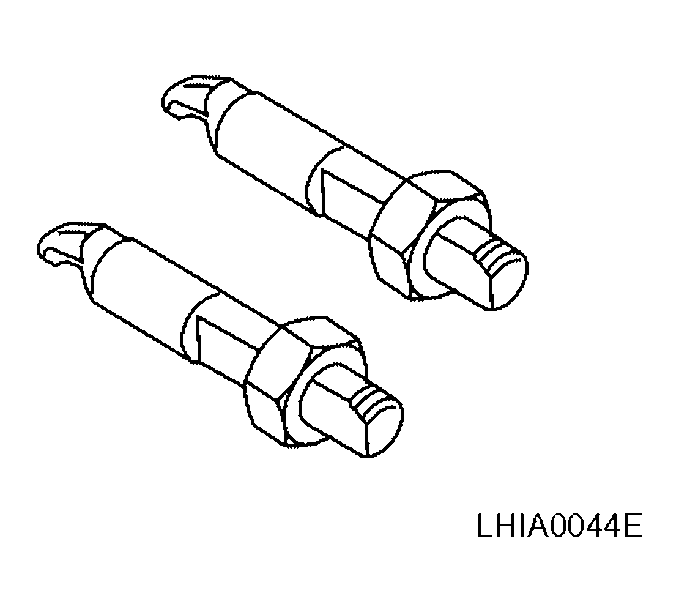

| KV481J0020 (J-42578) Steering wheel puller legs |
Removing steering wheel |
