Pinch Strip System Inspection

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

PINCH STRIP SIGNAL INSPECTION

Turn ignition switch OFF.

While operating the pinch strip, check voltage between back door control unit connector B55 terminals 19 (RH), 20 (LH) and ground.

TERMINALS VOLTAGE REFERENCE

Terminals		Measuring condition	Voltage (V) (Approx.)
( + )	( - )	Measuring condition	Voltage (V) (Approx.)
19 20	Ground	Pinch strip operation	0
19 20	Ground	Other	4

OK or NG

OK: Switch is OK.

NG: GO TO 2.

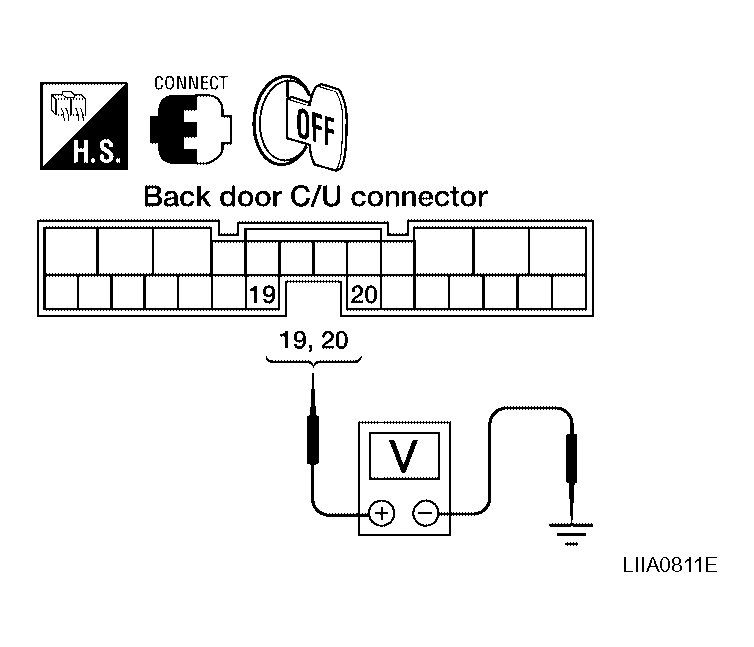

Fig 1: Identifying Voltage Between Back Door Control Unit Connector B55 Terminals 19 (RH), 20 (LH) And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

PINCH STRIP CIRCUIT INSPECTION
1. Disconnect pinch strip and back door control unit.
2. Check continuity between pinch strip connector (B) D505 (RH), D517 (LH) terminals 1, 2 and back door control unit connector (A) B55 terminals 5, 19 (RH), 20 (LH).
  1 - 19: Continuity should exist.

  1 - 20: Continuity should exist.

  2 - 5: Continuity should exist.

  Fig 2: Identifying Continuity Between Pinch Strip Connector D505 (RH), D517 (LH) Terminal 1And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check continuity between pinch strip connector (B) D505 (RH), D517 (LH) terminal 1and ground.
  1 - Ground: Continuity should not exist.
OK or NG

OK: GO TO 3.

NG: Repair or replace harness.
PINCH STRIP GROUND INSPECTION
Check continuity between pinch strip connector terminal 2 and ground.

2 - Ground: Continuity should exist.

OK or NG

OK: Replace the pinch strip.

NG: Repair or replace harness.

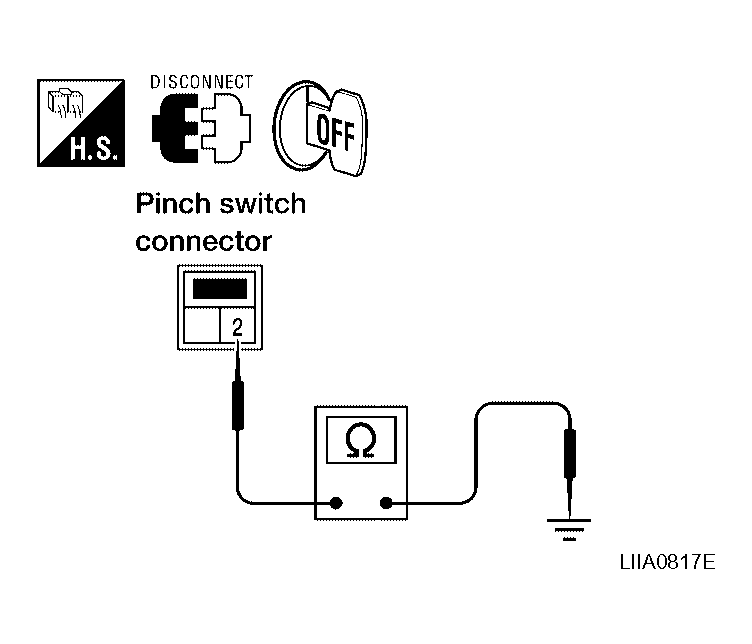

Fig 3: Identifying Continuity Between Pinch Strip Connector Terminal 2 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
