AUTOMATIC DOOR MAIN SWITCH FUNCTION INSPECTION
Check automatic door main switch using switch operation.

OK or NG

OK: Automatic door main switch is OK.

NG: GO TO 2.

AUTOMATIC DOOR MAIN SWITCH SIGNAL INSPECTION

Turn ignition switch OFF.

While operating the automatic door main switch, check voltage between sliding door control unit connector B60 (LH) or B143 (RH) terminal 1 and ground.

TERMINALS VOLTAGE REFERENCE

Terminal		Measuring condition		Voltage (V) (Approx.)
( + )	( - )	Measuring condition		Voltage (V) (Approx.)
1	Ground	Automatic door main switch	ON	0
1	Ground	Automatic door main switch	OFF	5

OK or NG

OK: Automatic door main switch is OK.

NG: GO TO 3.

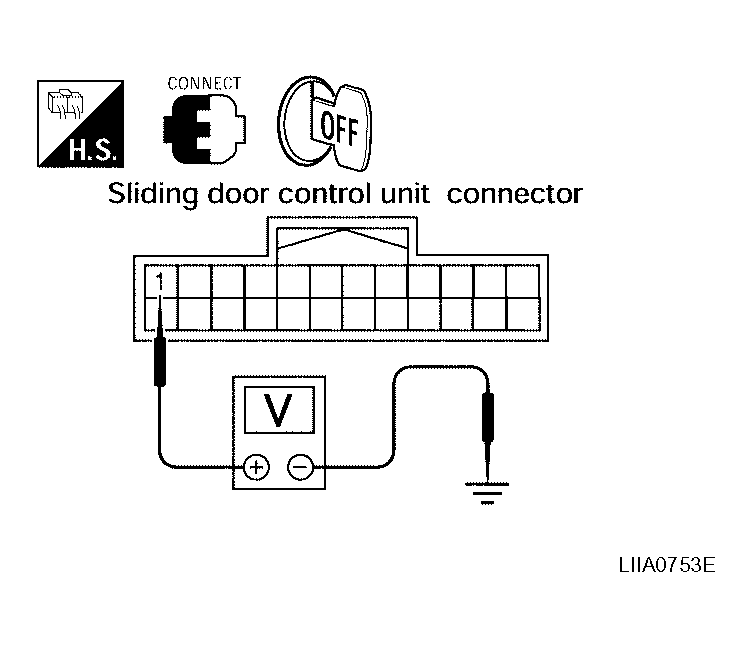

Fig 1: Identifying Voltage Between Sliding Door Control Unit Connector B60 (LH) Or B143 (RH) Terminal 1 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

AUTOMATIC DOOR MAIN SWITCH CIRCUIT INSPECTION
1. Disconnect automatic door main switch and sliding door control unit.
2. Check continuity between automatic door main switch connector R10 terminals 3 (LH) or 4 (RH) and sliding door control unit connector B60 (LH) or B143 (RH) terminal 15.
  3 - 15: Continuity should exist.

  4 - 15: Continuity should exist.
OK or NG

OK: Replace automatic door main switch.

NG: Repair or replace harness.

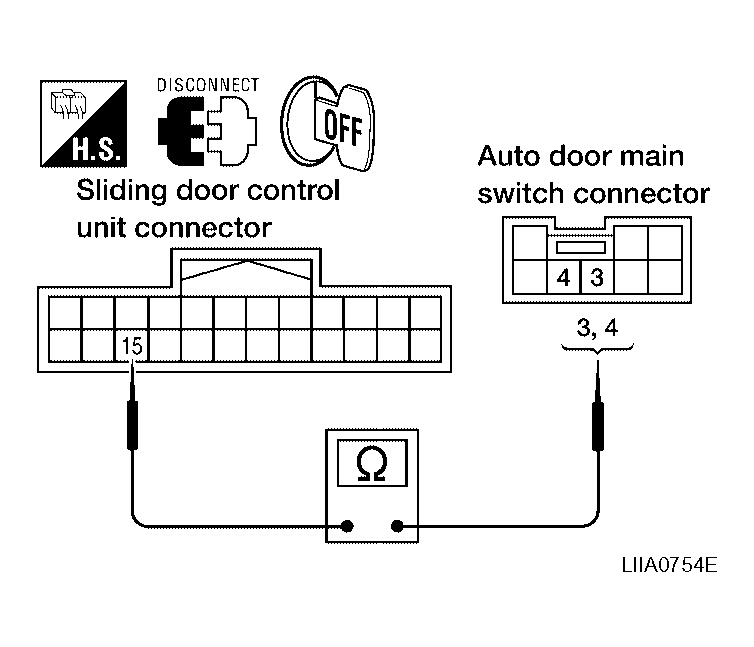

Fig 2: Identifying Automatic Door Main Switch & Sliding Door Control Unit Connector Terminals
