Child Lockout Switch System Inspection

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHILD LOCKOUT SWITCH SIGNAL INSPECTION

Turn ignition switch OFF.
Set child lockout switch in LOCK position and close door.

While operating the sliding door in the open direction, check voltage between sliding door control unit connector B60 (LH) or B143 (RH) terminal 16 and ground.

TERMINALS VOLTAGE REFERENCE

Terminal		Measuring condition	Voltage (V) (Approx.)
( + )	( - )	Measuring condition	Voltage (V) (Approx.)
16	Ground	Sliding door handle in the open direction	0

OK or NG

OK: Switch is OK.

NG: GO TO 2.

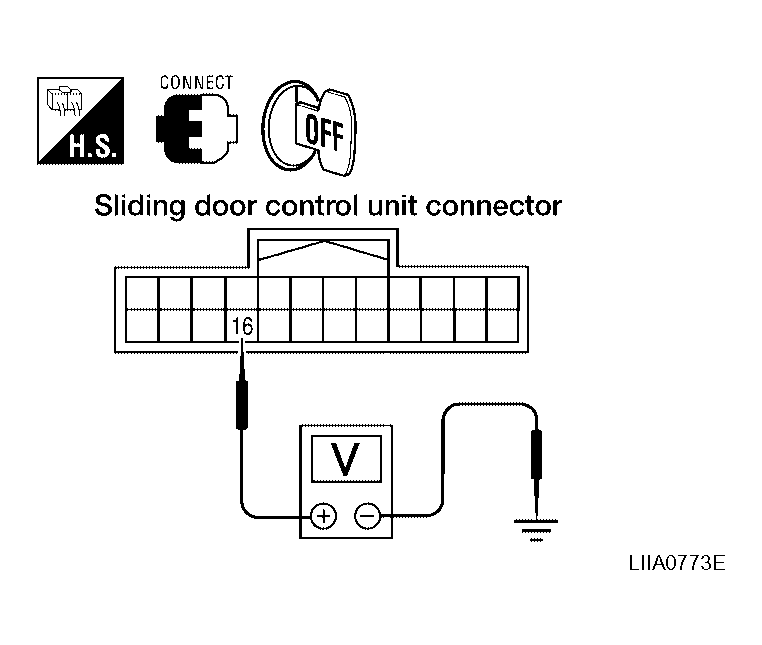

Fig 1: Identifying Voltage Between Sliding Door Control Unit Connector B60 (LH) Or B143 (RH) Terminal 16 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHILD LOCKOUT SWITCH CIRCUIT INSPECTION
1. Disconnect sliding door remote control switch and sliding door control unit.
2. Check continuity between sliding door remote control switch connector D207 (LH) or D307 (RH) terminal 2 and sliding door control unit connector D204 (LH) or D304 (RH) terminal 16.
  2 - 16: Continuity should exist.
OK or NG

OK: GO TO 3.

NG: Repair or replace harness.

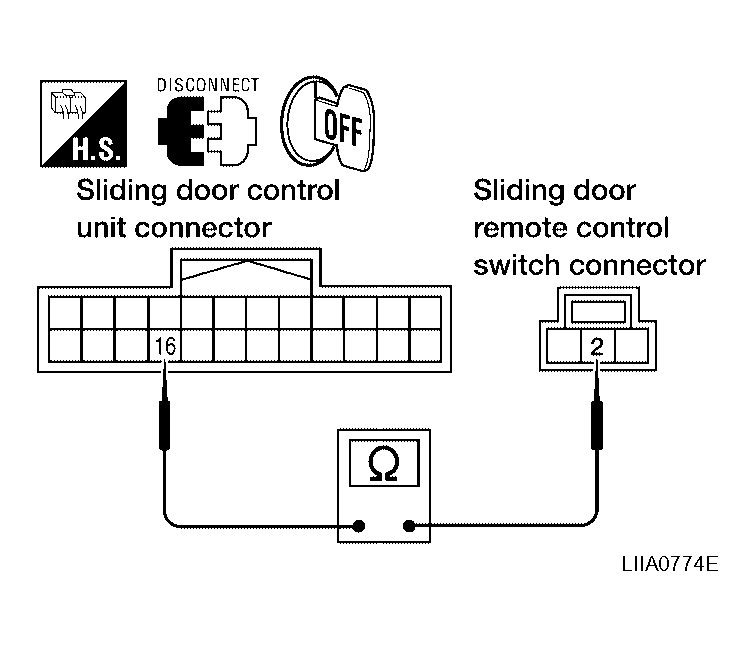

Fig 2: Identifying Continuity Between Sliding Door Remote Control Switch Terminal And Sliding Door Control Unit Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
CHILD LOCKOUT SWITCH GROUND INSPECTION
1. Close the sliding door.
2. Check continuity between sliding door remote control switch connector D207 (LH) or D307 (RH) terminal 3 and ground.
  3 - Ground: Continuity should exist.
OK or NG

OK: Replace the sliding door remote control switch.

NG: Repair or replace harness.

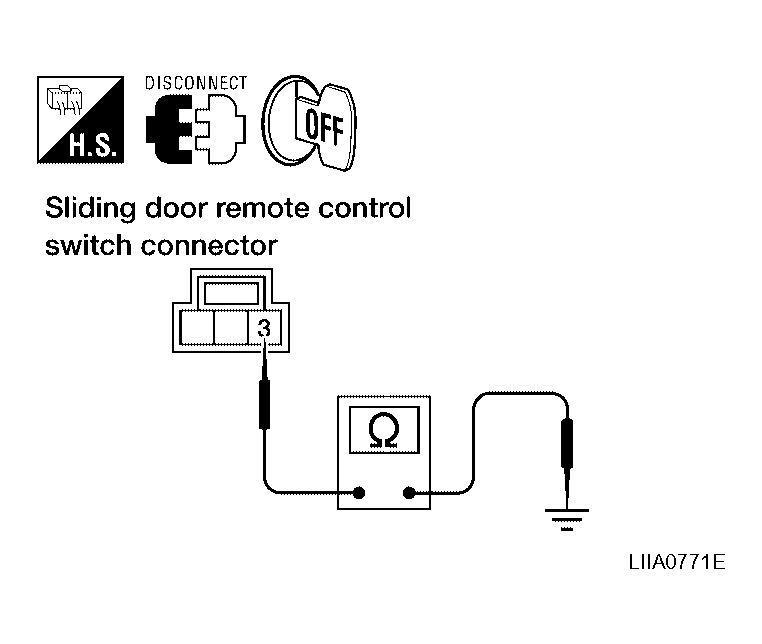

Fig 3: Identifying Continuity Between Sliding Door Remote Control Switch Connector D207 (LH) Or D307 (RH) Terminal 3 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
