Sliding Door Open/Close Switch System Inspection
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- SLIDING DOOR OPEN/CLOSE SWITCH FUNCTION INSPECTION
Check sliding door open/close switch using switch operation.
OK or NG
OK: Sliding door open/close switch is OK.
NG: GO TO 2.
- SLIDING DOOR OPEN/CLOSE SWITCH SIGNAL INSPECTION
- Turn ignition switch OFF.

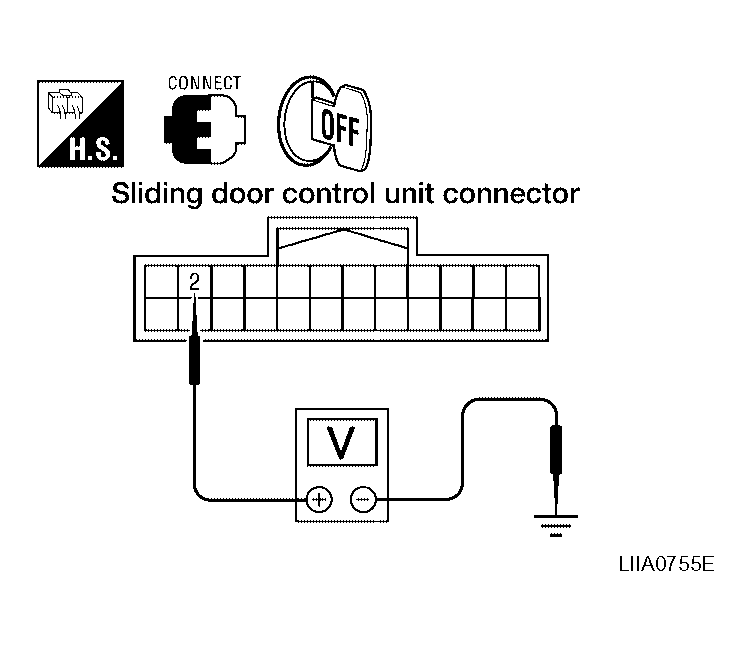

- While operating the sliding door open/close switch, check voltage between sliding door control unit connector B60 (LH) or B143 (RH) terminal 2 and ground.TERMINALS VOLTAGE REFERENCE
Terminal Measuring condition Voltage (V) (Approx.) ( + ) ( - ) 2 Ground Automatic door main switch ON 0 OFF 5
OK or NG
OK: Sliding door open/close switch is OK.
NG: GO TO 3.
- SLIDING DOOR OPEN/CLOSE SWITCH CIRCUIT INSPECTION
- Disconnect sliding door open/close switch and sliding door control unit.

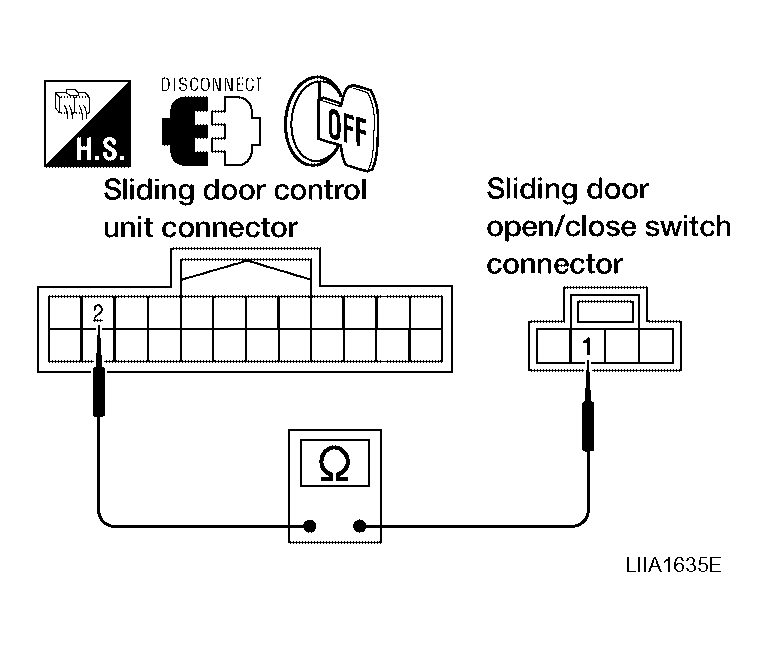

- Check continuity between sliding door open/close switch connector B58 (LH) or B140 (RH) terminal 1 and sliding door control unit connector B60 (LH) or B143 (RH) terminal 2.
1 - 2: Continuity should exist.
OK or NG
OK: GO TO 4.
NG: Repair or replace harness.
- SLIDING DOOR OPEN/CLOSE SWITCH GROUND INSPECTION

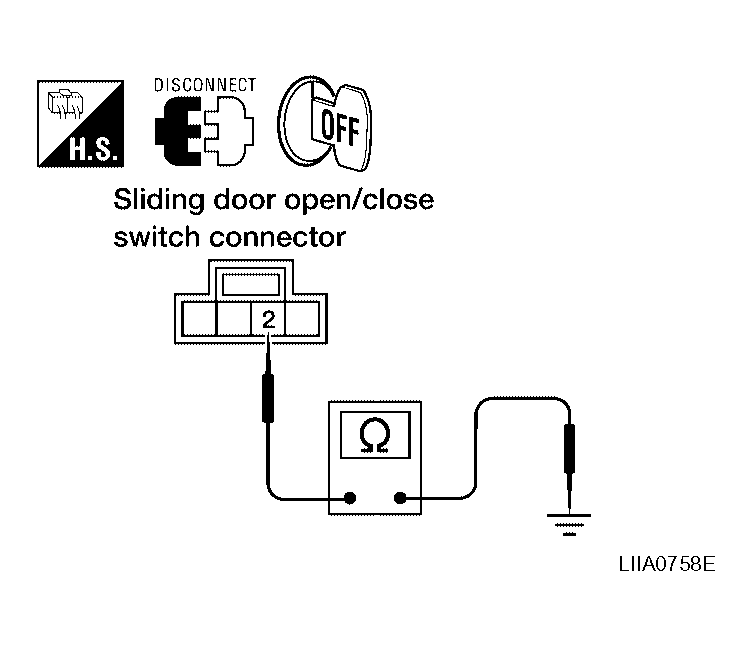

Check continuity between sliding door open/close switch connector B58 (LH) or B140 (RH) terminal 2 and ground.
2 - Ground: Continuity should exist.
OK or NG
OK: Replace the sliding door open/close switch.
NG: Repair or replace harness.
