Sliding Door Remote Control Switch System Inspection

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

SLIDING DOOR REMOTE CONTROL SWITCH FUNCTION INSPECTION
Check sliding door remote control switch operation.

OK or NG

OK: Sliding door remote control switch is OK.

NG: GO TO 2.

SLIDING DOOR REMOTE CONTROL SWITCH SIGNAL INSPECTION

Turn ignition switch OFF.
Close the sliding door.

While operating the sliding door remote control switch, check voltage between sliding door latch control unit connector D204 (LH) or D304 (RH) terminal 5 and ground.

TERMINALS VOLTAGE REFERENCE

Terminal		Measuring condition	Voltage (V) (Approx.)
( + )	( - )	Measuring condition	Voltage (V) (Approx.)
5	Ground	Sliding door handle open direction operation	0
5	Ground	Other than above	5

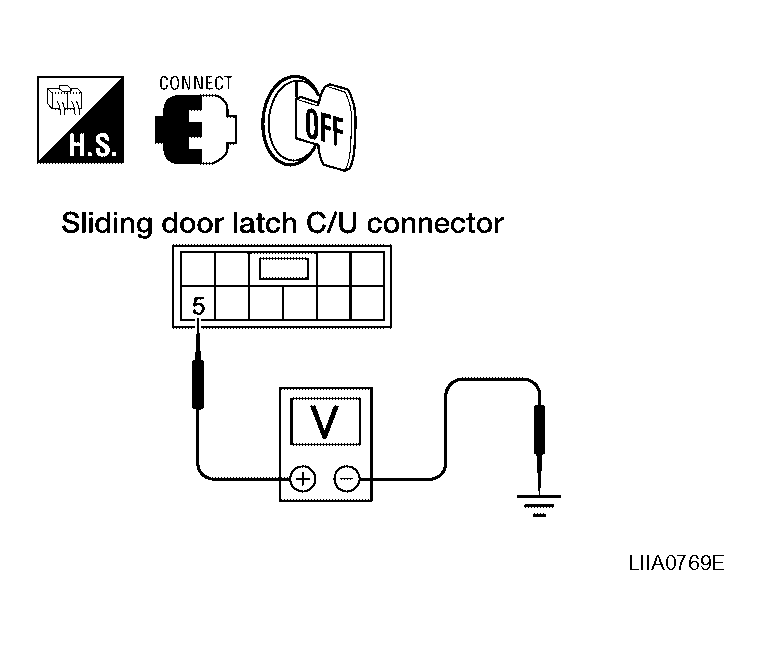

Fig 1: Identifying Voltage Between Sliding Door Latch Control Unit Connector D204 (LH) Or D304 (RH) Terminal 5 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Sliding door remote control switch is OK.

NG: GO TO 3.

SLIDING DOOR REMOTE CONTROL SWITCH CIRCUIT INSPECTION
1. Disconnect sliding door remote control switch and sliding door latch control unit.
2. Check continuity between sliding door remote control switch connector D207 (LH) or D307 (RH) terminal 1 and sliding door latch control unit connector D204 (LH) or D304 (RH) terminal 5.
  1 - 5: Continuity should exist.
OK or NG

OK: GO TO 4.

NG: Repair or replace harness.

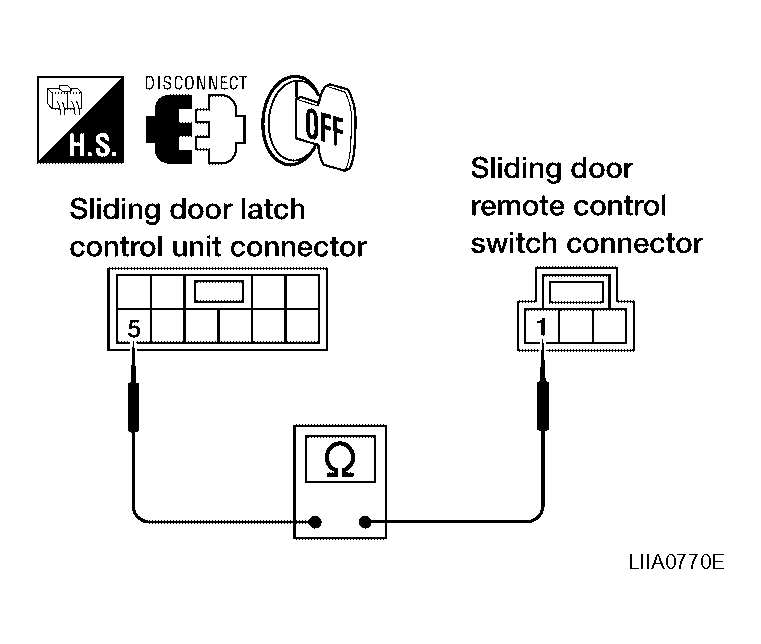

Fig 2: Identifying Continuity Between Sliding Door Remote Control Switch Terminal And Sliding Door Latch Control Unit Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
SLIDING DOOR REMOTE CONTROL SWITCH GROUND INSPECTION
1. Close the sliding door.
2. Check continuity between sliding door remote control switch connector D207 (LH) or D307 (RH) terminal 3 and ground.
  3 - Ground: Continuity should exist.
OK or NG

OK: Replace the sliding door remote control switch.

NG: Repair or replace harness.

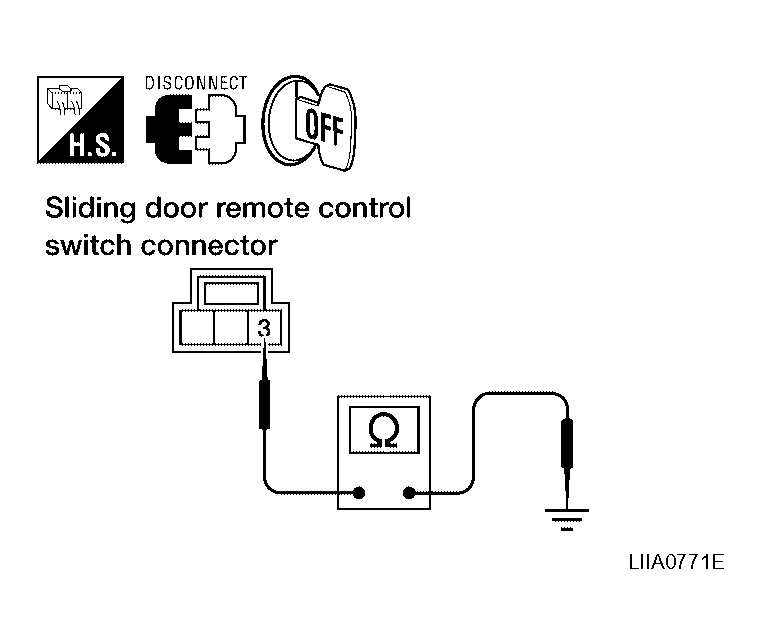

Fig 3: Identifying Continuity Between Sliding Door Remote Control Switch Connector D207 (LH) Or D307 (RH) Terminal 3 And Ground
