Terminals and Reference Value for Sliding Door Control Unit RH
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
SLIDING DOOR CONTROL UNIT RH TERMINALS AND REFERENCE VALUE
| Terminal | Wire Color | Item | Condition | Voltage (V) (Approx.) |
|---|---|---|---|---|
| 1 | L/Y | Automatic door main switch ON/OFF switch | Automatic door main switch ON | 0 |
| Automatic door main switch OFF | 5 | |||
| 2 | BR/W | Sliding door open/close switch | Sliding door open/close switch ON | 0 |
| Sliding door open/close switch OFF | 5 | |||
| 3 | P/G | Sliding door lock/unlock actuator unlock output signal | Power door lock switch door unlock operation | 0 --> Battery voltage --> 0 |
| Other than above | 0 | |||

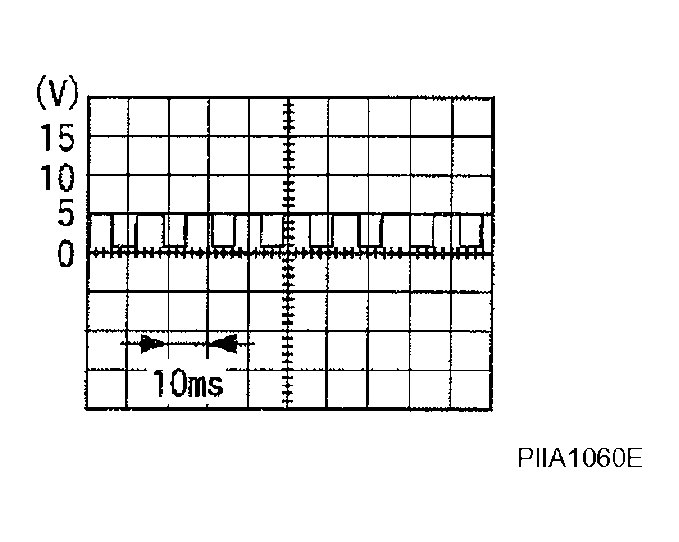

| 4 | W/B | Encoder pulse signal A | Sliding door (motor active) | |

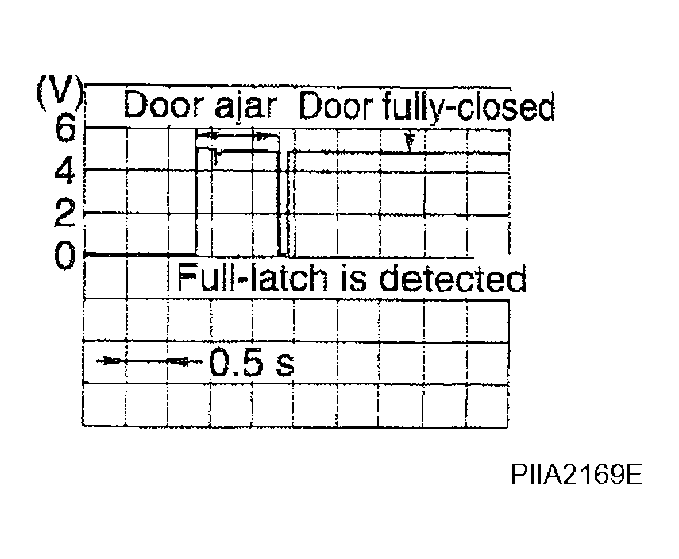

| 5 | O/B | Half-latch switch | Sliding door Fully open --> half --> fully closed | |
| 6 | G | Ignition switch | Ignition switch ON | Battery voltage |
| Ignition switch OFF | 0 | |||

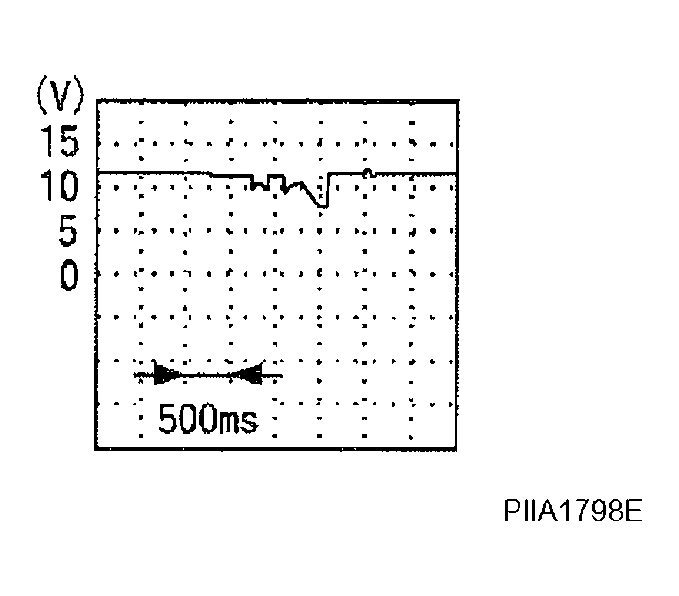

| 7 | Y/B | Power window serial link | When ignition switch is ON or power window timer operates | |
| 8 | Y/G | Warning chime output signal | Warning chime ON | 0 |
| Warning chime OFF | Battery voltage | |||
| 11 | G | Encoder power supply | - | 9 |
| 12 | Y/R | Battery power supply | - | Battery voltage |
| 14 | R/W | Sliding door switch | OPEN | 0 |
| CLOSED | 5 | |||
| 15 | GR/W | Automatic door main switch | ON | 0 |
| OFF | 5 | |||
| 16 | L | Child lockout switch | ACTIVE | 5 |
| INACTIVE | 0 | |||
| 17 | R/B | Encoder pulse signal B | Sliding door (motor active) | Battery voltage |
| 18 | G/Y | A/T device (park position switch) | P position | 0 |
| Other than above | 5 | |||
| 22 | B | Encoder ground | - | - |
| 23 | B | Ground | - | - |

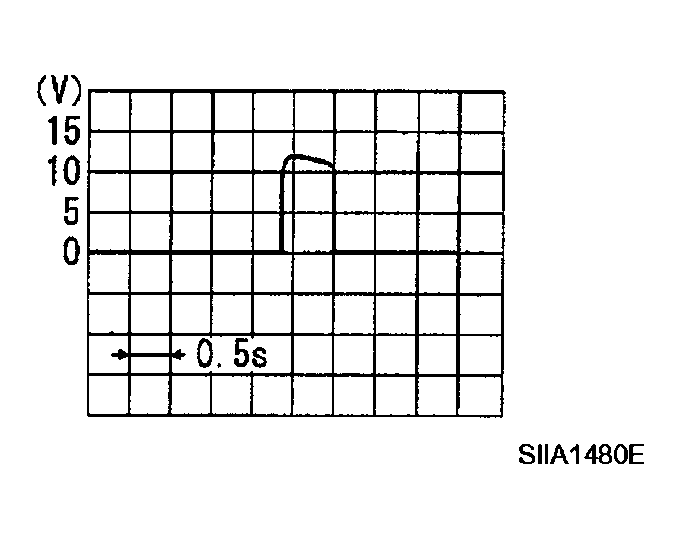

| 26 | GR/L | Closure motor CLOSE output signal | Sliding door Fully open --> half --> fully closed |
|
| 27 | W | Battery power supply | - | Battery voltage |
| 28 | G/Y | Door unlock input | Door lock & unlock switch (Neutral --> Unlock) | 0 --> Battery voltage |
| 30 | BR/R | Sliding door lock motor unlock signal | Door lock (Neutral --> Unlock) | 0 --> Battery voltage |
| 31 | Y | Closure motor RETURN output signal | Sliding door Fully open --> half --> fully closed |
|
| 32 | B | Ground | - | - |
| 33 | R | Sliding door motor OPEN output signal | Sliding door auto OPEN operation (motor active) | Battery voltage |
| Other than above | 0 | |||
| 34 | Y | Magnetic clutch power supply | Auto sliding door (motor active) | Battery voltage --> 0 |
| 36 | B | Sliding door motor CLOSE output signal | Sliding door auto CLOSE operation (motor active) | Battery voltage |
| Other than above | 0 | |||
| 37 | Y | Magnetic clutch ground | - | - |
