Terminals and Reference Value for Sliding Door Latch Control Unit
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
SLIDING DOOR LATCH CONTROL UNIT TERMINALS AND REFERENCE VALUE
| Terminal | Wire Color | Item | Condition | Voltage (V) (Approx.) |
|---|---|---|---|---|

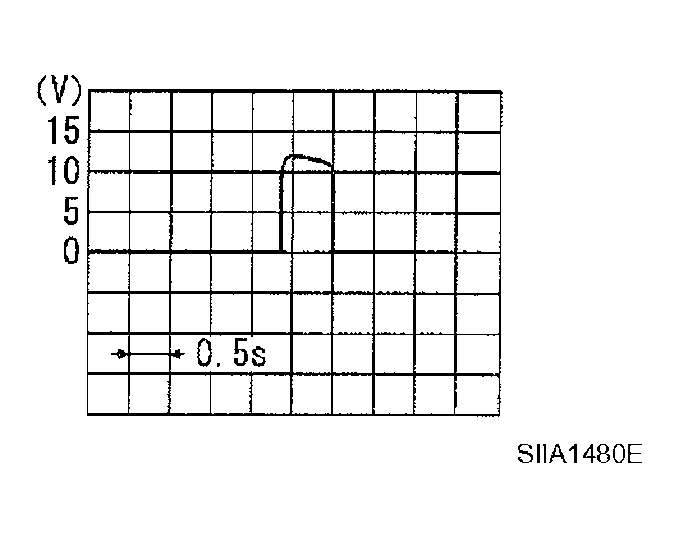

| 1 | G | Neutral switch signal | Sliding door Fully open --> half --> fully closed |
|

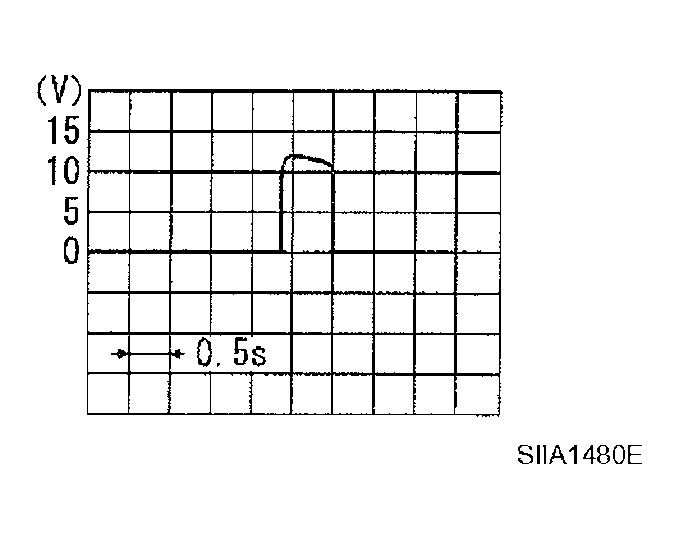

| 2 | Y | Cinch latch motor RETURN signal | Sliding door Fully open --> half --> fully closed |
|
| 3 | G/B | Cinch latch motor CLOSE output | Latch Open (ON) --> Close (OFF) | Battery voltage --> 0 |
| Other than above | 0 | |||
| 5 | SB | Handle switch (open) signal | Handle operation | 0 |
| Other than above | 5 | |||

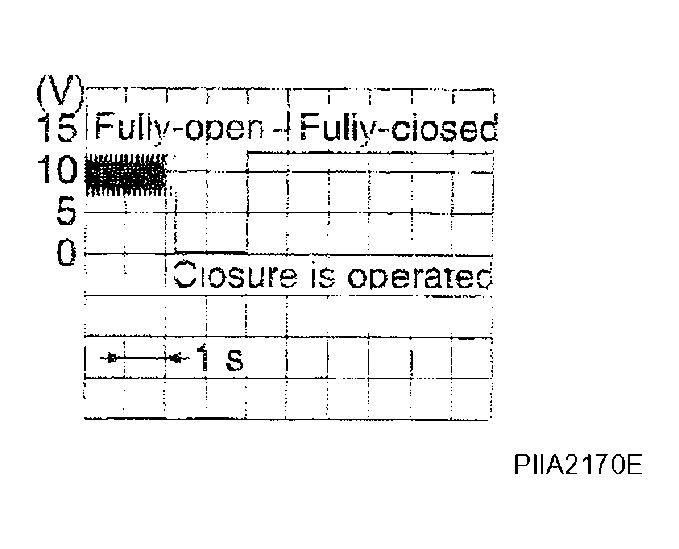

| 6 | GR/L | Cinch latch motor CLOSE signal | Sliding door Fully open --> half --> fully closed |
|

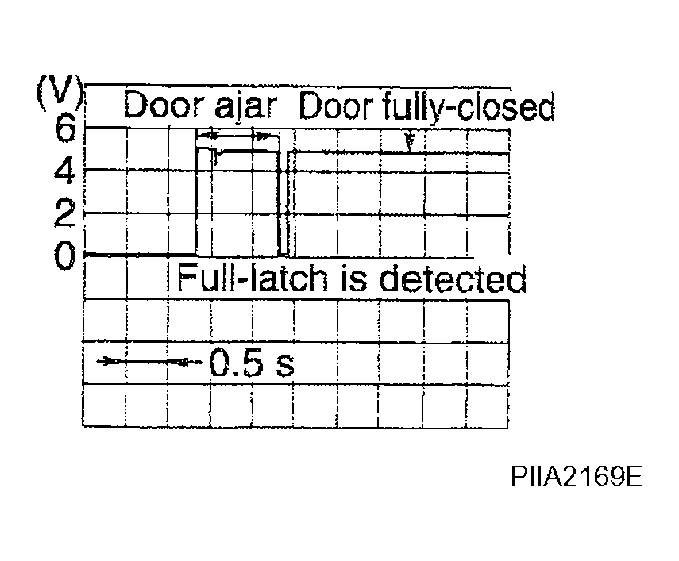

| 7 | LG | Full-latch switch signal | Sliding door Fully open --> half --> fully closed |
|

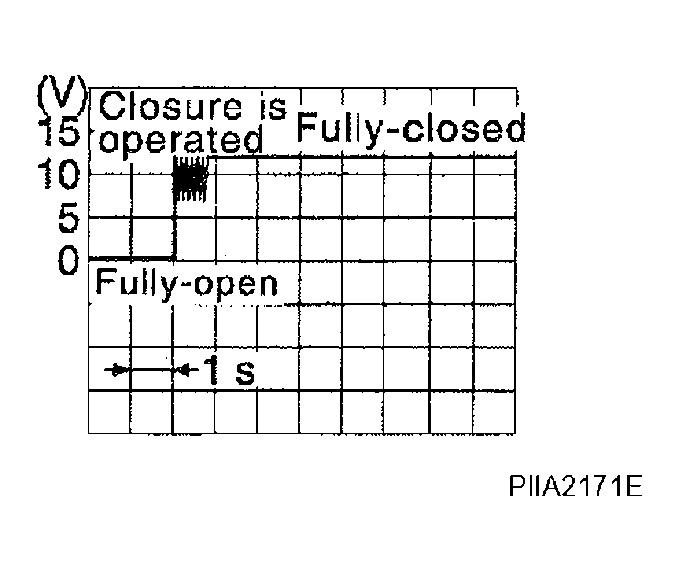

| 8 | O/B | Half-latch switch signal | Sliding door Fully open --> half --> fully closed |
|
| 9 | L/B | Cinch latch motor OPEN output | Latch Close (OFF) --> Open (ON) | Battery voltage --> 0 |
| Other than above | 0 | |||
| 10 | R/W | Latch release actuator output | Latch (Lock --> Unlock) | Battery voltage --> 0 |
| Other than above | 0 |
