ACC Power Check

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ACC POWER

With CONSULT-II

Check "ACC ON SW" in DATA MONITOR mode with CONSULT-II. Refer to "DATA MONITOR ".

MONITOR ITEM AND CONDITION REFERENCE

Monitor Item	Condition
ACC ON SW	Ignition switch position is ACC	: ON
ACC ON SW	Ignition switch position is OFF	: OFF

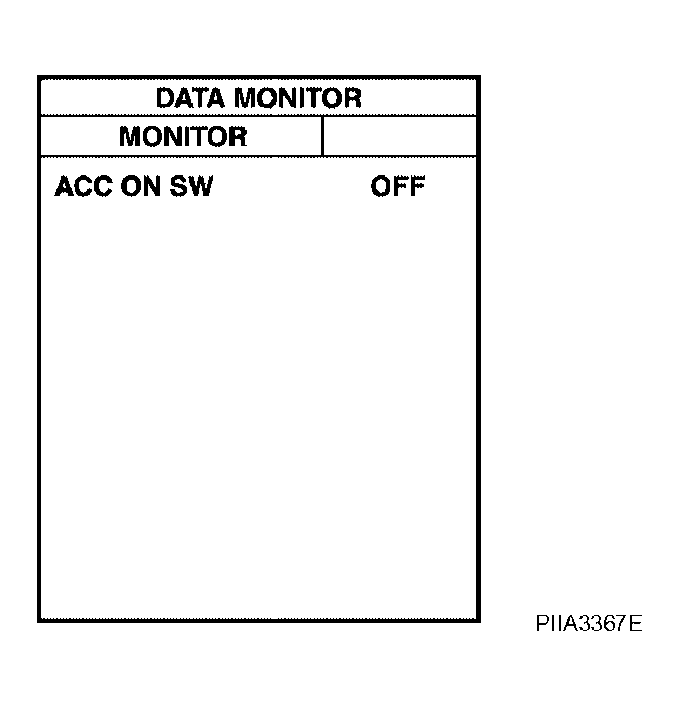

Fig 1: Display CONSULT-II - Data Monitor Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector M18 terminal 11 and ground.

TERMINALS VOLTAGE REFERENCE

Connector	Terminal		Condition	Voltage (V) (Approx.)
Connector	( + )	( - )	Condition	Voltage (V) (Approx.)
M18	11	Ground	ACC or ON	Battery voltage
M18	11	Ground	OFF	0

OK or NG

OK: ACC power circuit is OK.

NG: Check the following:

10A fuse [No. 4, located in fuse block (J/B)]
Harness for open or short.

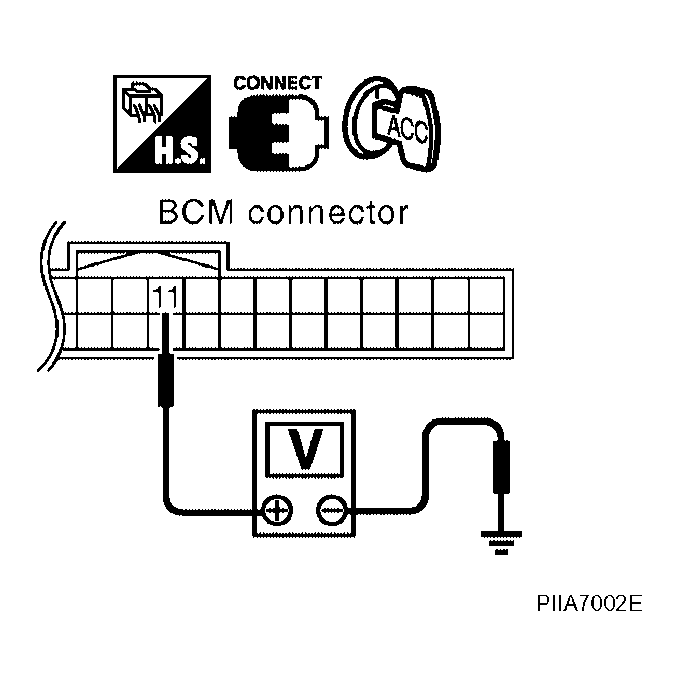

Fig 2: Identifying Voltage Between BCM Connector M18 Terminal 11 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
