Steering Wheel Audio Control Switch Check
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- AV SWITCH SELF-DIAGNOSIS FUNCTION CHECK
- Start AV switch self-diagnosis function. Refer to , "AV SWITCH SELF-DIAGNOSIS FUNCTION ".
- Operate steering wheel audio control switch.
Does steering wheel audio control switch operate normally?
OK: Inspection End.
NG: GO TO 2.
- CHECK HARNESS
- Turn ignition switch OFF.
- Disconnect AV switch connector M98 and spiral cable connector M30.

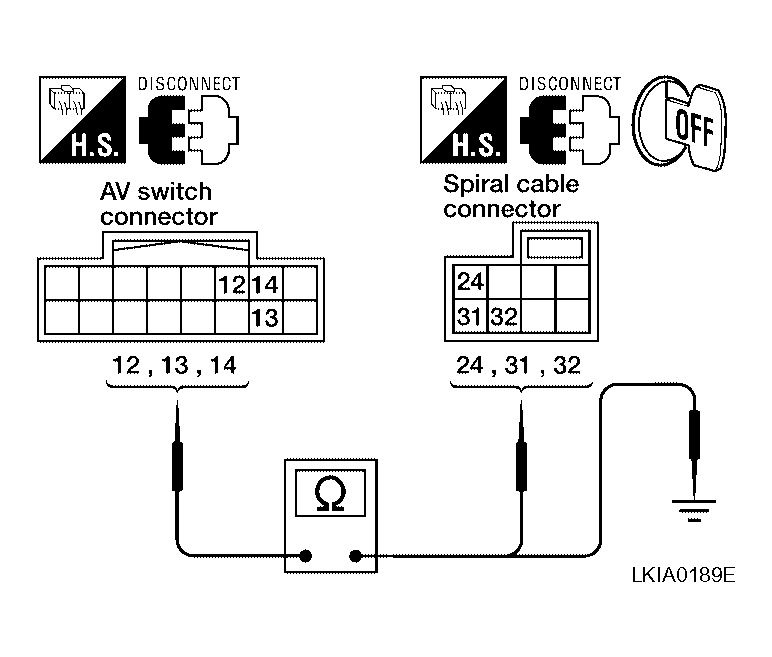

- Check continuity between spiral cable harness connector terminals and AV switch harness connector terminals.SPIRAL CABLE AND AV SWITCH
Terminals Continuity Spiral cable AV switch Connector Terminal Connector Terminal M30 32 M98 13 Yes 31 14 24 12 - Check continuity between AV switch and ground.AV SWITCH AND GROUND
Terminals Continuity AV switch (+) (-) Connector Terminal M98 12 Ground No 13 14
OK or NG
OK: GO TO 2.
NG: Repair harness.
- SPIRAL CABLE CHECK
Check spiral cable harness.
OK or NG
OK: GO TO 4.
NG: Replace spiral cable. Refer to , "SPIRAL CABLE ".
- CHECK STEERING WHEEL AUDIO CONTROL SWITCH RESISTANCE

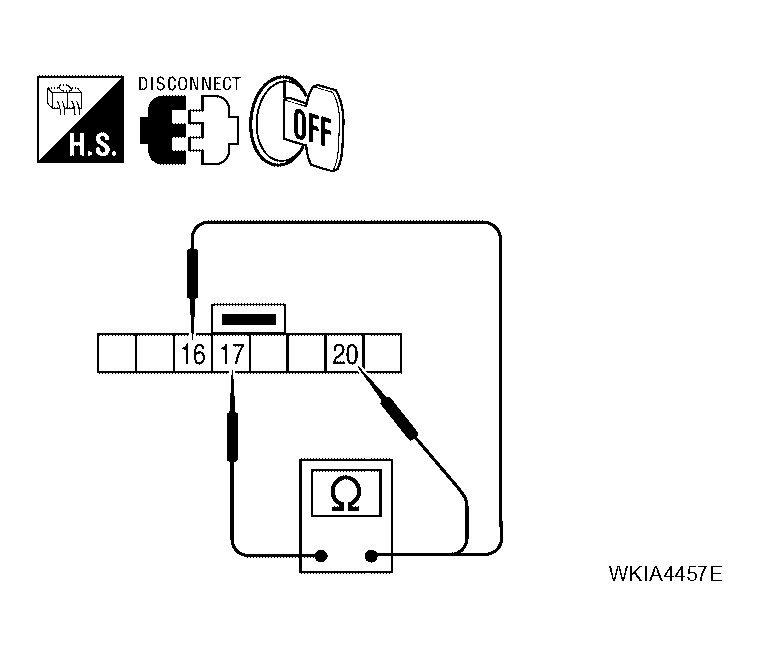

Check resistance between steering wheel audio control switch terminals.
STEERING WHEEL AUDIO CONTROL SWITCH RESISTANCETerminal Signal name Condition Resistance (Ω) (Approx.) (+) (-) 16 17 Seek (down) Depress (station) down switch. 165 Power Depress power switch. 0 Volume (down) Depress volume down switch. 652 20 17 Seek (up) Depress (station) up switch. 165 Mode Depress mode switch. 0 Volume (up) Depress volume up switch. 652 Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
OK: Replace AV switch. Refer to , "AV SWITCH ".
NG: Replace steering wheel audio control switch. Refer to , "STEERING WHEEL AUDIO CONTROL SWITCHES ".
