Removal And Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery negative terminal.
  2. Remove glove box assembly. Refer to , "DISASSEMBLY AND ASSEMBLY ".
  3. Remove the two display control unit screws.
    NOTE: The display control unit screws are located on the side and the bottom of the unit.
  4. Disconnect connectors and remove display control unit.

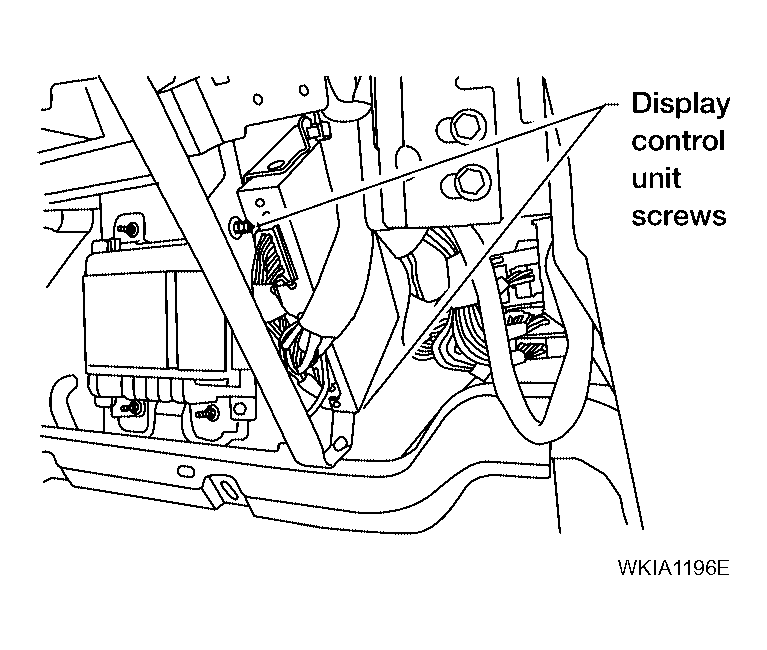

    Fig 1: Identifying Display Control Unit Screws
    G04201850Courtesy of NISSAN MOTOR CO., U.S.A.
