CHECK VOICE GUIDE SETTING
- While driving in the dark green route, voice guide does not operate.
- Is volume setting switched ON?
  NOTE: Voice guide is only available at intersections that satisfy certain conditions (indicated by black circle on the map). Therefore, guidance may not be given even when the route on the map changes direction.
Yes or No

YES: GO TO 2.

NO: Switch the setting ON and turn the volume up.

CHECK HARNESS

Turn ignition switch OFF.
Disconnect NAVI control unit connector P106 and audio unit connector M45.

Check continuity between NAVI control unit and audio unit.

NAVI CONTROL UNIT AND AUDIO UNIT

Terminals				Continuity
B		A
Connector	Terminal	Connector	Terminal
NAVI control unit: P106	12	Audio unit: M45	71	Yes
NAVI control unit: P106	14	Audio unit: M45	69	Yes

Check continuity between NAVI control unit and ground.

NAVI CONTROL UNIT AND GROUND

Terminals			Continuity
B		-
Connector	Terminal	-
NAVI control unit: P106	12	Ground	No
NAVI control unit: P106	14	Ground	No

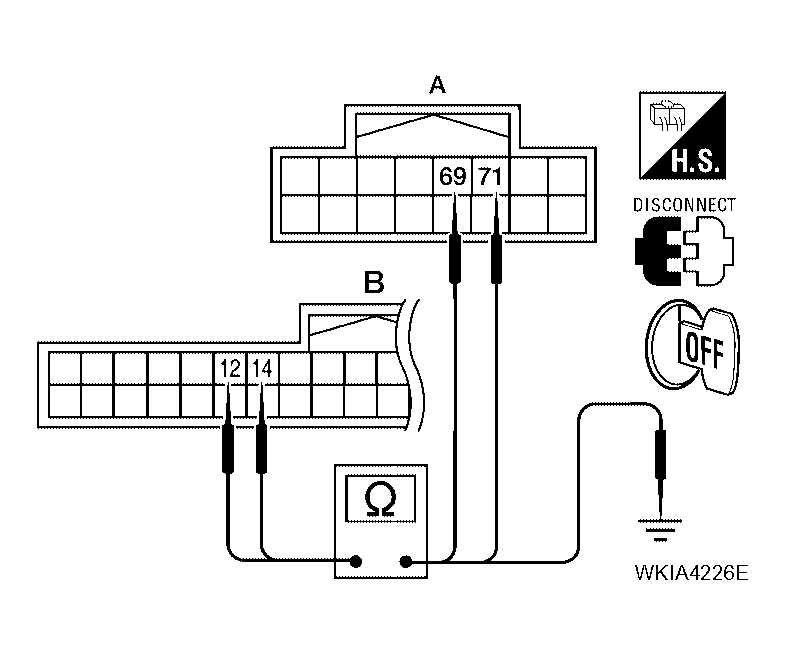

Fig 1: Checking Continuity Between NAVI Control Unit & Audio Unit And NAVI Control Unit & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 3.

NG: Repair harness.

CHECK VOICE GUIDE
1. Connect NAVI control unit connector and audio unit connector.
2. Turn ignition switch ON.
3. Check signal between NAVI control unit harness connector P106 terminal 12 and 14 with CONSULT-ll or oscilloscope.
  12 - 14: Refer to , " TERMINALS AND REFERENCE VALUE FOR NAVI CONTROL UNIT ".

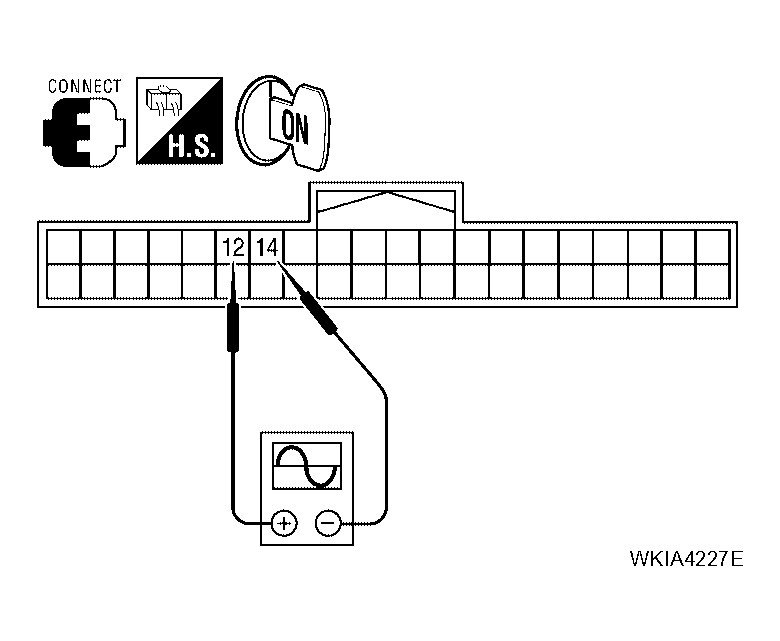

Fig 2: Checking Voice Guide
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace audio unit. Refer to , "AUDIO UNIT ".

NG: Replace NAVI control unit. Refer to , "NAVI CONTROL UNIT ".
