Mirror Sensor RH Circuit Check

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR MIRROR FUNCTION
Check the following items.

Operation malfunction in memory control

NOTE: If a door mirror face position is set to an implausible angle, the set position may not be reproduced.

OK or NG

OK: GO TO 2.

NG: Repair the malfunctioning parts, and check the symptom again.

CHECK MIRROR SENSOR INSPECTION

With CONSULT-II

Check that "ON" is displayed on "MIR/SEN RH R-L, MIR/SEN RH U-D" in the DATA MONITOR.

MONITOR ITEM DESCRIPTION

Monitor item [OPERATION or UNIT]		Contents
MIR/SEN RH R-L	"V"	Voltage output from door mirror RH sensor (LH/RH) is displayed.
MIR/SEN RH U-D	"V"	Voltage output from door mirror RH sensor (UP/DOWN) is displayed.

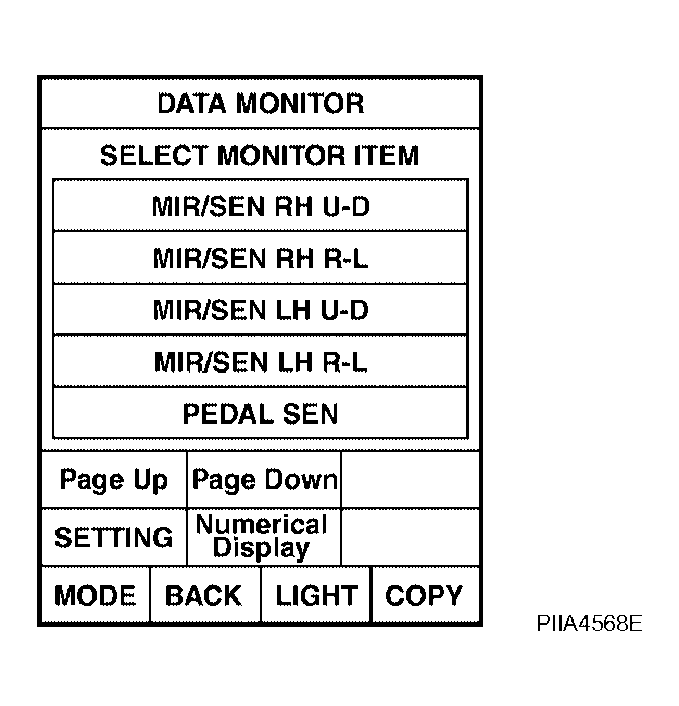

Fig 1: CONSULT-II Screen Display - MIR/SEN RH R-L, MIR/SEN RH U-D In DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Turn ignition switch to ACC.

Check voltage between door mirror RH connector and ground.

TERMINALS VOLTAGE REFERENCE

Connector	Terminals		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
D107	7	Ground	When motor is LEFT or RIGHT operation	Changes between 3.5 (close to left edge) - 0.5 (close to right edge)
D107	6	Ground	When motor is UP or DOWN operation	Changes between 3.5 (close to peak) - 0.5 (close to valley)

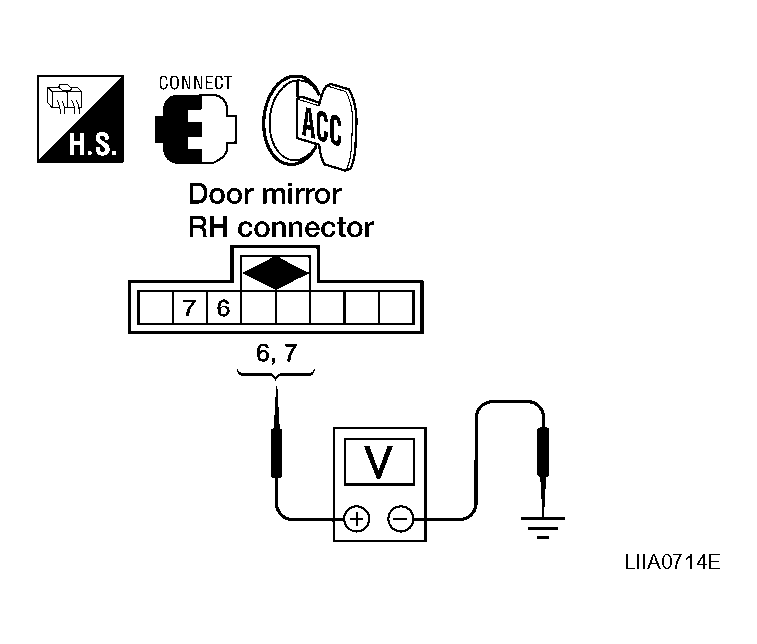

Fig 2: Identifying Voltage Between Door Mirror RH Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Mirror sensor RH is OK.

NG: GO TO 3.

CHECK HARNESS CONTINUITY 1
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mirror RH.
3. Check continuity between automatic drive positioner control unit connector M42 terminals 33, 41 and door mirror RH connector D107 terminals 5, 8.
  33 - 5: Continuity should exist.

  41 - 8: Continuity should exist.
4. Check continuity between automatic drive positioner control unit connector M42 terminals 33, 41 and ground.
  33 - Ground: Continuity should not exist.

  41 - Ground: Continuity should not exist.

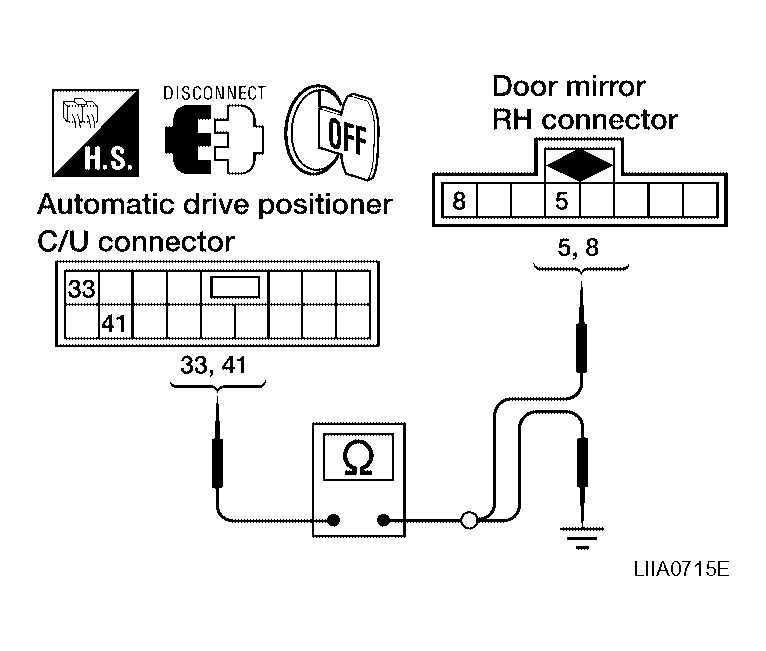

  Fig 3: Identifying Continuity Between Connector M42 Terminals 33, 41 And Connector D107 Terminals 5, 8
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK: GO TO 4.

NG: Repair or replace harness.
CHECK HARNESS CONTINUITY 2
1. Check continuity between automatic drive positioner control unit connector M41 terminals 5, 21 and door mirror RH connector D107 terminals 6, 7.
  5 - 6: Continuity should exist.

  21 - 7: Continuity should exist.
2. Check continuity between automatic drive positioner control unit connector M41 terminals 5, 21 and ground.
  5 - Ground: Continuity should not exist.

  21 - Ground: Continuity should not exist. LIIA0716E

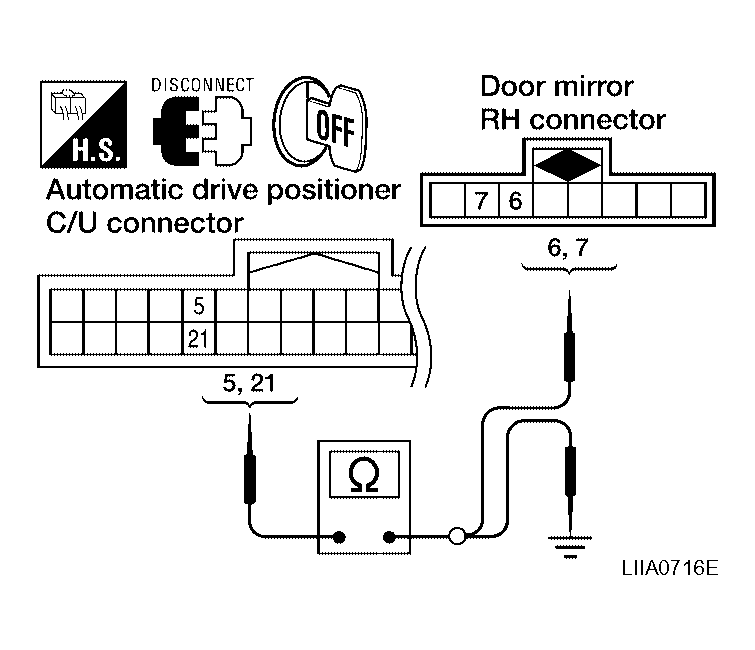

  Fig 4: Identifying Continuity Between Connector M41 Terminals 5, 21 And Connector D107 Terminals 6, 7
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK: Replace door mirror RH. Refer to "DOOR MIRROR ASSEMBLY ".

NG: Repair or replace harness.
