Reclining Switch Inspection

With CONSULT-II

With "RECLN SW-FR, RECLN SW-RR" on the DATA MONITOR, operate the reclining switch to check ON/OFF operation.

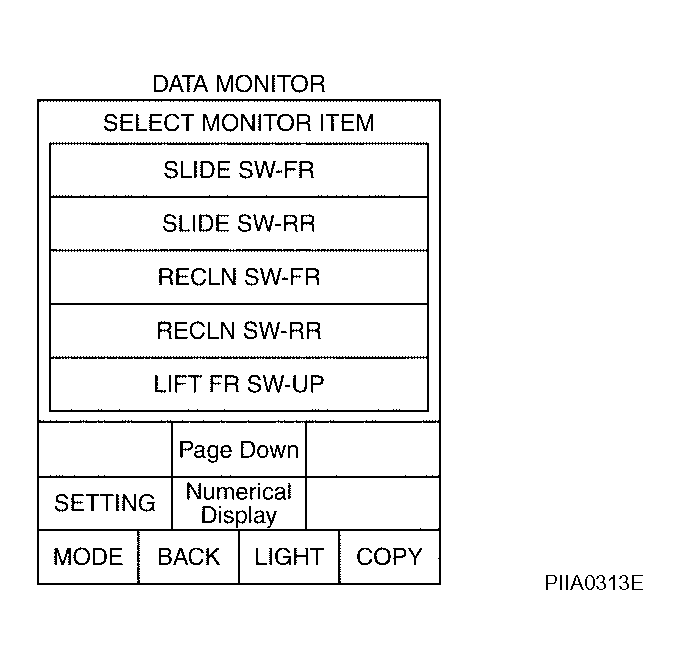

Fig 1: CONSULT-II Screen Display - RECLN SW-FR, RECLN SW-RR On DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

With CONSULT-II

1. Turn ignition switch OFF.
2. Check voltage between driver seat control unit connector and ground.
   TERMINALS VOLTAGE REFERENCE



   Connector	Terminals		Condition	Voltage (V) (Approx.)
   	(+)	(-)
   P2	12	Ground	Reclining switch ON (BACKWARD operation)	0
   			Other than above	Battery voltage
   	27		Reclining switch ON (FORWARD operation)	0
   			Other than above	Battery voltage

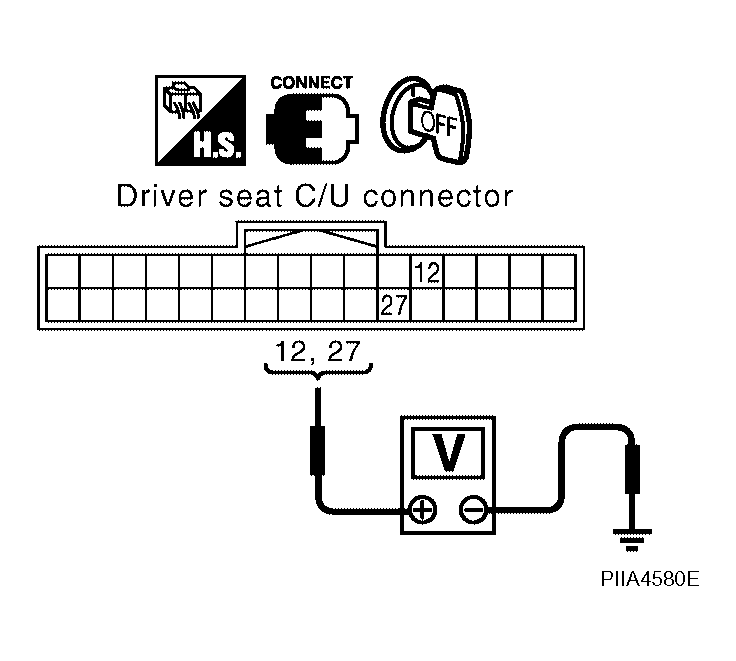

   Fig 2: Identifying Voltage Between Driver Seat Control Unit Connector And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Reclining switch circuit is OK.

NG: GO TO 2.

1. Disconnect driver seat control unit and power seat switch LH.
2. Check continuity between driver seat control unit connector P2 terminals 12, 27 and power seat switch LH connector P8 terminals 9, 10.

   12 - 9: Continuity should exist.

   27 - 10: Continuity should exist.

3. Check continuity between driver seat control unit connector P2 terminals 12, 27 and ground.

   12 - Ground: Continuity should not exist.

   27 - Ground: Continuity should not exist.

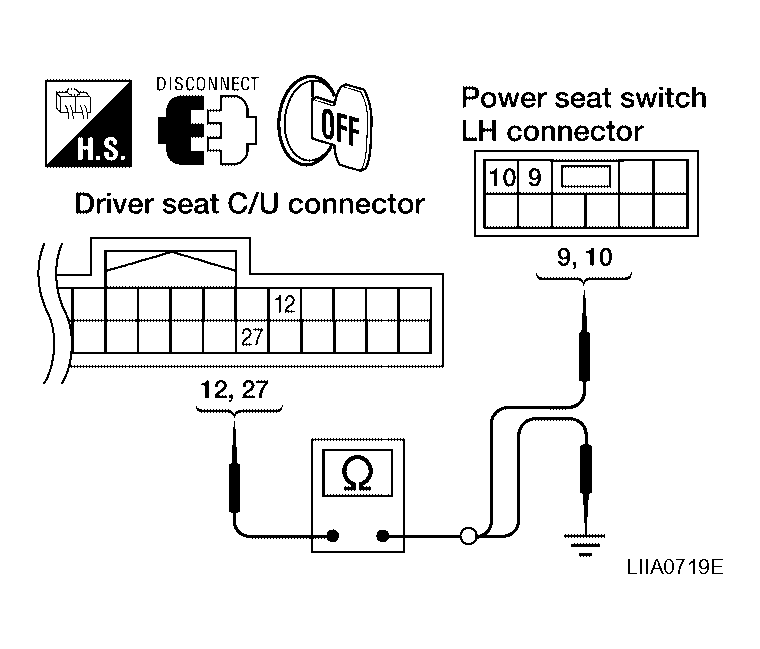

   Fig 3: Identifying Continuity Between Driver Seat Control Unit Connector P2 Terminals 12, 27 And Power Seat Switch LH Connector P8 Terminals 9, 10

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 3.

NG: Repair or replace harness.

Check continuity between power seat switch LH terminals as follows.

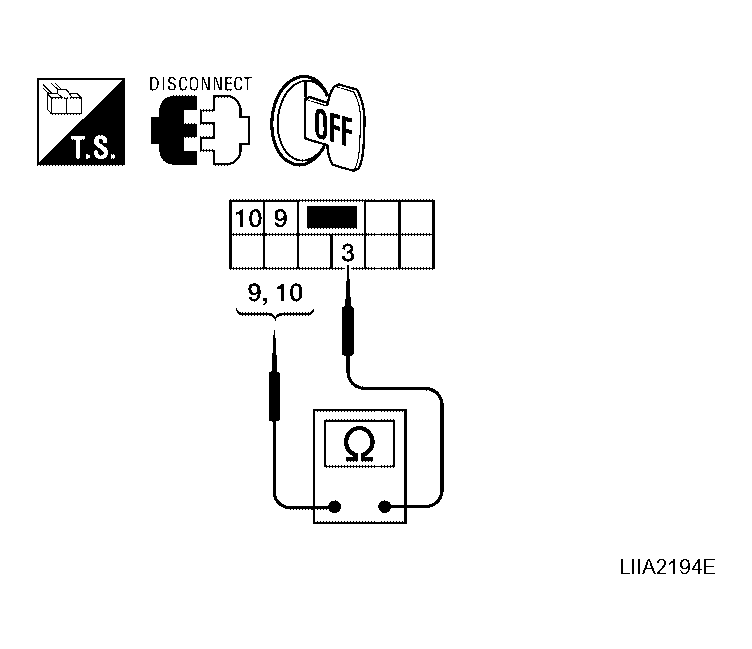

Fig 4: Identifying Continuity Between Power Seat Switch LH Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Check the condition of the harness and connector.

NG: Replace power seat switch LH. Refer to "FRONT SEAT ".
