Automatic Operation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

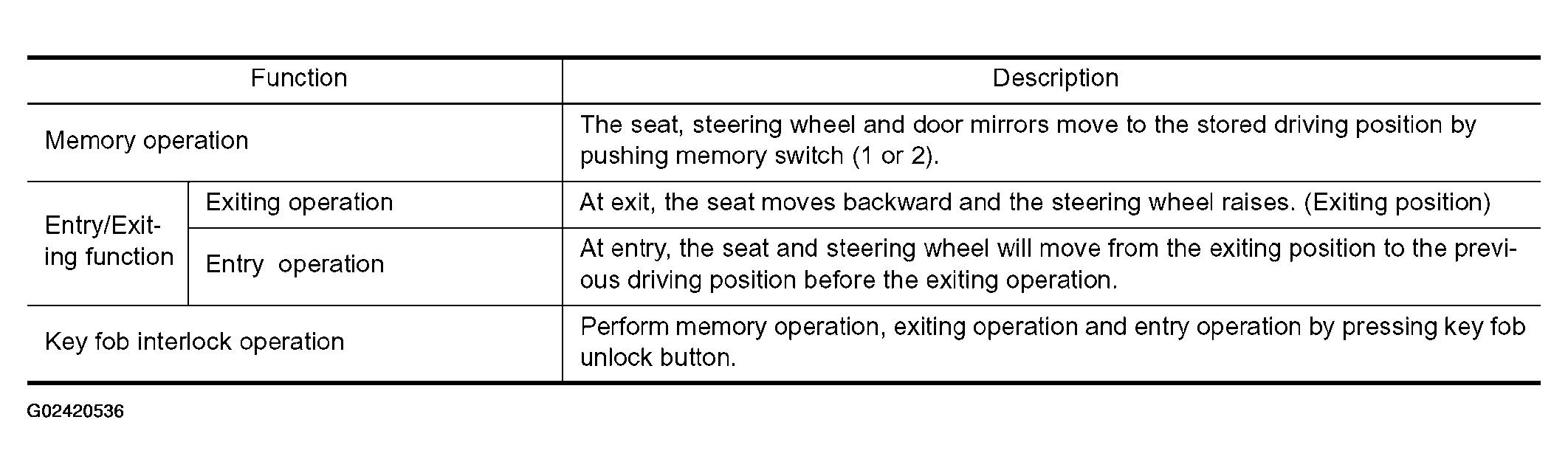

Fig 1: Automatic Operation Description Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Disconnecting the battery erases the stored memory.
After connecting the battery, insert the key into the ignition cylinder and turn the driver door switch ON (open) --> OFF (close) --> ON (open), the Entry/Exiting operation becomes possible.
After exiting operation is carried out, entry operation can be operated.

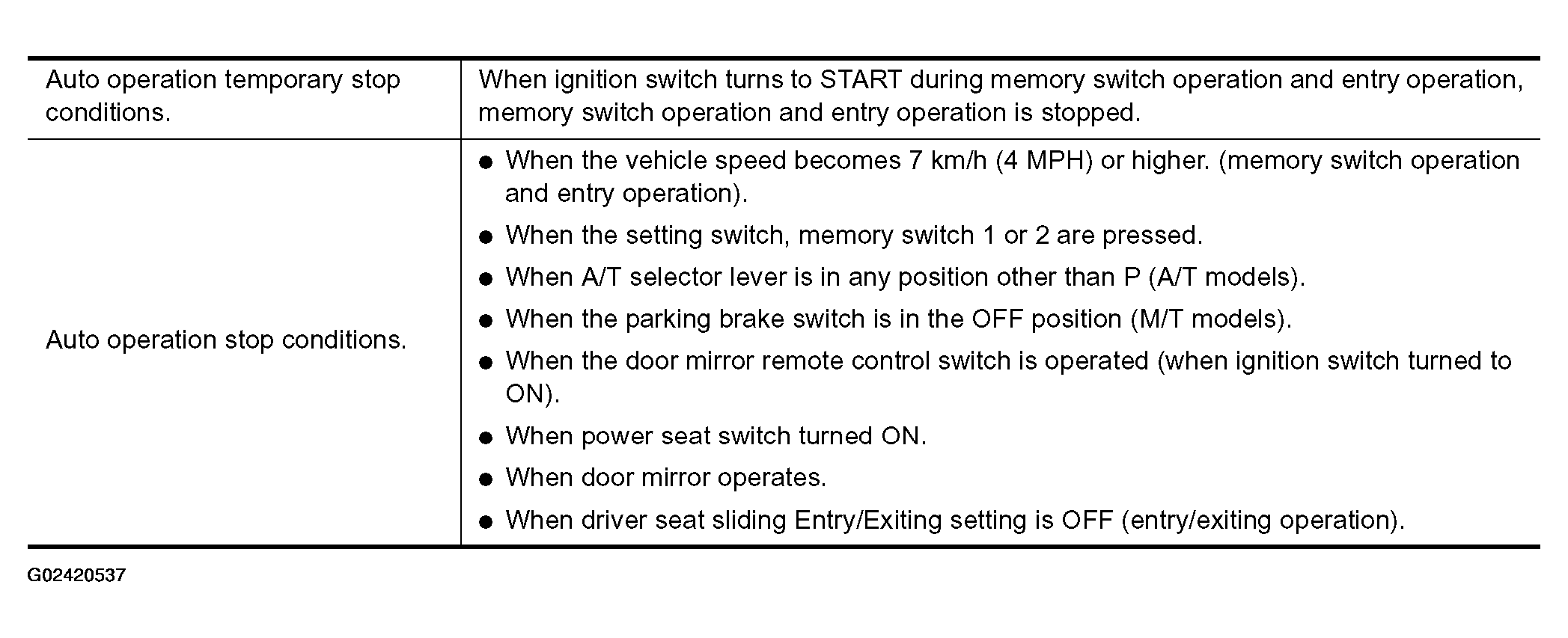

Fig 2: Auto Operation Stops Condition Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: During automatic operation, if the ignition switch is turned ON --> START, the automatic operation is suspended. When the ignition switch returns to ON, it resumes.
