Back up Control (Engine Brake)

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

When the select operation is performed during driving and the transmission is shifted down, the line pressure is set according to the vehicle speed.

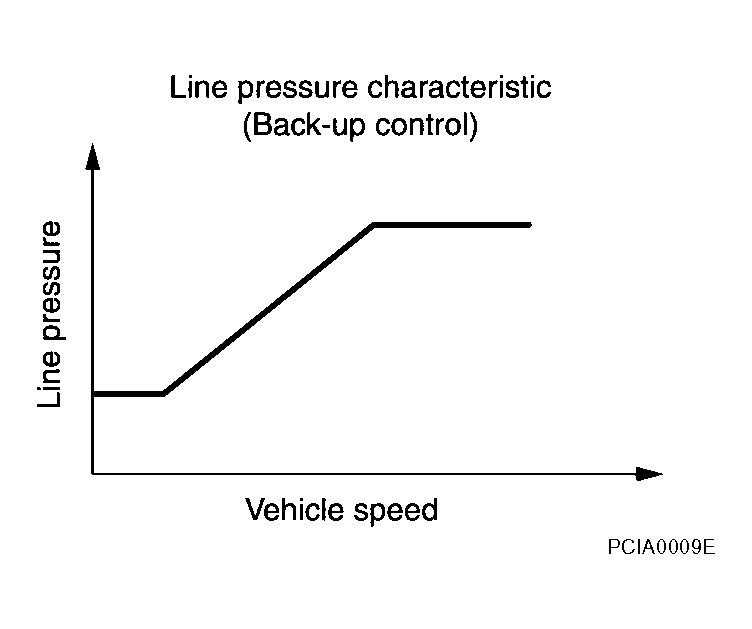

Fig 1: Line Pressure Characteristic Graph - Back-Up Control (Engine Brake)
G04203682Courtesy of NISSAN MOTOR CO., U.S.A.
