Special Service Tools

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

SPECIAL SERVICE TOOLS

Tool number (Kent-Moore No.) Tool name		Description

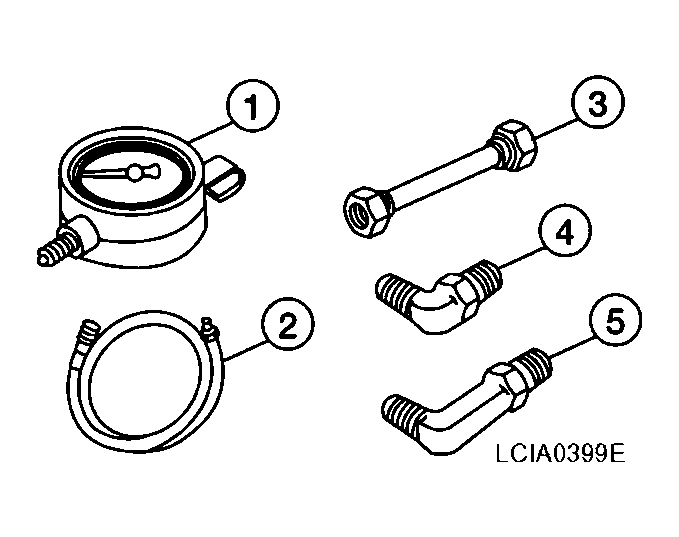

ST2505S001 (J-34301-C) Oil pressure gauge set 1 ST25051001 ( - ) Oil pressure gauge 2 ST25052000 ( - ) Hose 3 ST25054000 ( - ) Joint pipe 4 ST25054000 ( - ) Adapter 5 ST25055000 ( - ) Adapter		Measuring line pressure

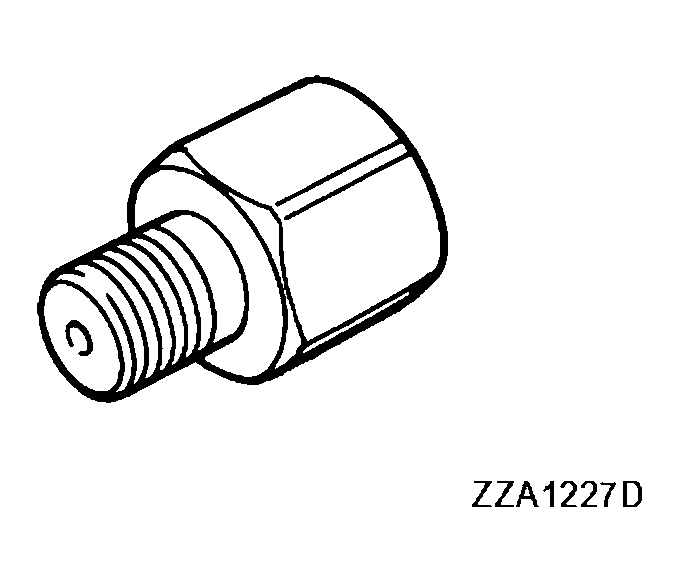

KV31103600 (J-45674) Joint pipe adapter (With ST25054000)		Measuring line pressure

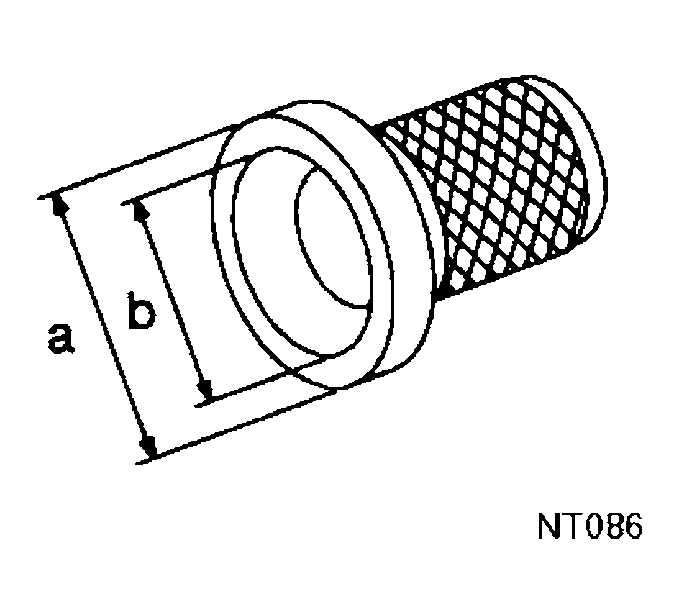

ST33400001 (J-26082) Drift		Installing rear oil seal (2WD models) Installing oil pump housing oil seal a: 60 mm (2.36 in) dia .b: 47 mm (1.85 in) dia .

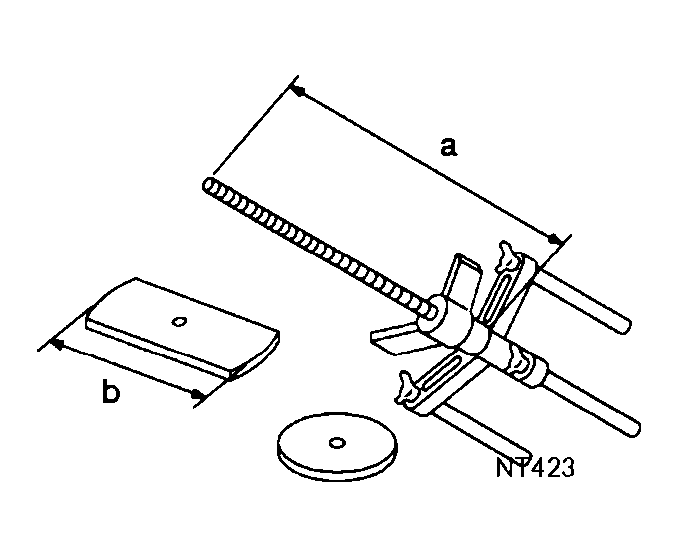

KV31102400 (J-34285 and J-34285-87) Clutch spring compressor		Installing reverse brake return spring retainer a: 320 mm (12.60 in) b: 174 mm (6.85 in)

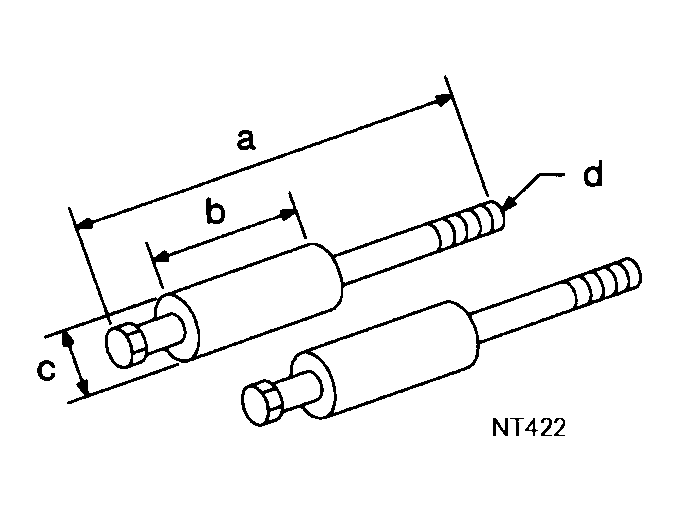

ST25850000 (J-25721-A) Sliding hammer		Remove oil pump assembly a: 179 mm (7.05 in) b: 70 mm (2.76 in) c: 40 mm (1.57 in) d: M12X1.75P

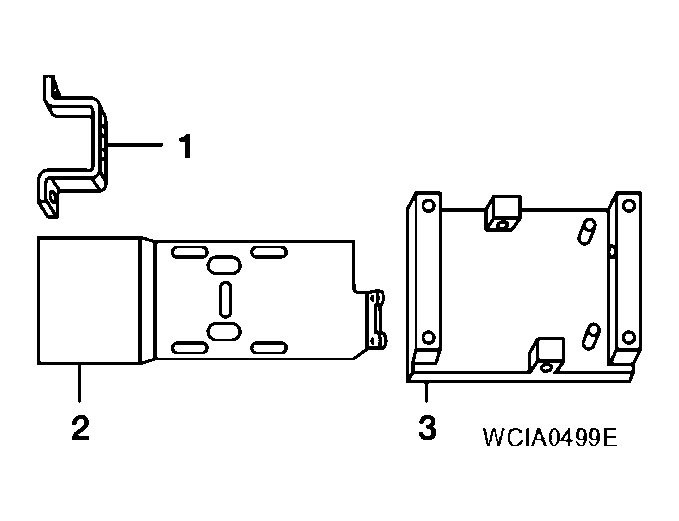

- (J-47002) Transmission jack adapter kit 1. - (J-47002-1) Center bracket 2. - (J-47002-3) Adapter plate 3. - (J-47002-4) Adapter block		Assist in removal of transmission and transfer case as one assembly using only one transmission jack.
