Fill Procedures

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Fill procedures after installation of service part.
- Remove foam material remaining on vehicle side.
- Clean area in which foam was removed.
- Install service part.
- Insert nozzle into hole near fill area and fill foam material or fill in enough to close gap with the service part.

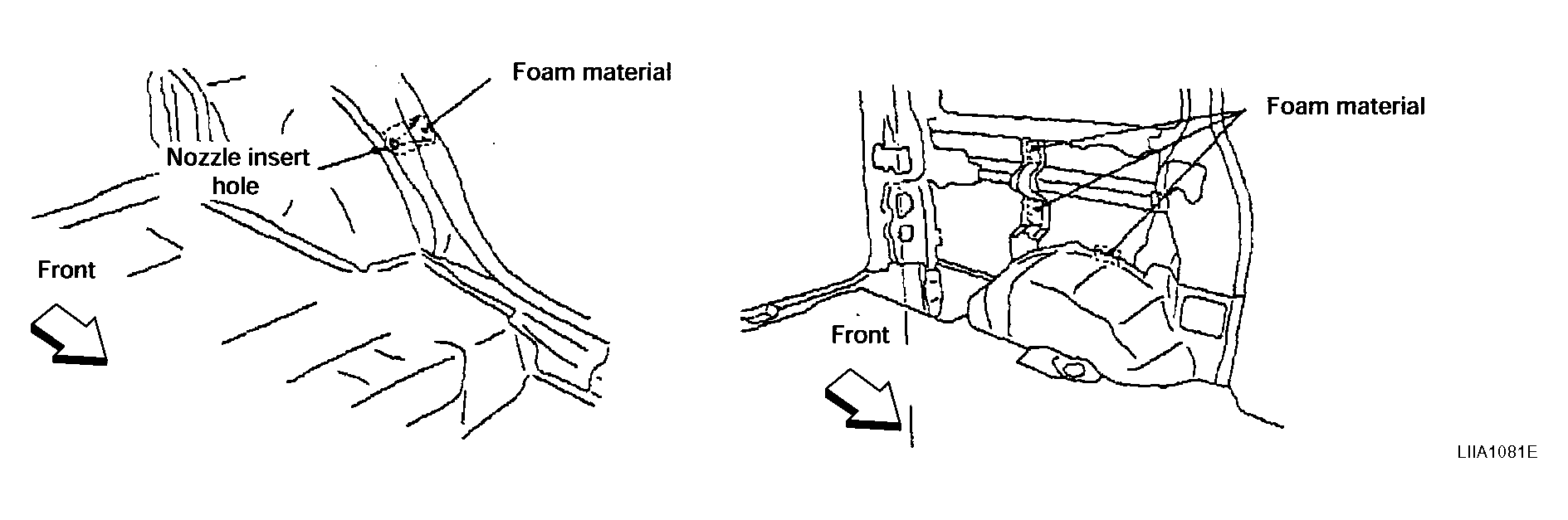

Fig 1: Removing Foam Material Remaining On Vehicle Side
Courtesy of NISSAN MOTOR CO., U.S.A.
Fill procedures before installation of service part.

Remove foam material remaining on vehicle side.
Clean area in which foam was removed.
Fill foam material on wheelhouse outer side.

NOTE: Fill in enough to close gap with service part while avoiding flange area.

Install service part.

NOTE: Refer to label for information on working times.

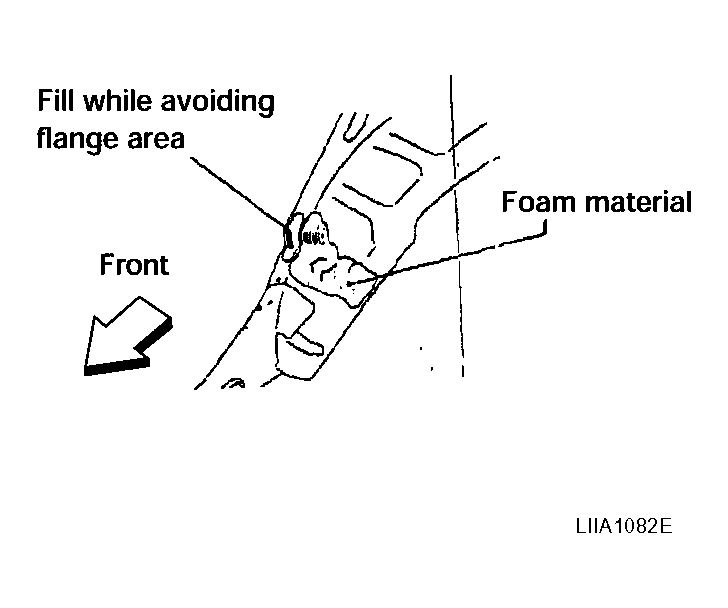

Fig 2: Removing Foam Material Remaining On Vehicle Side

Courtesy of NISSAN MOTOR CO., U.S.A.
