Without CONSULT-II

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Check voltage between BCM connector M18 terminal 11 and ground.

TERMINALS CONDITION CONTINUITY CHART

Connector	Terminal-		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
M18	11	Ground	ACC	Battery voltage
M18	11	Ground	OFF	0

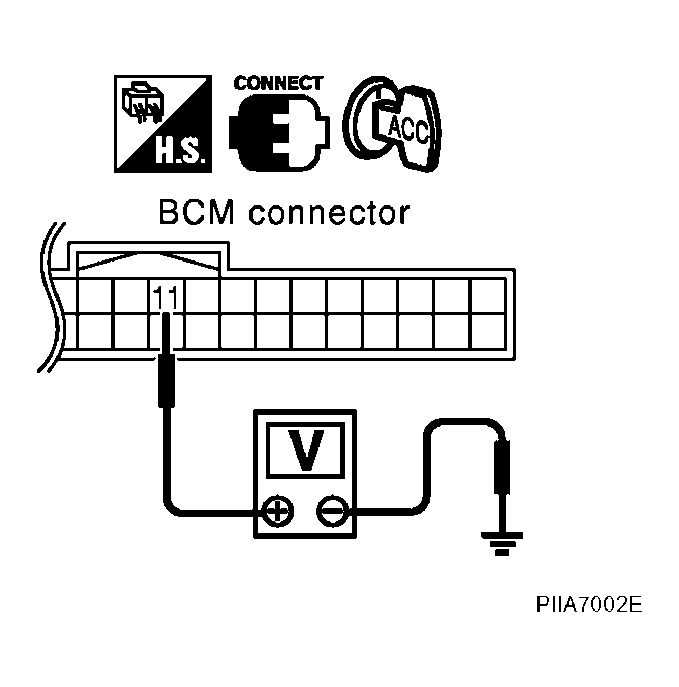

Fig 1: Checking Voltage Between BCM Connector M18 Terminal 11 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: ACC power circuit is OK.

NG: Check the following.

10A fuse [No. 4, located in fuse block (J/B)]
Harness for open or short.
