KEYFOB Id Set Up With Consult-II

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. A specific ID code can be erased with CONSULT-II. However, when the ID code of a lost keyfob is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new keyfobs must be re-registered.,
When registering an additional keyfob, the existing ID codes in memory may or may not be erased. If five ID codes are stored in memory when an additional code is registered, only the oldest code is erased. If less than five codes are stored in memory when an additional code is registered, the new ID code is added and no ID codes are erased.
Entry of a maximum of five ID codes is allowed. When more than five codes are entered, the oldest ID code will be erased.
Even if the same ID code that is already in memory is input, the same ID code can be entered. The code is counted as an additional code.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries on CAN communication.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".
Touch "BCM". If "BCM" is not indicated, refer to "CONNECTOR (DLC) CIRCUIT ".

Fig 2: Consult-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Consult-II SELECT SYSTEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MULTI REMOTE ENT".

Fig 4: CONSULT II Display - Select Test Item
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "WORK SUPPORT".

Fig 5: Consult-II SELECT DIAG MODE Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
The items shown on the figure can be set up.

"REMO CONT ID REGIST"

Use this mode to register a keyfob ID code.

NOTE: Register the ID code when keyfob or BCM is replaced, or when additional keyfob is required.

"REMO CONT ID ERASUR" Use this mode to erase a keyfob ID code.
"REMO CONT ID CONFIR" Use this mode to confirm if a keyfob ID code is registered or not.

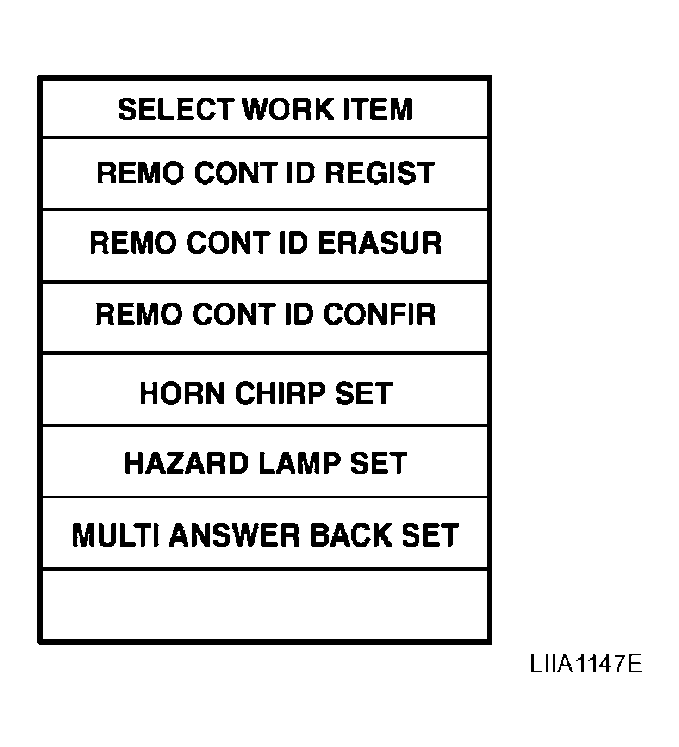

Fig 6: Consult-II Display - Select Work Item

Courtesy of NISSAN MOTOR CO., U.S.A.
