With CONSULT-II
WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

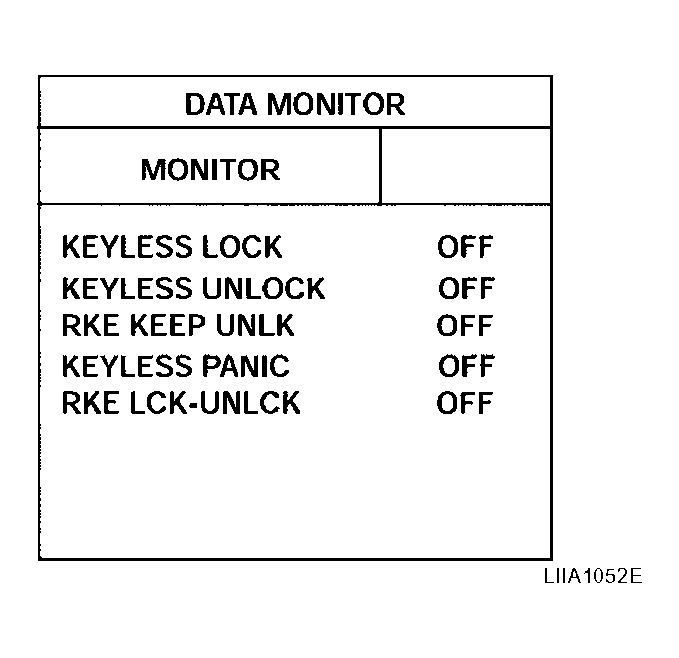

Check keyfob function in "DATA MONITOR" mode with CONSULT-II.
When pushing each button of keyfob, the corresponding monitor item should be turned as follows.
MONITOR ITEM CONDITION CHART
| Condition | Monitor item | |
|---|---|---|
| Pushing LOCK | KEYLESS LOCK | : ON |
| Pushing UNLOCK | KEYLESS UNLOCK | : ON |
| Keep pushing UNLOCK | RKEKEEPUNLK turns to ON 3 seconds after UNLOCK button is pushed. | |
| Pushing PANIC | KEYLESS PANIC | : ON |
| Pushing LOCK and UNLOCK at the same time | RKE LCK-UNLCK | : ON |
