General Specifications
WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
GENERAL DATA AND SPECIFICATIONS
| Engine | VQ40DE | ||
| Transmission model | FS6R31A | ||
| Axle type | 2WD | 4WD | |
| Number of speed | 6 | ||
| Synchromesh type | Warner | ||

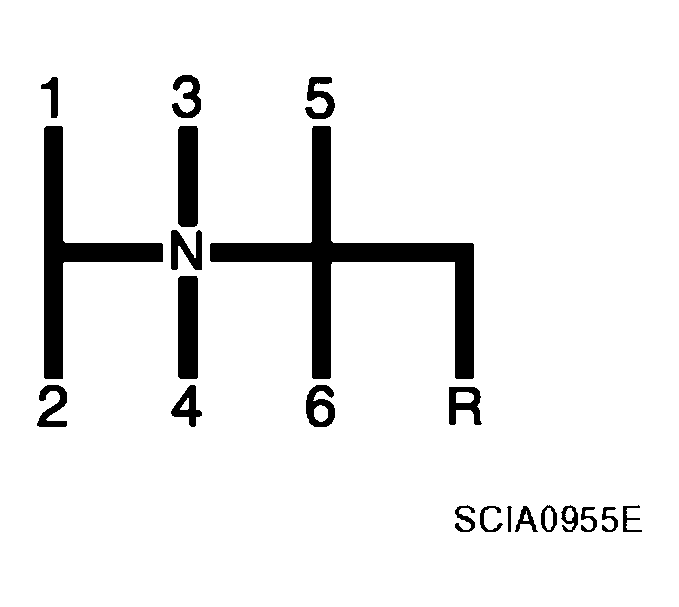

| Shift pattern | |||
| Gear ratio | 1st | 4.368 | |
| 2nd | 2.518 | ||
| 3rd | 1.743 | ||
| 4th | 1.283 | ||
| 5th | 1.000 | ||
| 6th | 0.769 | ||
| Reverse | 3.966 | ||
| Main gear (Number of teeth) |
Drive | 24 | |
| 1st | 37 | ||
| 2nd | 32 | ||
| 3rd | 32 | ||
| 4th | 29 | ||
| 6th | 25 | ||
| Reverse | 42 | ||
| Counter gear (Number of teeth) |
Drive | 34 | |
| 1st | 12 | ||
| 2nd | 18 | ||
| 3rd | 26 | ||
| 4th | 32 | ||
| 6th | 46 | ||
| Reverse | 15 | ||
| Reverse idler gear (Number Of teeth) | 26 | ||
| Oil capacity (Approx.) | l (US qt, Imp qt) | 3.98(4-1/4, 3-1/2) | 4.18(4-3/8, 3-5/8) |
| Remarks | Reverse synchronizer | Installed | |
| Double cone synchronizer | 1st, 3rd and 4th | ||
| Triple cone synchronizer | 2nd | ||
