Removal and Installation: Components: Installation

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Installation is the reverse order of removal.

Install shift knob according to the following.

Apply cement to threads of control lever assembly.
Tighten shift knob until increased tension is felt. Then align shift knob to the position as shown within one turn.

CAUTION: Do not adjust shift knob by loosening it.

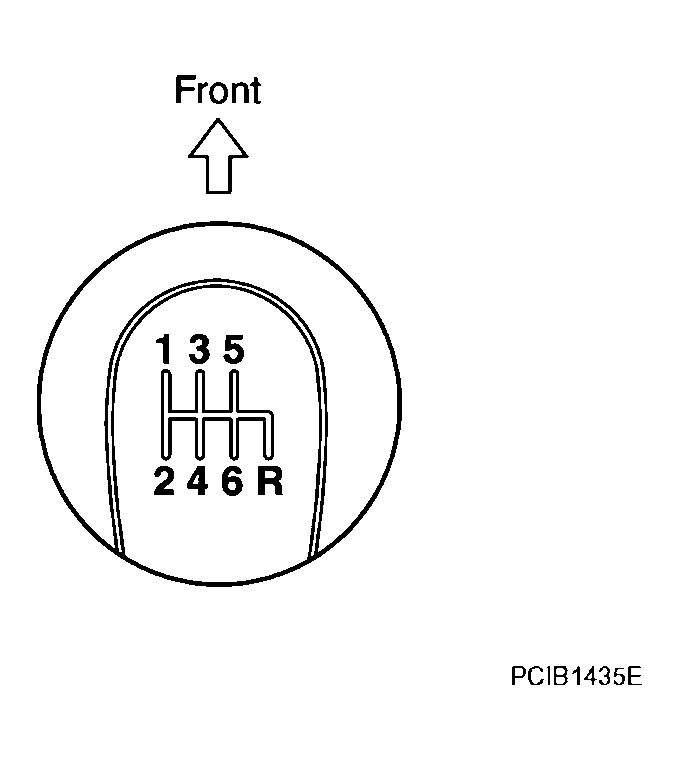

Fig 1: Aligning Shift Knob To Position

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Apply multi-purpose grease to socket and bushing.
Insert bushing of control lever assembly as far as it will go into the hole of striking arm.
Tighten guide plate (1) bolts to the specified torque in order as shown.

Fig 2: Tightening Guide Plate Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Do not reuse clip.
Position clip as shown.
Be careful with the orientation of control lever boot and insulator.

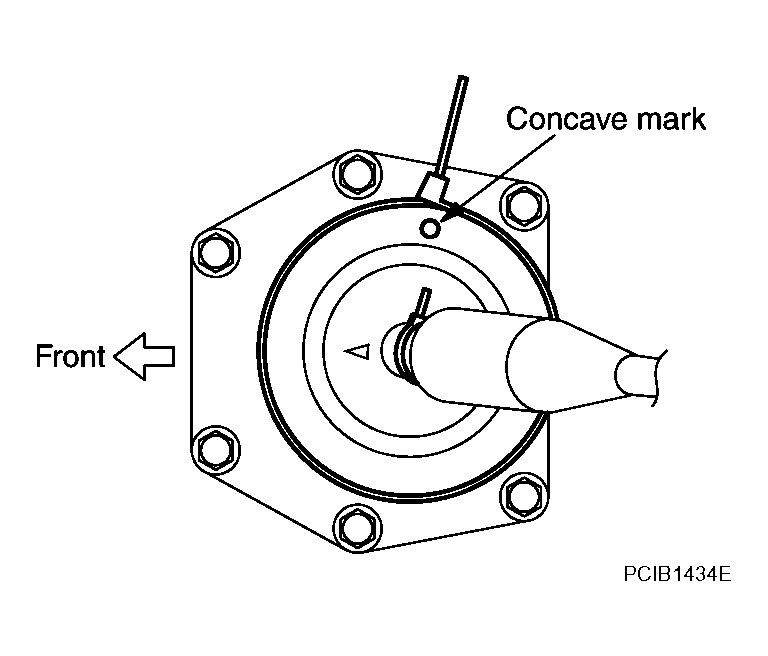

Fig 3: Identifying Concave Mark

Courtesy of NISSAN MOTOR CO., U.S.A.
