Shift Control Components

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear extension (or OD gear case) and transmission case. Refer to "CASE COMPONENTS ".

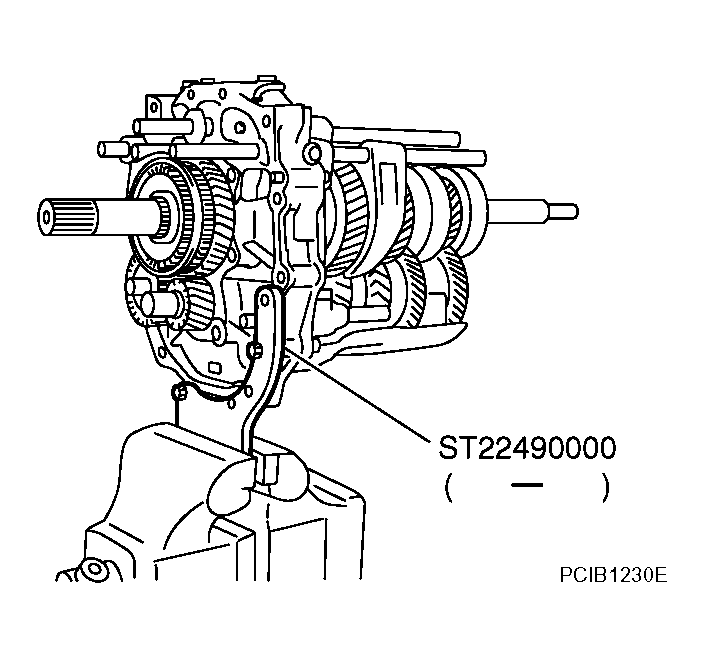

  2. Install Tool to adapter plate, and then position in a vise.

    Tool number: ST22490000 ( - )

    CAUTION: Do not directly secure mating surface of adapter plate in a vise.
    Fig 1: Installing Tool To Adapter Plate
    G04203488Courtesy of NISSAN MOTOR CO., U.S.A.

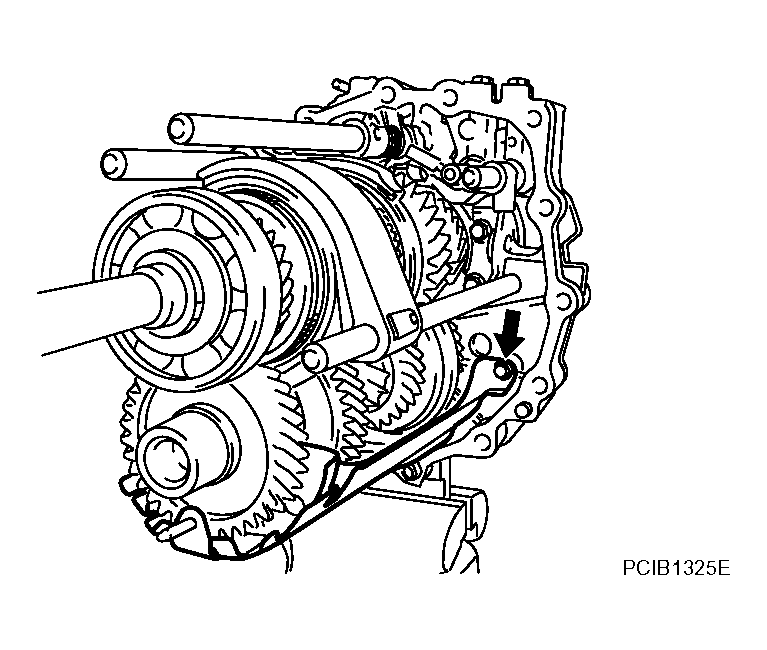

  3. Remove baffle plate bolts, and then remove baffle plate from adapter plate.
    Fig 2: Removing Baffle Plate Bolts
    G04203489Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove check ball plugs, check ball springs and check balls from adapter plate.

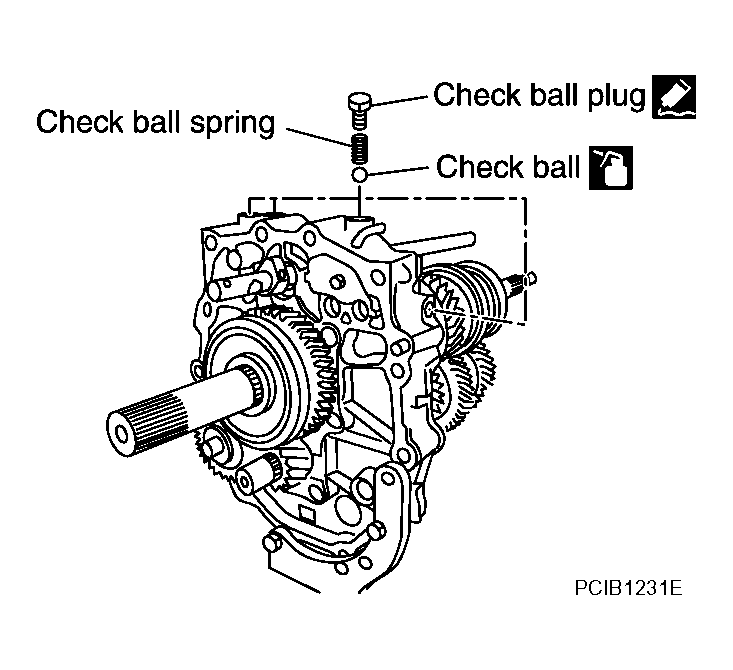

    Fig 3: Checking Ball Springs
    G04203490Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove 3rd-4th control lever bolts, and then remove 3rd-4th control lever and shifter cap from adapter plate.

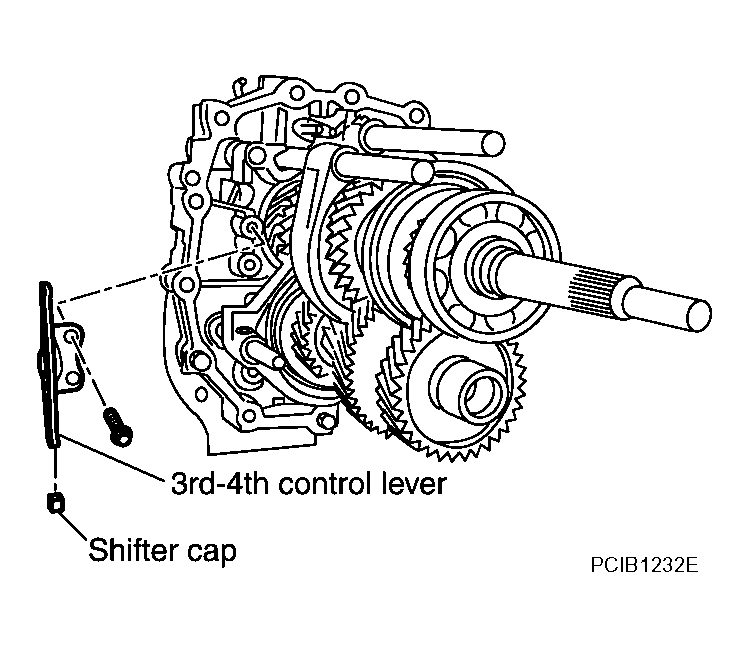

    Fig 4: Removing 3rd-4th Control Lever Bolts
    G04203491Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove retaining pin using suitable tool, and then remove 3rd -4th fork rod bracket and 3rd-4th fork rod from adapter plate.

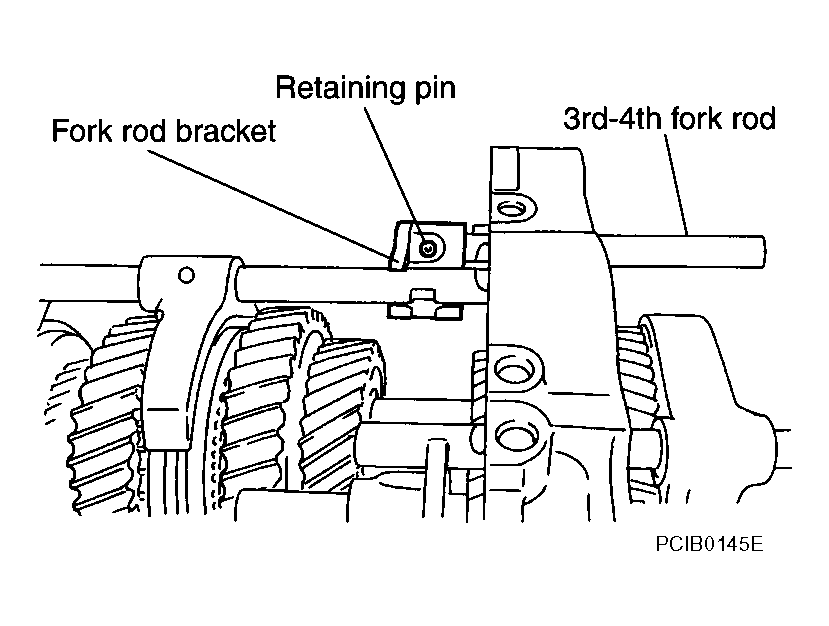

    Fig 5: Removing Retaining Pin Using Tool
    G04203492Courtesy of NISSAN MOTOR CO., U.S.A.

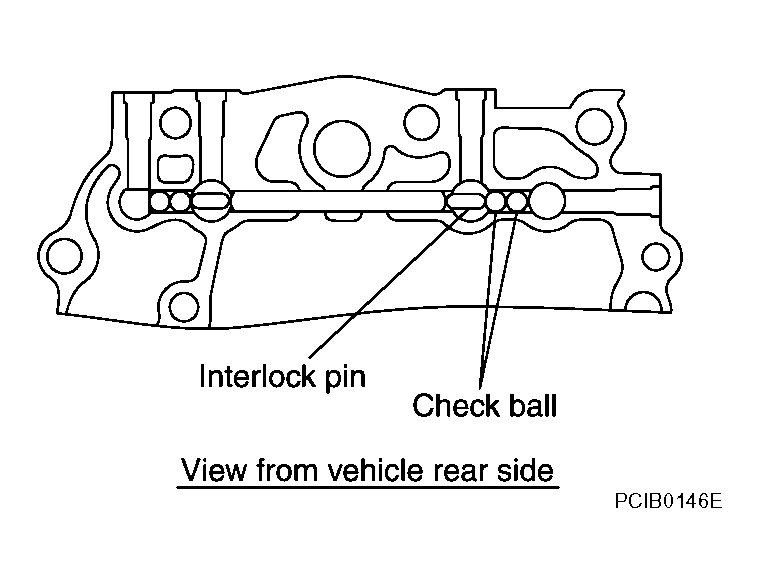

  7. Remove check balls and interlock pin from adapter plate.
    Fig 6: Checking Balls And Interlock Pin From Adapter Plate
    G04203493Courtesy of NISSAN MOTOR CO., U.S.A.

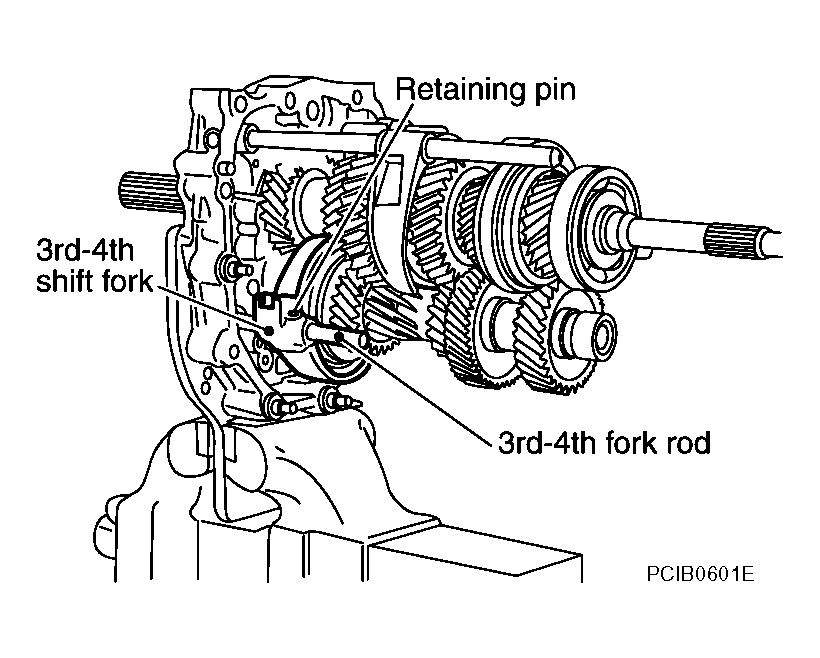

  8. Remove retaining pin using a suitable tool, and then remove 3rd-4th shift fork and 3rd-4th fork rod (reversal side) from adapter plate.
    Fig 7: Removing Retaining Pin Using Tool
    G04203494Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Remove retaining pin using a suitable tool, and then remove 1st-2nd shift fork and 1st-2nd fork rod from adapter plate.

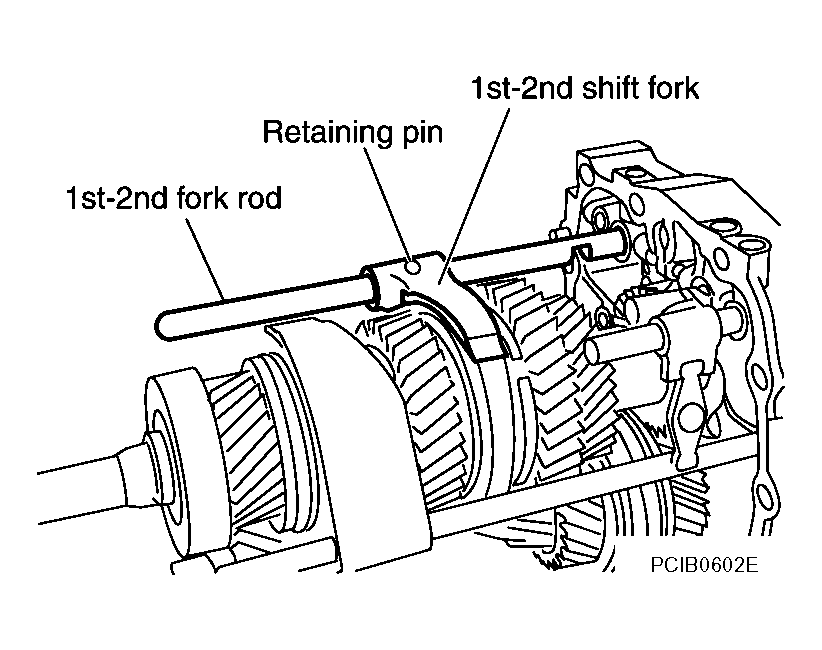

    Fig 8: Removing Retaining Pin Using Tool
    G04203495Courtesy of NISSAN MOTOR CO., U.S.A.

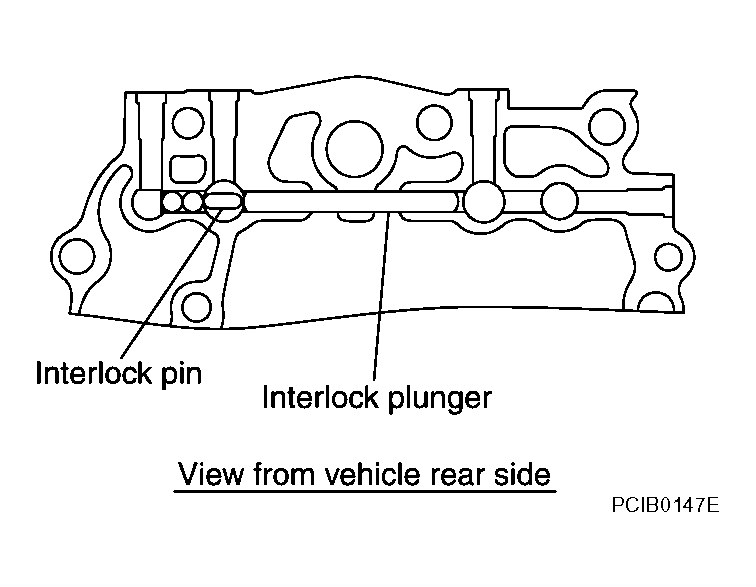

  10. Remove interlock plunger and interlock pin from adapter plate.
    Fig 9: Removing Interlock Plunger And Interlock Pin From Adapter Plate
    G04203496Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove retaining pin using suitable tool, and then remove reverse shift fork and reverse fork rod from adapter plate.

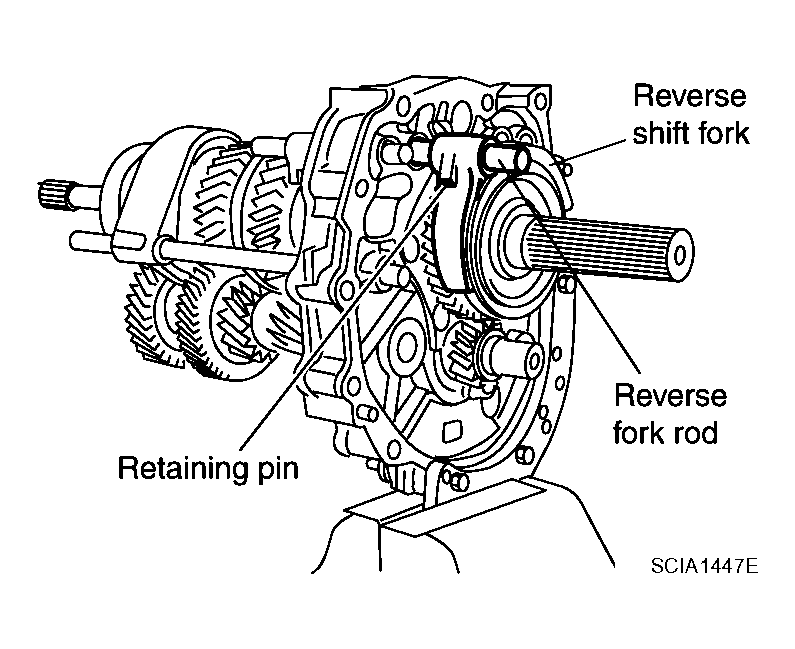

    Fig 10: Removing Retaining Pin Using Tool
    G04203497Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Remove check balls from adapter plate.

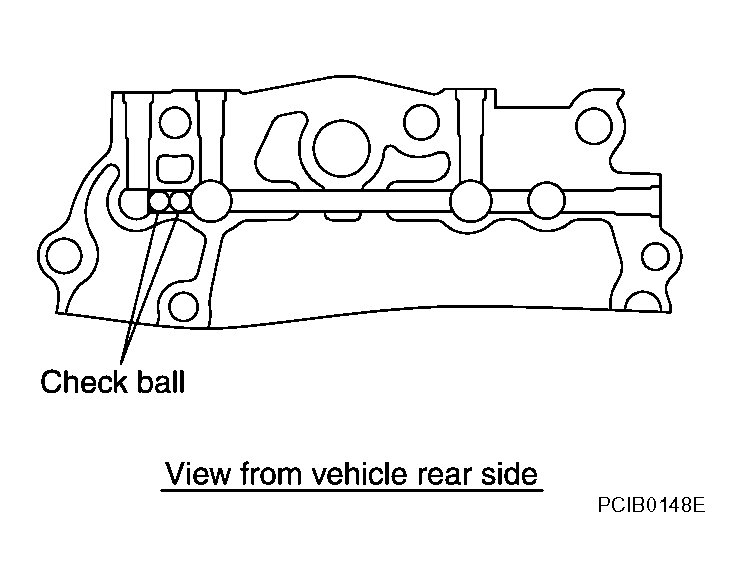

    Fig 11: Removing Check Balls From Adapter Plate
    G04203498Courtesy of NISSAN MOTOR CO., U.S.A.

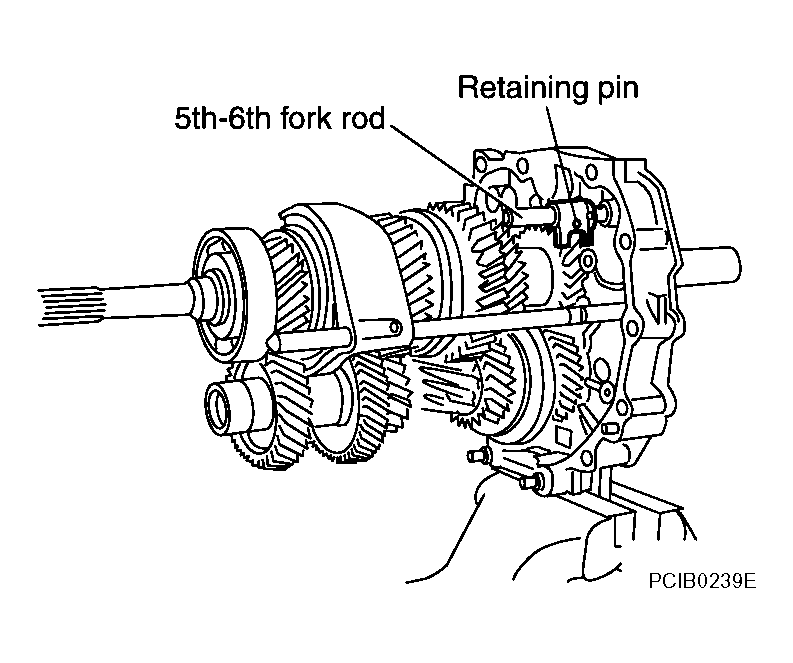

  13. Remove retaining pin using suitable tool, and then remove 5th-6th fork rod bracket and 5th-6th fork rod from adapter plate.
    Fig 12: Removing 5th-6th Fork Rod Bracket From Adapter Plate
    G04203499Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Remove 5th-6th control lever bolts, and then remove 5th-6th control lever from adapter plate.

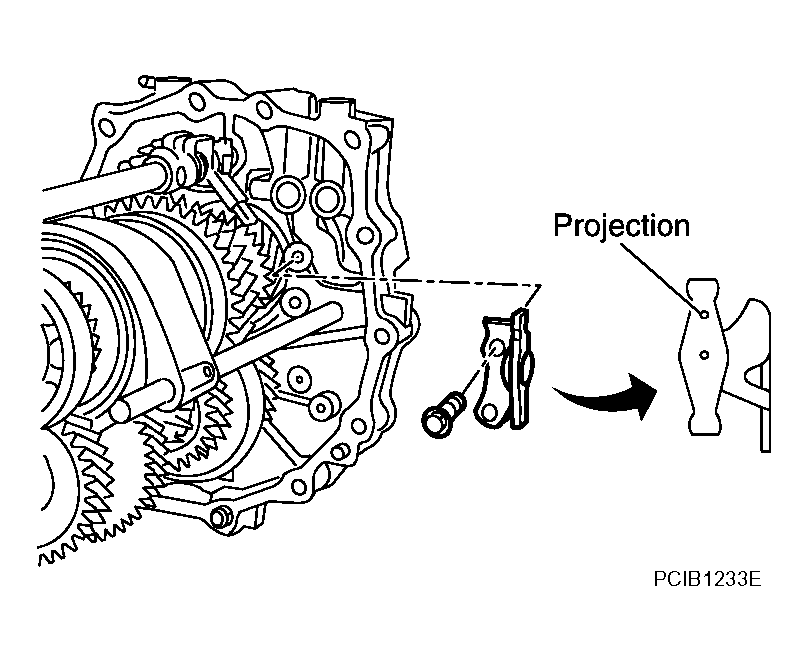

    Fig 13: Removing 5th-6th Control Lever Bolts
    G04203500Courtesy of NISSAN MOTOR CO., U.S.A.

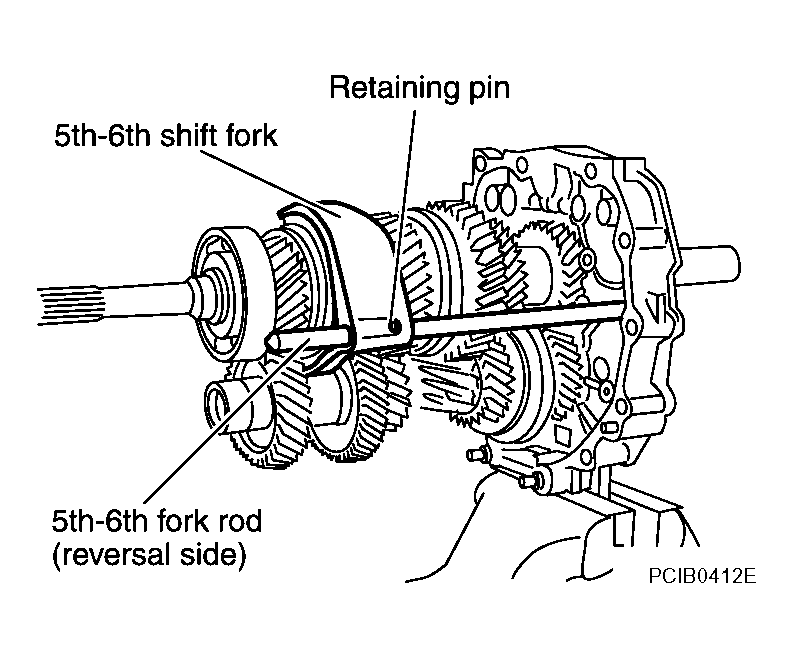

  15. Remove retaining pin using suitable tool, and then remove 5th-6th shift fork and 5th-6th fork rod (reversal side) from adapter plate.
    Fig 14: Removing Retaining Pin Using Tool
    G04203501Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Remove retaining pin using suitable tool, and then remove stopper ring from striking rod assembly.

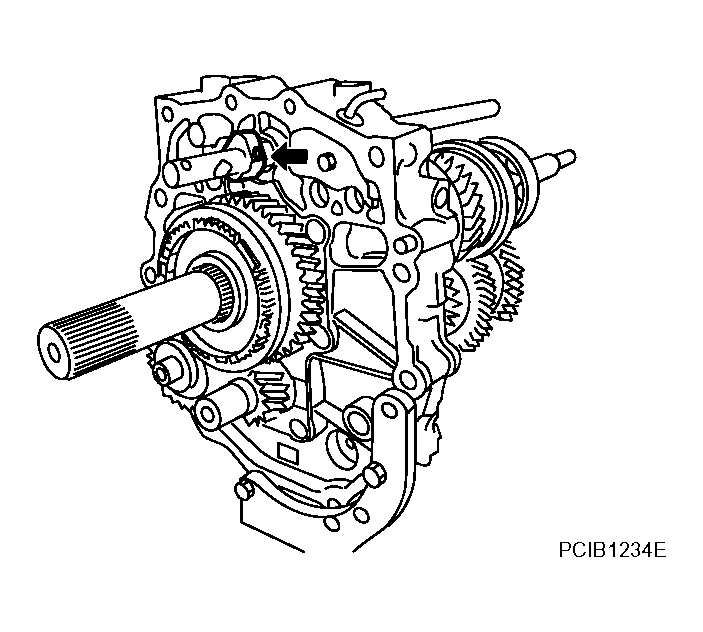

    Fig 15: Removing Retaining Pin Using Tool
    G04203502Courtesy of NISSAN MOTOR CO., U.S.A.

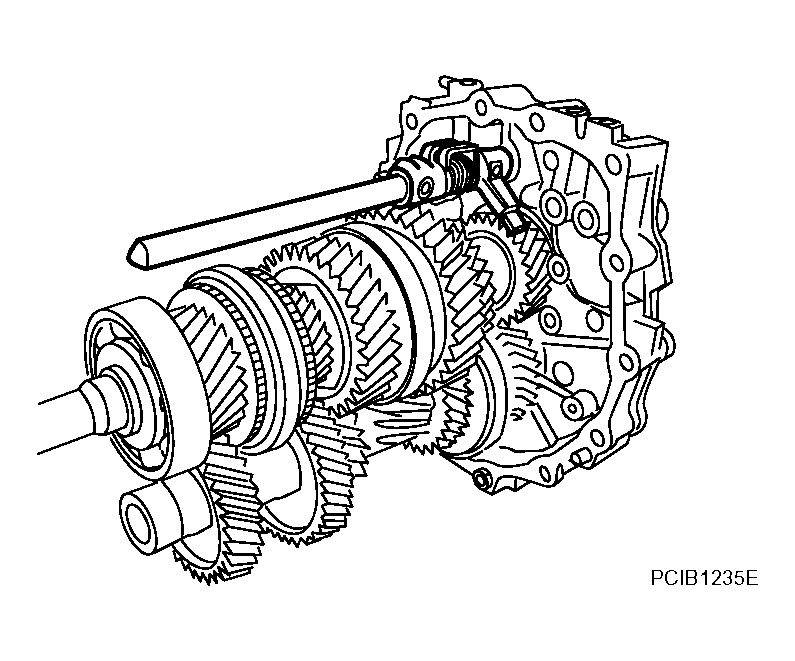

  17. Remove striking rod assembly from adapter plate.
    Fig 16: Removing Striking Rod Assembly From Adapter Plate
    G04203503Courtesy of NISSAN MOTOR CO., U.S.A.
