Camshaft Position Sensor: Components

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

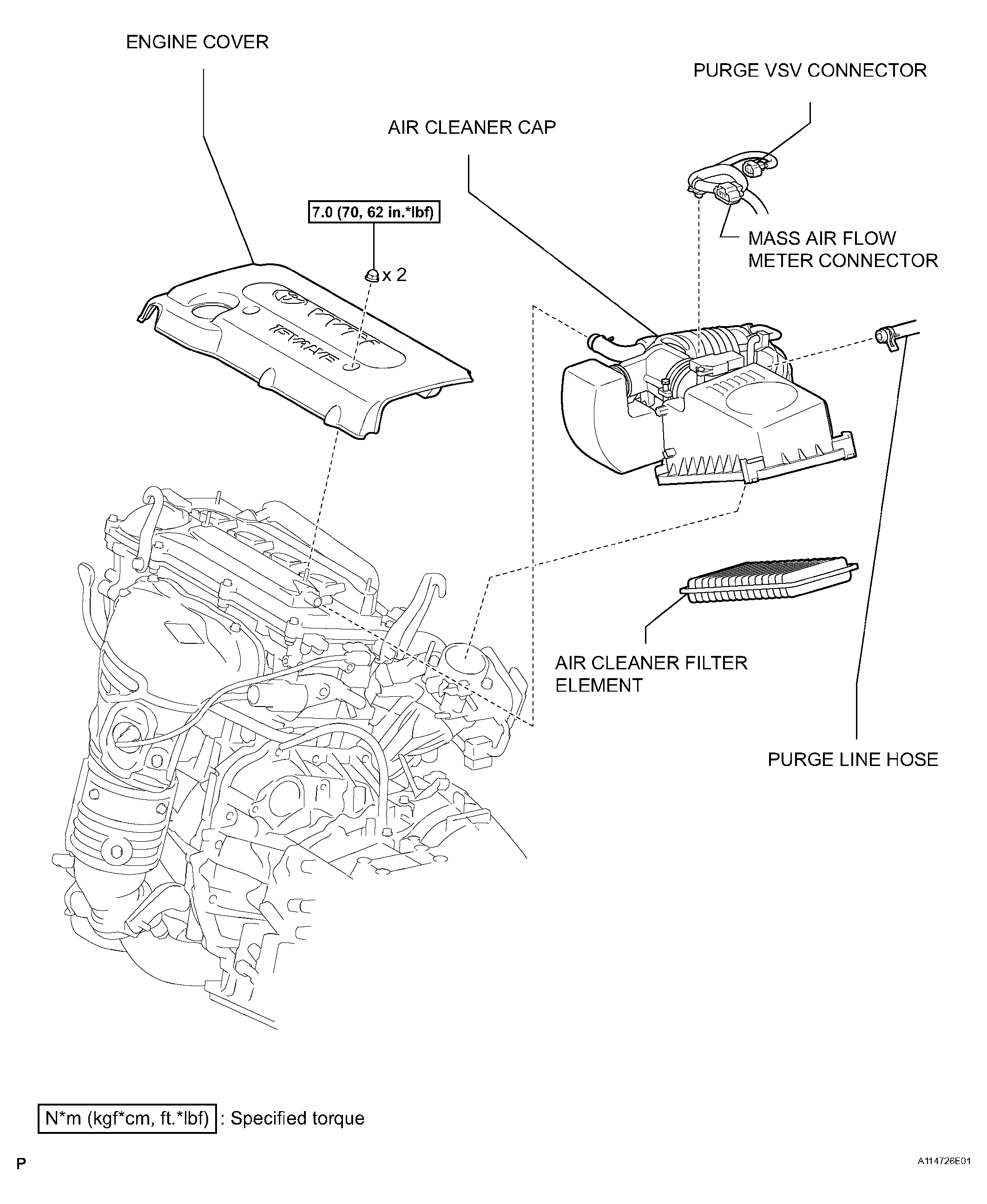

Fig 1: Identifying Camshaft Position Sensor Components (1 Of 2)
G04221331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

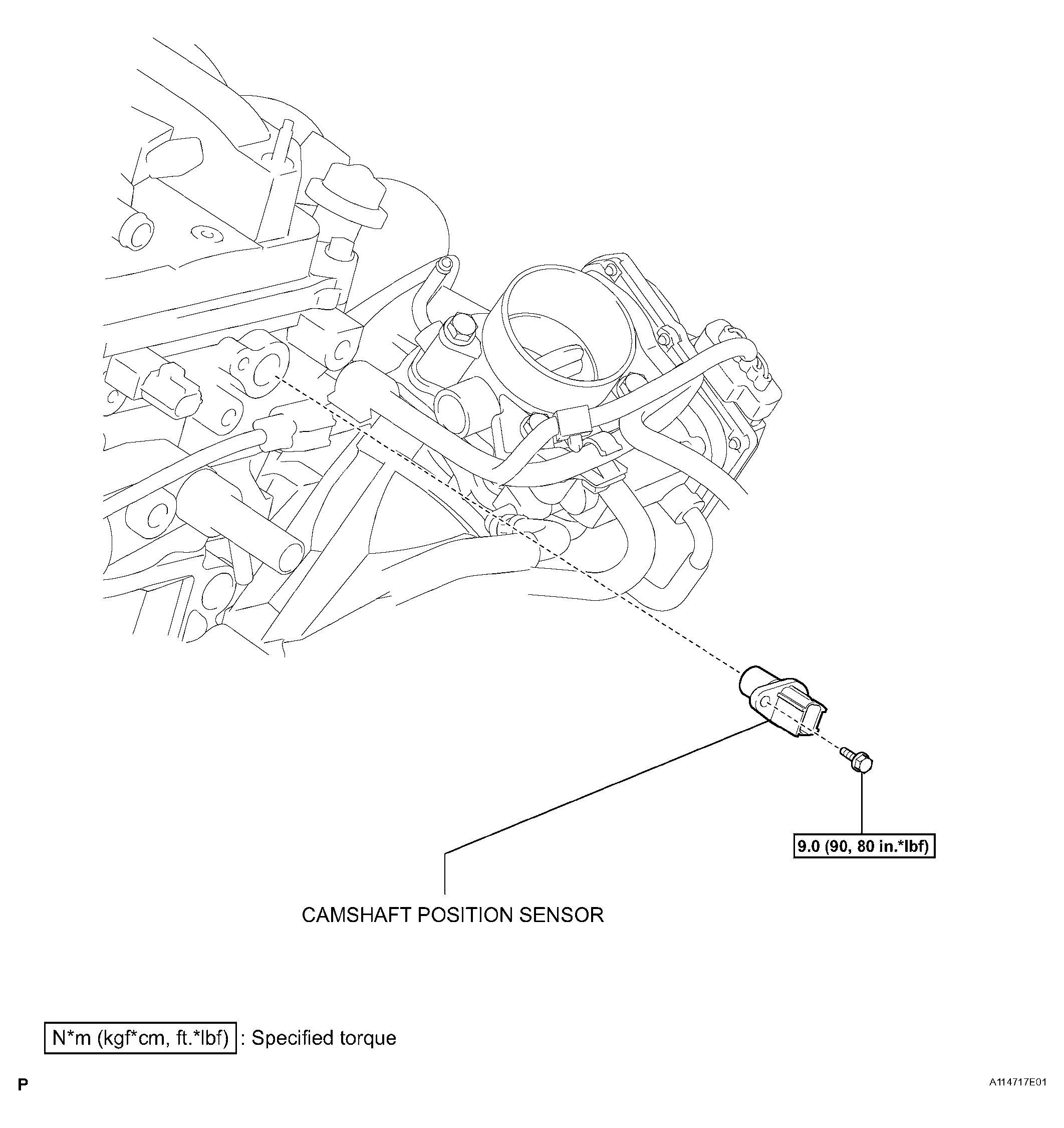

Fig 2: Identifying Camshaft Position Sensor Components (2 Of 2)
G04221332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
