Engine Coolant Temperature Sensor: Installation
WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

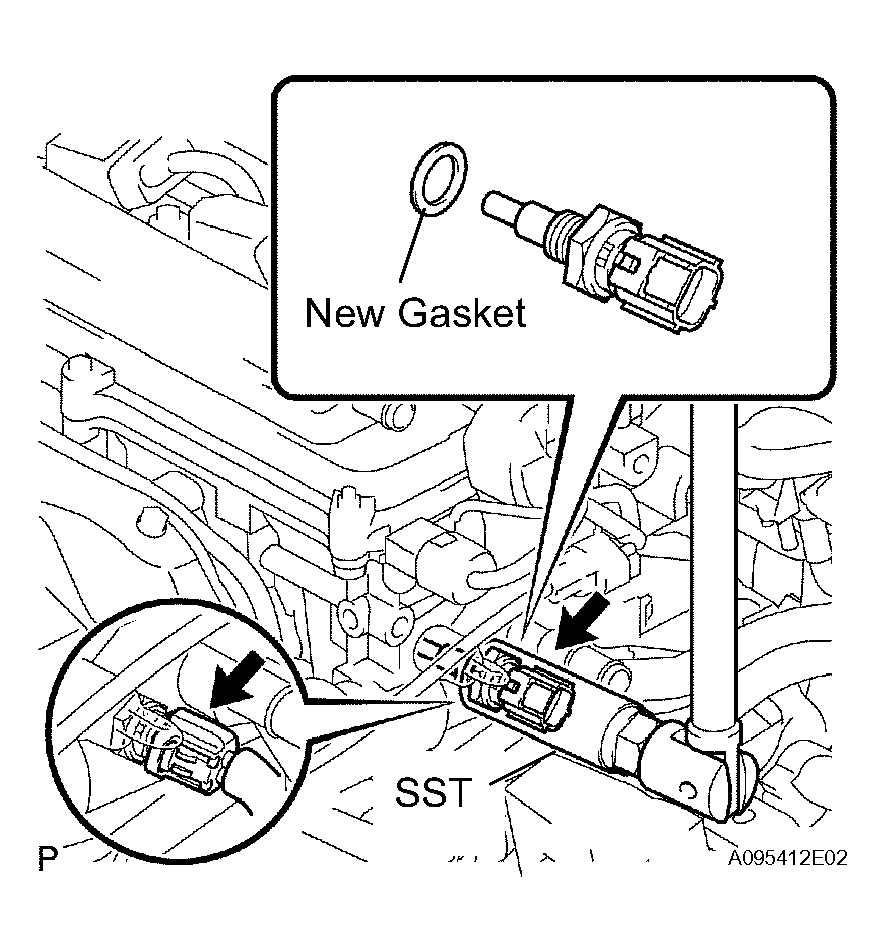

- INSTALL ENGINE COOLANT TEMPERATURE SENSOR
- Install a new gasket onto the sensor.
- Using SST, install the sensor.
SST 09817-33190
Torque: 19.6 N*m (200 kgf*cm, 14 ft.*lbf)
- Connect the sensor connector.
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- ADD ENGINE COOLANT (See COOLANT )
- CHECK FOR COOLANT LEAKAGE (See ON-VEHICLE INSPECTION )
- PERFORM INITIALIZATION
- Perform initialization (see INITIALIZATION ).
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
