Section 1928 (Air Conditioning): Condenser: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

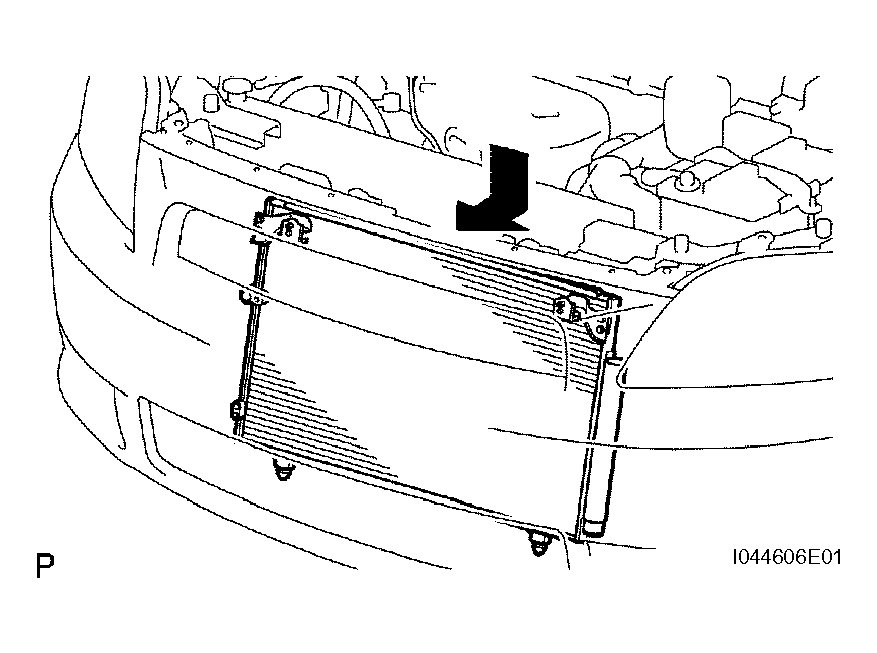

INSTALL COOLER CONDENSER ASSEMBLY
1. Install the cooler condenser.
Fig 1: Installing Cooler Condenser
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

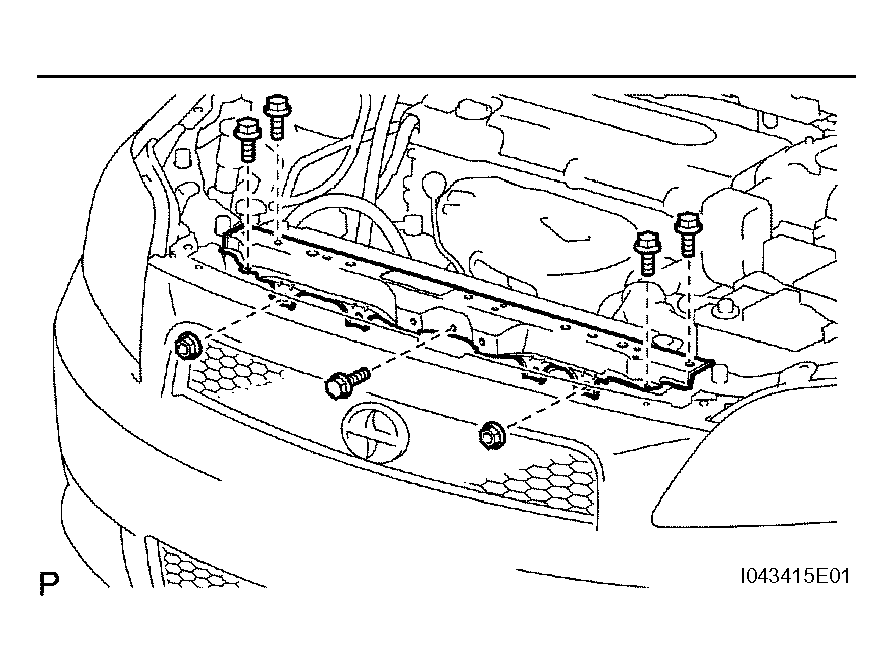

INSTALL RADIATOR SUPPORT UPPER
1. Install the radiator support upper with the 5 bolts and 2 nuts.
  Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)
INSTALL HIGH PITCHED HORN ASSEMBLY (See INSTALLATION )
INSTALL LOW PITCHED HORN ASSEMBLY (See INSTALLATION )

Fig 2: Installing Radiator Support Upper With Bolts And Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

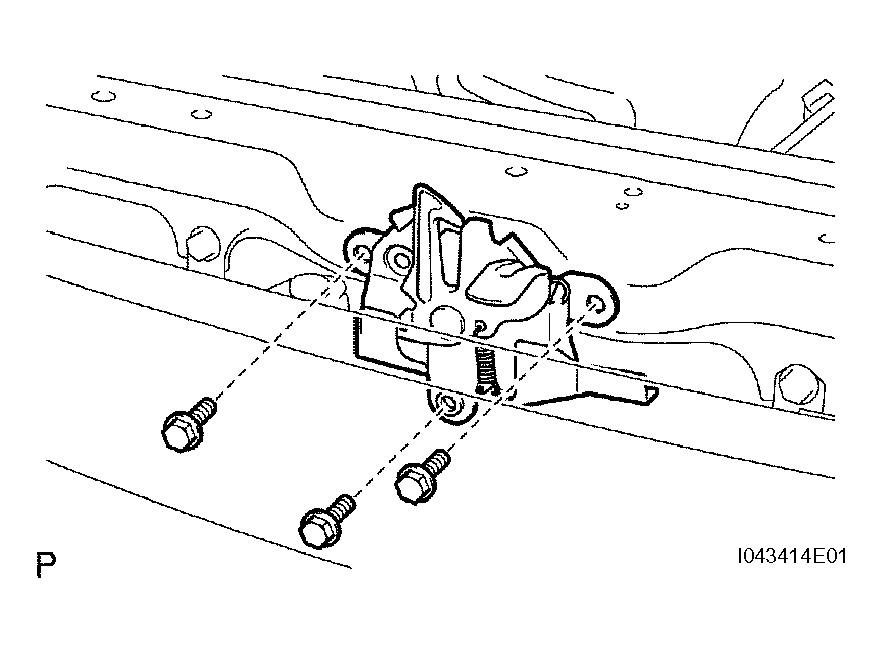

INSTALL HOOD LOCK ASSEMBLY
1. Install the hood lock with the 3 bolts.
Fig 3: Installing Hood Lock With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

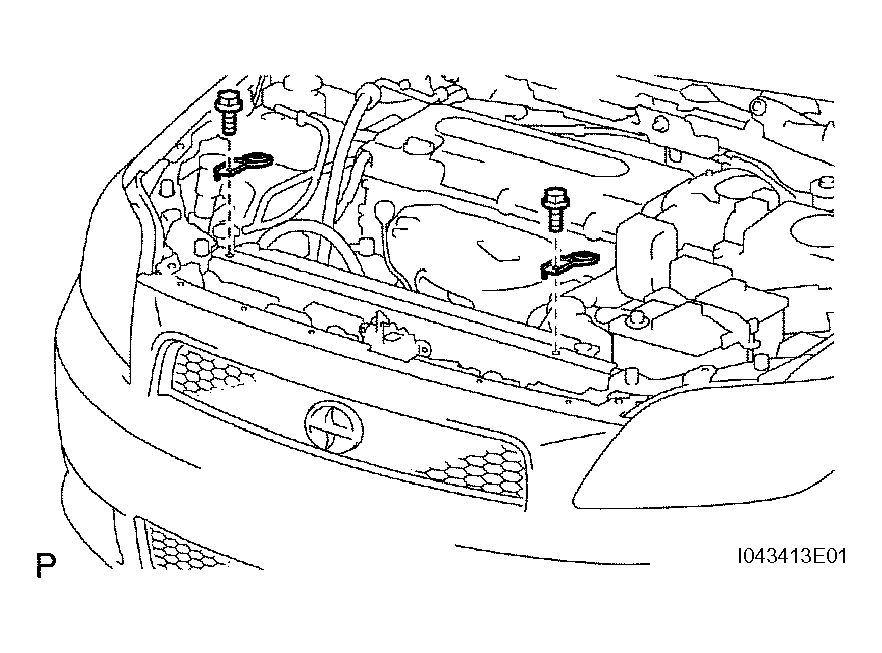

INSTALL RADIATOR SUPPORT UPPER BRACKET
1. Install the 2 brackets with the 2 bolts.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
Fig 4: Installing Brackets With 2 Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

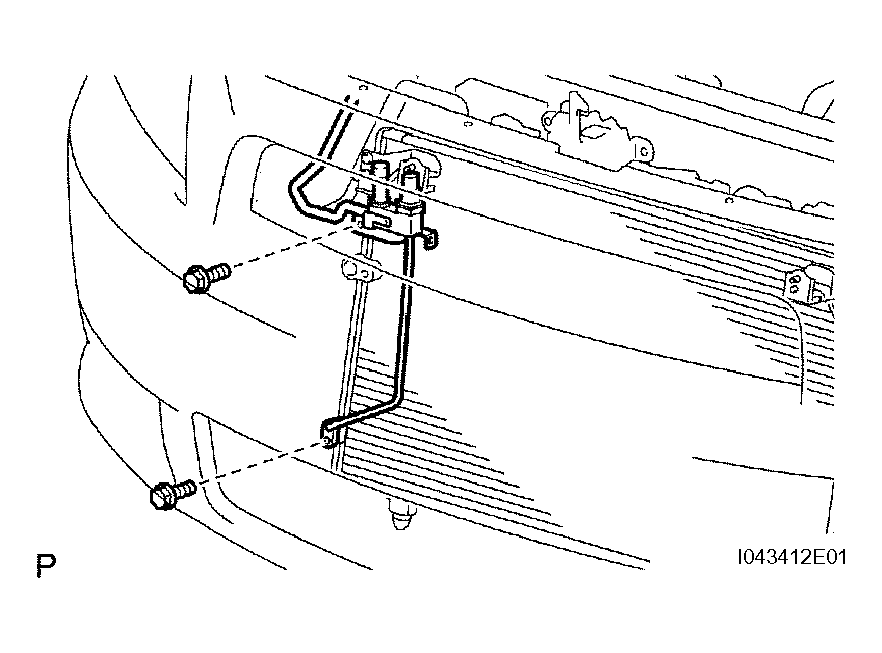

INSTALL COOLER REFRIGERANT LIQUID PIPE
1. Remove the attached vinyl tape from the pipe and the connecting part of the cooler condenser.
2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the pipe joint.
  Compressor oil: ND-OIL 8 or equivalent
3. Install the O-ring on the cooler refrigerant liquid pipe.
4. Install the cooler refrigerant liquid pipe on the cooler condenser with the 2 bolts.
  Torque: 5.4 N*m (55 kgf*cm, 47 in.*lbf)
Fig 5: Installing Cooler Refrigerant Liquid Pipe On Cooler Condenser With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

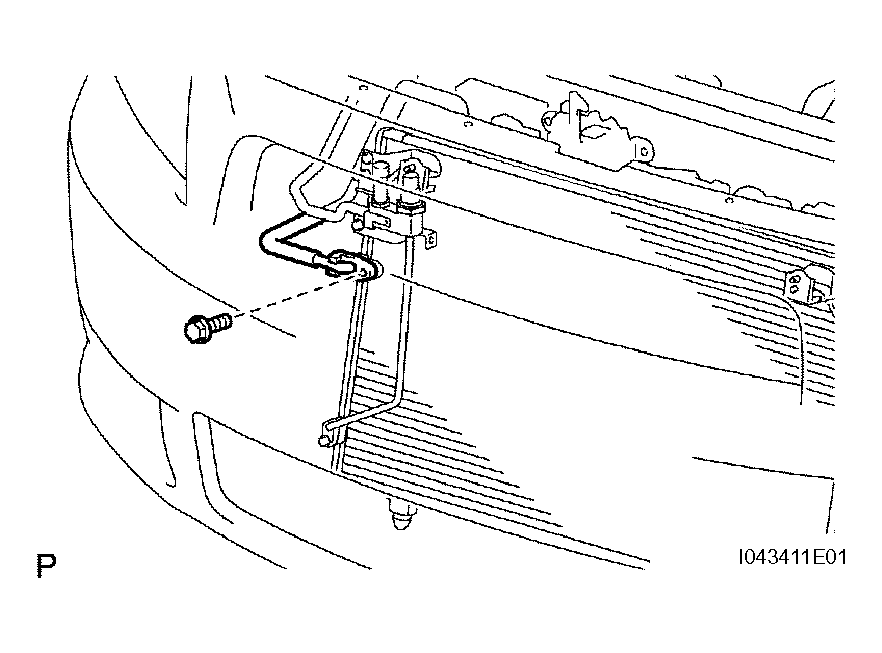

INSTALL NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
1. Remove the attached vinyl tape from the hose and the connecting part of the cooler condenser.
2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the hose joint.
  Compressor oil: ND-OIL 8 or equivalent
3. Install the O-ring on the cooler refrigerant discharge hose.
4. Install the cooler refrigerant discharge hose on the cooler condenser with the bolt.
  Torque: 5.4 N*m (55 kgf*cm, 47 in.*lbf)
Fig 6: Installing Cooler Refrigerant Discharge Hose On Cooler Condenser With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST HOOD SUB-ASSEMBLY (See ADJUSTMENT )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
CHARGE REFRIGERANT (See REPLACEMENT )
WARM UP ENGINE (See REPLACEMENT )
CHECK FOR LEAKAGE OF REFRIGERANT (See REPLACEMENT )
