Section 1928 (Air Conditioning): Condenser: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM (See  REPLACEMENT   )
  3. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
    1. Remove the bolt and disconnect the cooler refrigerant discharge hose from the cooler condenser.
    2. Remove the O-ring from the cooler refrigerant discharge hose.
      NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

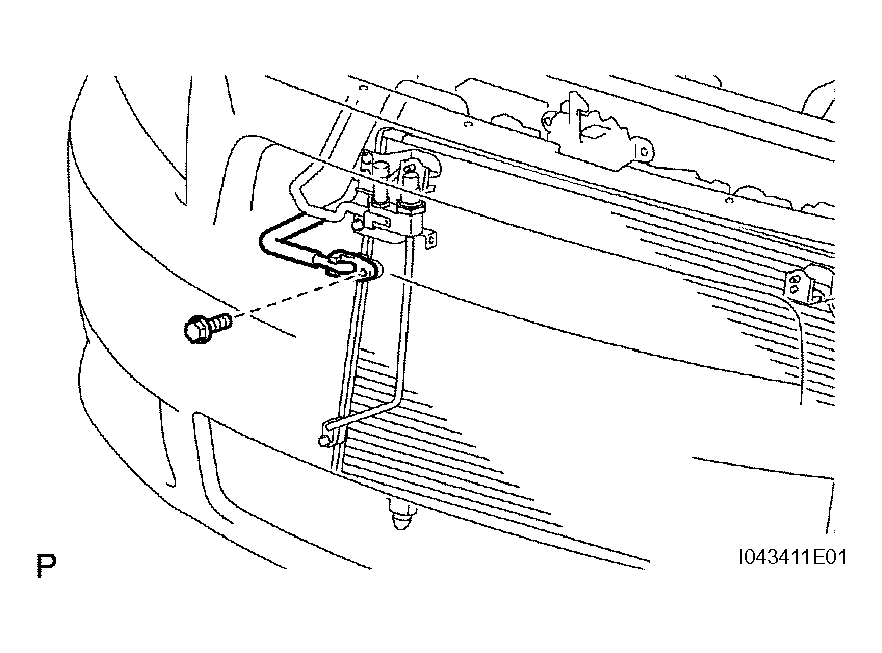

    Fig 1: Removing Bolt And Cooler Refrigerant Discharge Hose From Cooler Condenser
    G04223615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT COOLER REFRIGERANT LIQUID PIPE
    1. Remove the 2 bolts and disconnect the cooler refrigerant liquid pipe from the cooler condenser.
    2. Remove the O-ring from the cooler refrigerant liquid pipe.
      NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

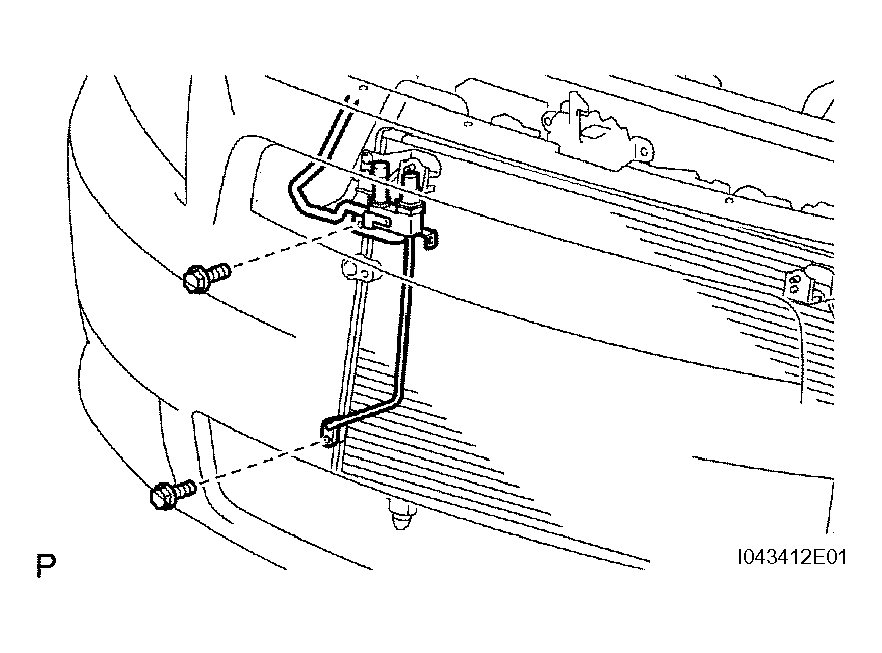

    Fig 2: Removing Bolts And Cooler Refrigerant Liquid Pipe From Cooler Condenser
    G04223616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE RADIATOR SUPPORT UPPER BRACKET
    1. Remove the 2 bolts and 2 brackets.

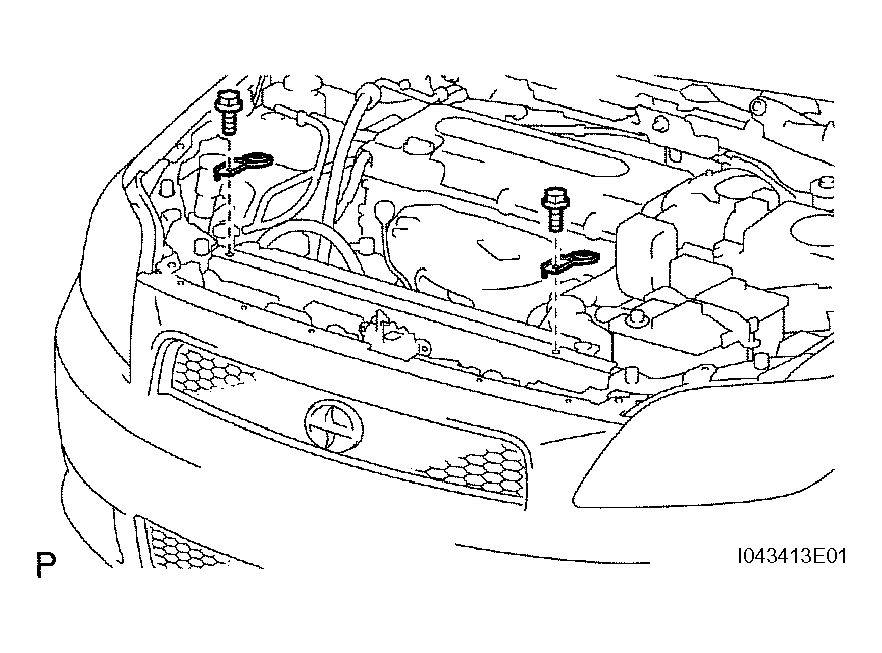

    Fig 3: Removing Bolts And Brackets
    G04223617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE HOOD LOCK ASSEMBLY
    1. Remove the 3 bolts and hood lock.
  7. REMOVE LOW PITCHED HORN ASSEMBLY (See  REMOVAL  )
  8. REMOVE HIGH PITCHED HORN ASSEMBLY (See  REMOVAL  )

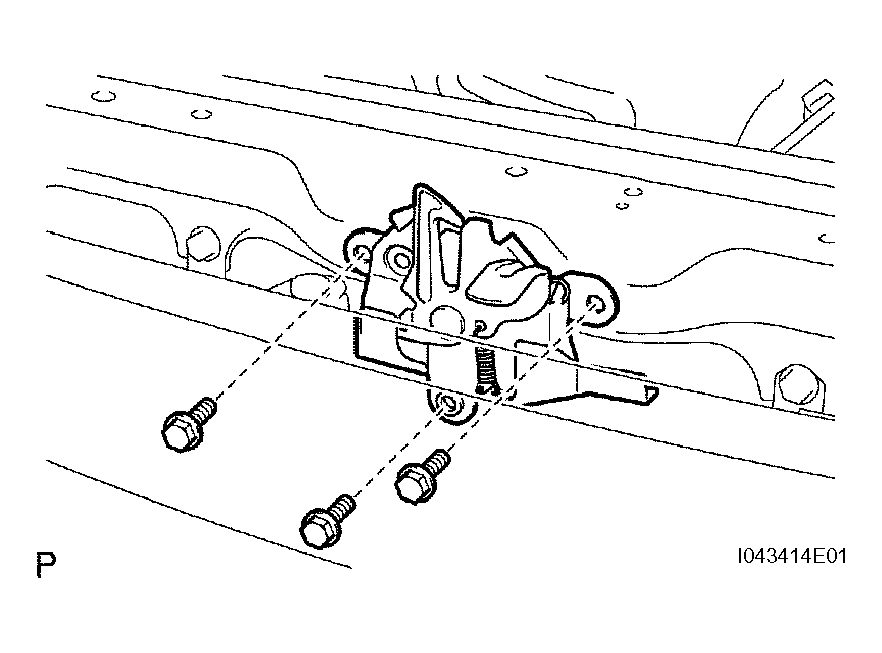

    Fig 4: Removing Bolts And Hood Lock
    G04223618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE RADIATOR SUPPORT UPPER
    1. Remove the 5 bolts, 2 nuts and radiator support upper.

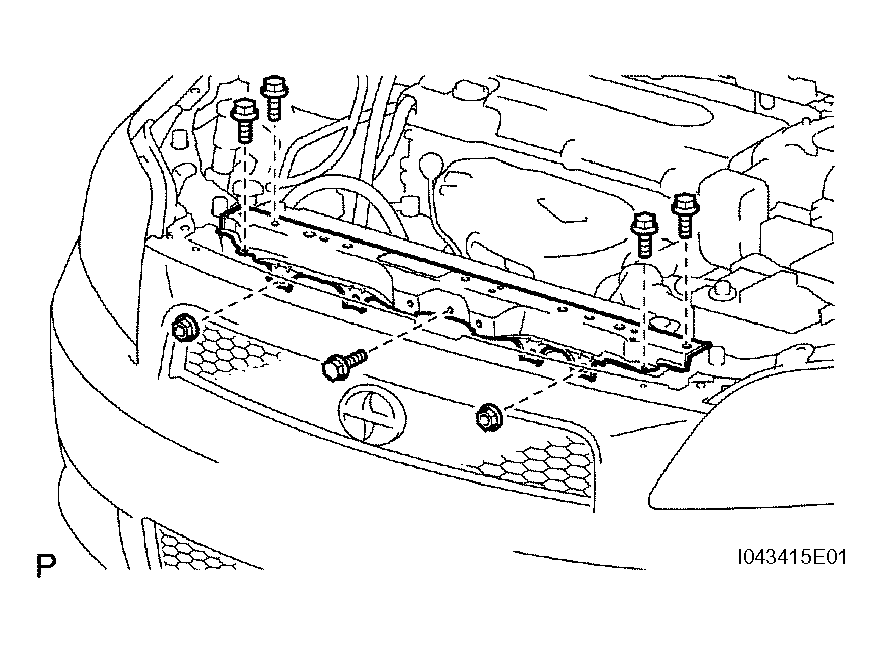

    Fig 5: Removing Bolts, Nuts And Radiator Support Upper
    G04223619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE COOLER CONDENSER ASSEMBLY
    1. Remove the cooler condenser.

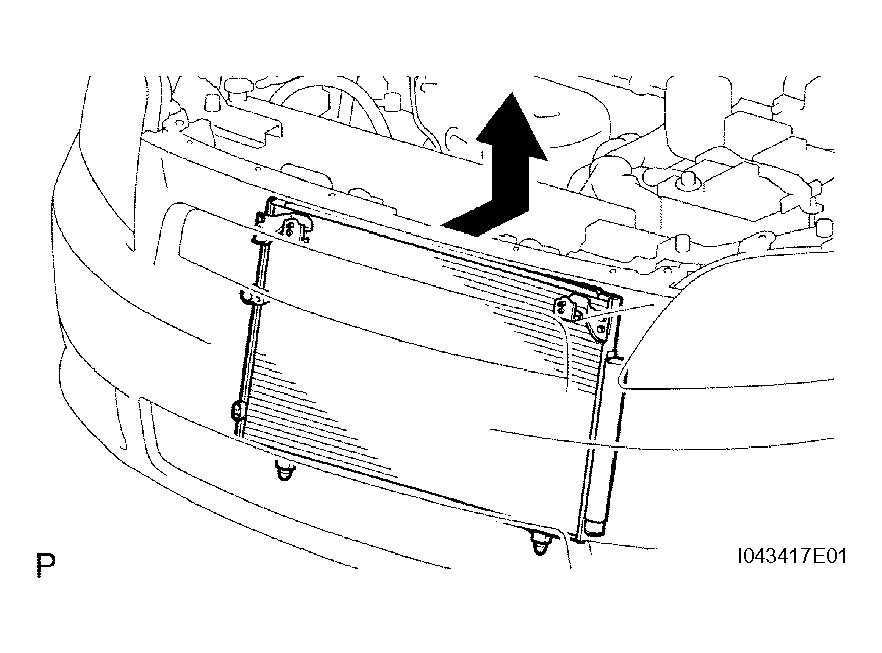

    Fig 6: Removing Cooler Condenser
    G04223620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
