Heater Control Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CENTER CLUSTER MODULE KNOB

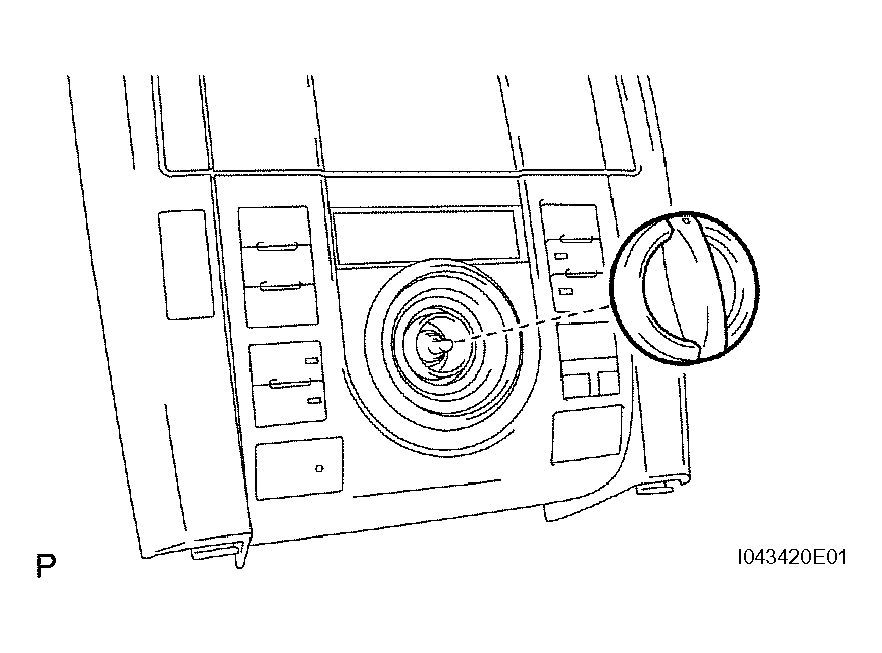

1. Remove the center cluster module knob.
Fig 1: Removing Center Cluster Module Knob
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEATER CONTROL BASE LOWER
1. Remove the 6 screws.

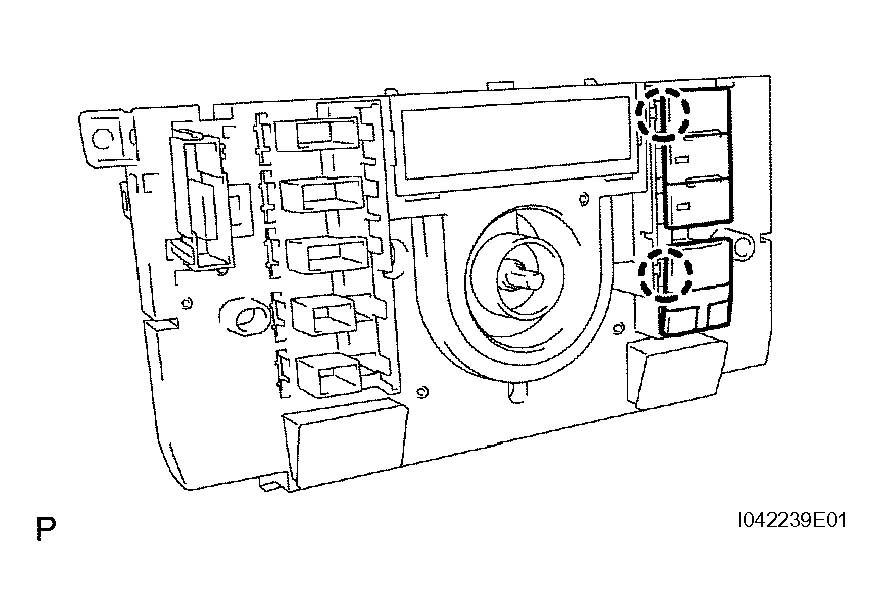

2. Detach the 2 claws and remove the heater control panel.

  Fig 2: Removing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

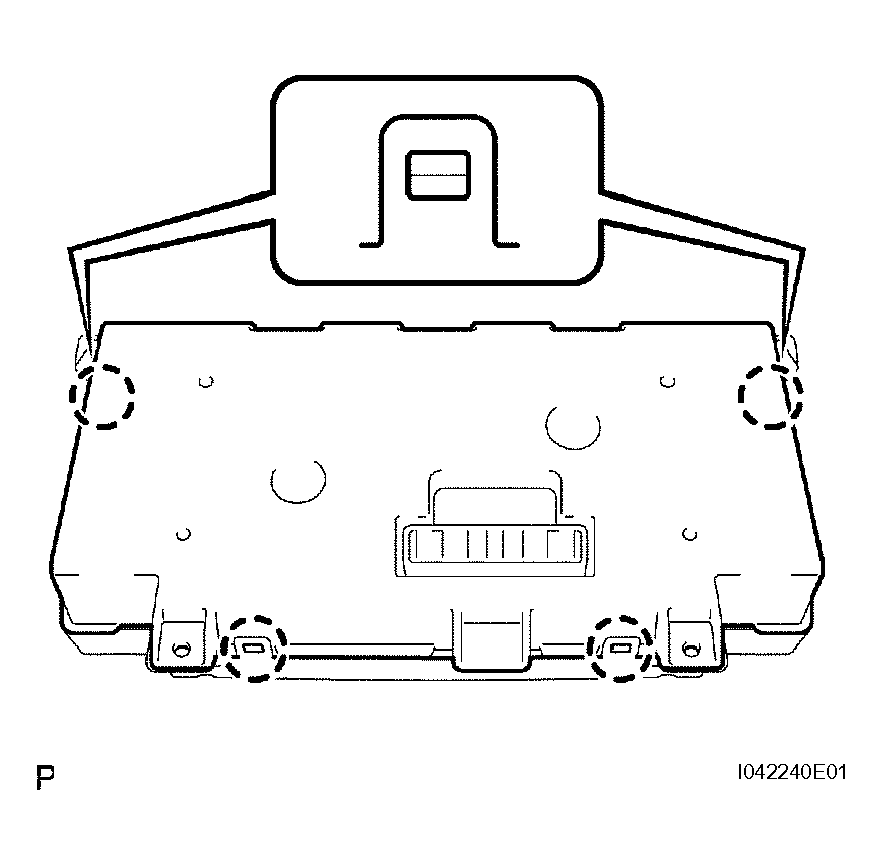

3. Detach the 4 claws and remove the heater control base lower.
Fig 3: Detaching Claws And Removing Heater Control Base Lower
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY

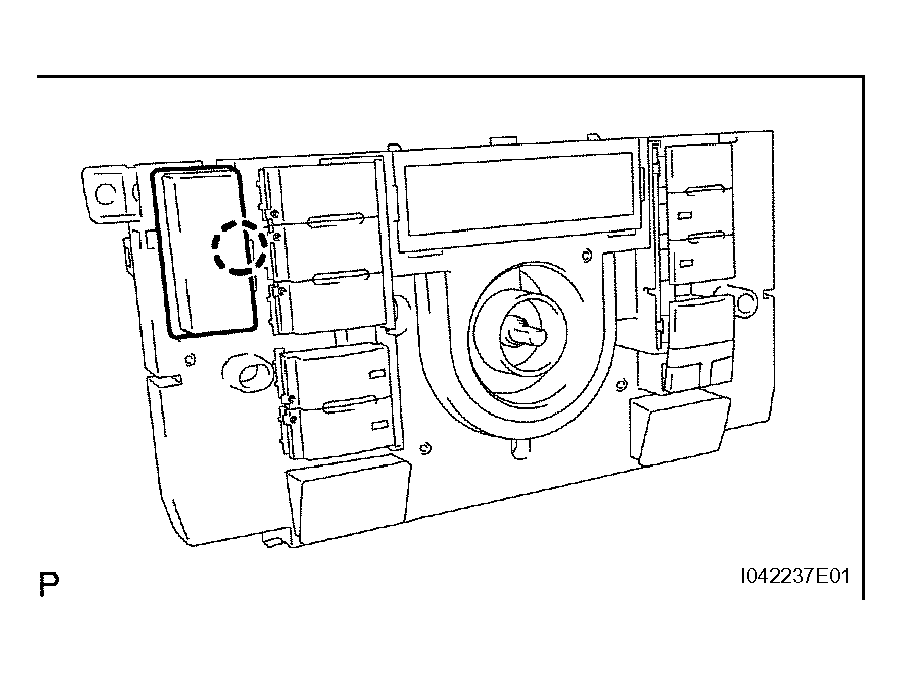

1. Detach the claw and remove the knob.

  Fig 4: Detaching Claw And Removing Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

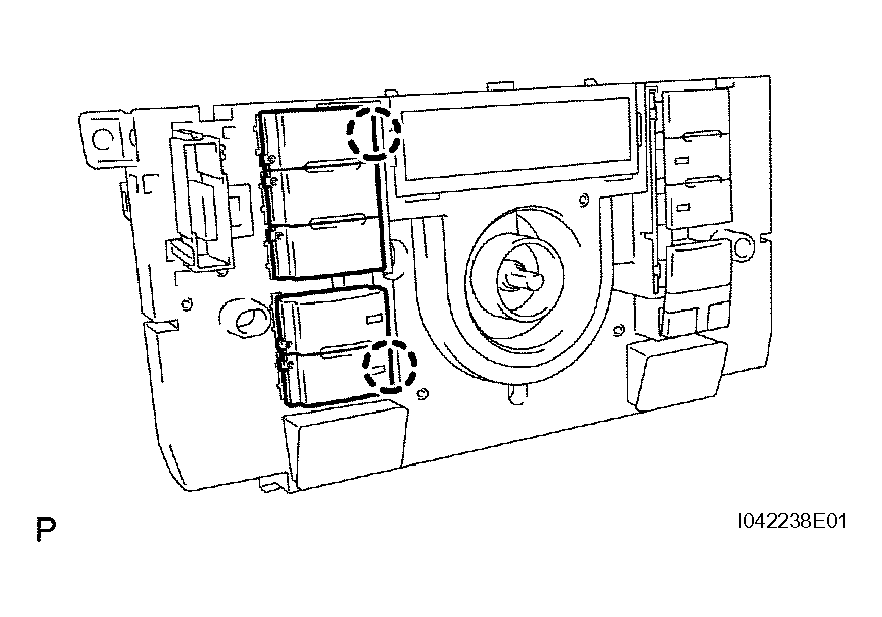

2. Detach the 2 claws and remove the knob.

  Fig 5: Detaching Claws And Removing Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Release the 2 claws and remove the knob.
Fig 6: Releasing Claws And Removing Knob
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
